Panoramic IP Cameras

Plan Your Deployment

Ceiling height and mounting position alignment
Blind-spot reduction and full-room coverage planning
Image dewarping and VMS compatibility
Bitrate and storage impact of high-resolution panoramic streams
PoE power and network throughput requirements

Showing Results for Panoramic IP Cameras

Compare

Out of stock
ACTi

SKU: B64

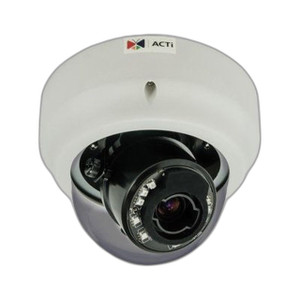

ACTi B64 3MP Indoor Zoom Dome Camera
Special Order · Usually Ships in 2-3 Weeks

$1,669.00 $1,202.99 Save $466.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 02833-001

Axis M4317-PLR 6MP Panoramic Vandal-Resistant IR Dome - 02833-001

6MP panoramic dome with 360° coverage and IR for single-camera deployments
- 2160×2160 @ 50/60 fps with 182° H&V FOV eliminates blind spots in large spaces
- Lightfinder + 0.16 lux sensitivity captures color detail in near-darkness without external lights
- IK10 vandal rating and PoE power under 13W in weatherproof dome for outdoor mounting
In stock · Usually Ships Same Business Day

$804.00 $779.99 Save $24.01

Add to Cart
The item has been added
Compare

Out of stock
Axis

SKU: 02834-001

Axis M4318-PLR 12MP Panoramic Dome Camera - 02834-001

12MP panoramic fisheye dome for transit with 360° coverage from one lens
- 182° horizontal and vertical field of view captures entire bus interior in single frame
- 12MP resolution (2992×2992) with Forensic WDR for passenger ID and incident detail
- PoE powered, IP66/IK10 rated, IR 15–25m range optimized for vehicle interiors
Special Order · Usually Ships in 2-3 Weeks

$984.00 $953.99 Save $30.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 02635-001

Axis P3738-PLE 32MP 4K Panoramic Outdoor Dome Camera - 02635-001

360° panoramic dome with 32MP four-sensor array and AI analytics
- Four synchronized 8MP sensors capture full 360° coverage without blind spots
- Lightfinder down to 0.19 lux color + OptimizedIR 850nm for day/night imaging
- Varifocal 3.18–8.12mm remote zoom per quadrant with IP66/IK09 outdoor rating
In stock · Usually Ships Same Business Day

$2,079.00 $2,016.99 Save $62.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 02897-001

Axis P3747-PLVE 4x5MP Outdoor Panoramic Camera - 02897-001

360° panoramic outdoor camera with four 5MP sensors and AI analytics
- 20MP total across four independent 5MP channels, each at 20 fps H.265
- 360° coverage with per-channel PTRZ and independently adjustable 850nm IR
- IP66/IP67-rated, PoE powered, AI object classification and behavioral detection
In stock · Usually Ships Same Business Day

$2,409.00 $2,336.99 Save $72.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 02898-001

Axis P3748-PLVE 32MP Panoramic Network Camera - 02898-001

32MP four-sensor panoramic camera, 360° coverage, IP66/IK10 outdoor
- Four 8MP sensors @ 12.5–15 fps per channel, H.265 compression
- Independent 850nm IR per sensor eliminates hot spots in night mode
- Varifocal 3.18–7.42mm lens, PoE++ powered, wall/ceiling/corner mount
In stock · Usually Ships Same Business Day

$2,629.00 $2,549.99 Save $79.01

Add to Cart
The item has been added
Compare

Out of stock
Axis

SKU: 02450-001

Axis P3827-PVE 7MP Panoramic Outdoor Dome PTZ Camera - 02450-001

180° panoramic dome with 360° pan and 7MP for perimeter coverage
- 7MP panoramic (3712×1856) at 30 fps with internal stitching, no barrel distortion
- 360° horizontal pan + PTZ zoom capability from single camera placement
- IP66/IK10 outdoor rated, PoE powered, -40°C to +55°C operating range
In stock · Usually Ships Same Business Day

$1,669.00 $1,618.99 Save $50.01
Compare

Add to Cart The item has been added
Axis

SKU: 02415-001

Axis P4705-PLVE 4MP Dual-Sensor Panoramic Camera - 02415-001

180° panoramic 4MP dual-sensor IP camera with independent zoom on each stream
- Two 2MP sensors at 1920x1080 each, 60fps simultaneous streams for wide coverage + detail
- Motorized 3.26–8.12mm varifocal lenses on both sensors for independent zoom control
- 360° IR with addressable LEDs, 0.15 lux color sensitivity, IP66/IK10 outdoor rated
In stock · Usually Ships Same Business Day

$1,069.00 $1,036.99 Save $32.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 02944-001

Axis P4708-PLVE 16MP Outdoor AI IR Panoramic Camera - 02944-001

Dual 4K panoramic camera with 360° IR and AI object detection
- 16MP total (2 × 8MP 4K sensors) through single IP stream for wide + zoomable
- 360° individually controllable IR LEDs with Lightfinder for full night coverage
- AI analytics: human/vehicle classification, forensic WDR, H.265 compression, IP67
In stock · Usually Ships Same Business Day

$1,489.00 $1,443.99 Save $45.01

Add to Cart
The item has been added
Compare

Out of stock
Axis

SKU: 03201-001

Axis Q3839-SPVE 8K Outdoor Panoramic Network Camera - 03201-001

8K 180° panoramic outdoor camera with AI analytics and stainless steel build
- 8K resolution across 180-degree panoramic field with horizon-straightened video
- Real-time AI object classification and edge detection at the camera
- Marine-grade stainless steel housing rated –50°C to 55°C
Special Order · Usually Ships in 2-3 Weeks

$2,899.00 $2,811.99 Save $87.01

Add to Cart
The item has been added
Compare

Out of stock
Axis

SKU: 02957-001

Axis Q6020-E 4x5MP Outdoor Panoramic Camera - 02957-001

360° panoramic 20MP outdoor camera with AI object tracking
- Four 5MP sensors capture full panorama without blind spots, H.265
- AI-powered object detection and auto-tracking sync with PTZ cameras
- IP66-rated, swappable wide-angle or telephoto lens options
Special Order · Usually Ships in 2-3 Weeks

$2,429.00 $2,355.99 Save $73.01

Add to Cart
The item has been added
Compare

Out of stock
Geovision

SKU: GV-FER5702-51

Geovision GV-FER5702 Tilting Wall Mount Bracket

Tilting wall mount bracket for Geovision cameras with adjustable vertical positioning
Special Order · Usually Ships in 2-3 Weeks

$86.99 $84.99 Save $2.00

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: HCF-8011RV

Hanwha HCF-8011RV 5MP Fisheye Camera

5MP fisheye covers 180° — replaces 2–3 fixed cameras
- 5MP resolution captures usable detail across full panoramic view
- 180° field of view eliminates blind spots in one compact unit
- IP66 sealed housing with IR night vision for outdoor 24/7 use
In stock · Usually Ships Same Business Day

$500.00 $347.99 Save $152.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: PNM-9031RV

Hanwha PNM-9031RV 15MP 360° Panoramic Outdoor Dome Camera

180° panoramic dome with 15MP quad-sensor stitching, no pan-tilt needed
- Four 5MP sensors stitch into single 15MP stream; 180° horizontal coverage
- IP66 weatherproof, IK10 vandal-rated dome for outdoor perimeter duty
- 30m IR night vision, PoE++ powered, motion and tampering detection built-in
In stock · Usually Ships Same Business Day

$2,700.00 $2,022.99 Save $677.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: TNM-P9022EPT3-Z

Hanwha TNM-P9022EPT3-Z 8MP Explosion Proof PTZ Camera

360° panoramic PTZ for ATEX Class I/II hazardous zones
- 8MP quad-sensor panoramic design captures full 360° coverage
- ATEX/IECEx explosion-proof rated for refineries and chemical plants
- IP66 weatherproof with PoE power for outdoor hazardous deployments
Special Order · Usually Ships in 2-3 Weeks

$14,500.00 $10,860.99 Save $3,639.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: TNM-XNF9013EPT3-Z

Hanwha TNM-XNF9013EPT3-Z Explosionproof Fisheye IP Camera

8MP explosionproof fisheye for Class I/II/III hazardous locations
- 209° horizontal fisheye with 8MP 3008×3008 resolution eliminates blind spots
- 120dB extreme WDR + AI noise reduction handles bright/dark industrial scenes
- cFMus/IECEx/ATEX certified for petrochemical, grain, pharma environments
Special Order · Usually Ships in 2-3 Weeks

$13,850.00 $9,627.99 Save $4,222.01

Add to Cart
The item has been added

What to Look For When Buying

The decisions that matter most before you spec.

Coverage Consolidation & Blind-Spot Elimination

A single panoramic camera can replace 2–4 traditional fixed cameras, cutting infrastructure, cabling, and NVR port requirements. However, this advantage only materializes if your network and storage can handle the bitrate load—see our guide on why NVRs fail under rated camera count to avoid oversubscription.

Fisheye Dewarping & Virtual PTZ Capability

Many panoramic models (especially Axis and Hikvision fisheye units) offer server-side or client-side dewarping and quad-view modes, allowing operators to 'zoom' into regions of interest without moving the camera. Verify that your VMS and NVR support the dewarping codec and can handle real-time transcoding—this impacts core network stability.

Bitrate & Storage Impact at Scale

Panoramic cameras at 4K or 5MP resolutions can consume 15–40 Mbps depending on codec (H.264 vs. H.265) and frame rate. Retention math for bitrate and storage becomes critical when deploying multiple units; undersizing storage or network throughput will degrade system reliability long before you hit the rated 30-FPS frame rate.

PoE Power Budget & Injector Requirements

Panoramic domes and fisheye cameras often draw 10–20W, especially if heating/cooling modules are present. Verify your PoE switch budget and consider PoE injection and power planning before deploying more than 6–8 units on a single switch—many facilities discover mid-deployment that their PoE switch fails after 18 cameras.

Image Distortion, Optics & DORI Distance

Panoramic cameras trade angular coverage for per-pixel resolution density. A 360° 4K camera has lower effective pixel density and DORI (identification distance) than a high-res fixed camera. Confirm facial or license-plate recognition distance requirements before selecting a model, especially in critical retail or parking environments.

Brand Selection & Ecosystem Integration

Leading panoramic manufacturers include Axis (Lightfinder, dynamic ranging), Hikvision (high-volume, cost-effective), Hanwha (PNM integration), Pelco (enterprise resilience), and Vivotek (compact form factors). Ensure your NVR, VMS, and access-control system validate the chosen brand's RTSP/ONVIF profile support—mismatches are a leading cause of surveillance system failure during incidents.

Technology Stack

The specs and acronyms that actually affect panoramic ip cameras performance.

Panoramic / Fisheye Lens Optics

Panoramic cameras use ultra-wide lenses (typically 150–220° field of view) to capture expansive horizontal coverage. Fisheye designs deliver 180–190°+ but introduce barrel distortion, which VMS software corrects via dewarping. Understand the trade-off between raw angular coverage and dewarped image sharpness before committing to a deployment.

Dewarping (Software & Real-Time)

Fisheye and ultra-wide sensors produce barrel-distorted rectangular output. Dewarping algorithms (CPU or GPU-based) correct this in real time on the camera, NVR, or VMS. High-volume dewarping can overload an NVR core—budget CPU resources or confirm hardware acceleration support before deploying.

Codec Selection (H.264 vs. H.265 HEVC)

Standard H.264 is broadly compatible but consumes higher bitrate for panoramic 4K. H.265/HEVC halves bitrate but requires compatible NVR/VMS and increases decoding load. For large multi-camera installations, H.265 is essential to avoid storage throughput failure.

Resolution & Mega-Pixel Density

Panoramic models range from 2MP to 5MP+ (some 8K experimental units exist). Higher resolution spreads pixel density over a wider angle, reducing per-zone identification range. For high-DORI applications (facial ID, LPR), favor fixed high-res cameras alongside a single panoramic wide-shot unit rather than a panoramic-only setup.

PoE+ and Power Consumption

Most panoramic domes and dome heaters require PoE+ (95W IEEE 802.3at) or High-PoE (95–240W proprietary). Check total wattage: a heated panoramic dome with IR and dewarping can exceed 25W. Infrastructure planning and switch capacity validation are essential before deployment.

Wide Dynamic Range (WDR) & Low-Light Performance

Panoramic sensors in high-glare environments (parking lots with sunlight edges) benefit from WDR to prevent washout. Some units (e.g., Axis Lightfinder) offer scene-dependent WDR and optimized low-light capture, though 4K cameras can struggle at night if bitrate or frame rate is throttled to maintain frame count.

Typical Deployment Scenarios

Parking Lot Coverage – 1 Panoramic + Network Backbone

A mid-size 5-acre parking lot deploys one Axis or Hikvision 360° 4K panoramic camera at a central pole, eliminating 4–5 traditional fixed units. Network: fiber uplink to a backbone PoE+ switch and NVR. Storage: 4–6 TB NAS for 7-day 15-FPS H.265 retention. Power: dedicated PoE+ injector (95W) to handle heater (winter) and IR load.

Retail Floor – Hallway + Back-Office Interior Panoramic Pair

A 15,000 sq. ft. retail space installs one Hanwha or Vivotek 180° panoramic dome in the main aisle and one 360° fisheye in the stockroom. Each camera transmits H.265 at 4MP, 15 FPS (dewarped by VMS for quad-zone view). NVR: 2–3 ports dedicated; managed PoE switches with UPS backup. Storage: 8 TB for 14-day retention.

Airport / Transit Hub – 6 Panoramic + Edge Recording

A large indoor terminal installs six Pelco or Axis panoramic domes across concourses to replace 18+ fixed cameras. Each 5MP unit records at 10 FPS H.265 to local edge NVR appliances; central NVR ingests summary streams for incident review. Network: redundant Gigabit core; PoE budget = 150W total (6 × 25W). Storage: 20+ TB with off-site replication for compliance.

School Campus Multi-Building – Fisheye + Fixed-Cam Hybrid

A K–12 campus deploying per design best practices uses three Hikvision 4MP 180° panoramic fisheye cameras in gymnasiums and cafeteria (wide coverage, dewarped to 4 virtual zones per unit) paired with fixed 2MP cameras at entry points for high-DORI facial identification. Central NVR (16 ports), core switch (PoE 240W budget), 16 TB SAN for 30-day retention.

Frequently Asked Questions

What's the difference between a 360° panoramic camera and a 180° model?

A 360° camera captures a full circle from one mounting point, ideal for open warehouses, parking lots, or atriums. A 180° unit covers a half-circle (typically the space in front of the mounting surface) and is better suited to hallways and linear retail floors. 180° cameras usually have lower distortion and higher per-pixel definition in the captured area.

Do panoramic cameras replace traditional fixed surveillance entirely?

Panoramic cameras are excellent for wide-area coverage reduction but less optimal for high-DORI tasks (facial ID, license-plate recognition) due to pixel-density trade-offs. Best practice is a hybrid: one or two panoramic units for situational awareness and coverage consolidation, paired with fixed high-resolution cameras at critical entry points for identification-grade detail.

What's the typical bitrate for a 4K panoramic camera, and how does it affect storage?

A 4K (4MP) panoramic camera typically ranges from 15–35 Mbps depending on codec (H.264 vs. H.265) and frame rate. H.265 halves bitrate compared to H.264. At 20 Mbps and 7-day retention, you'll need approximately 12 TB of storage. See retention math for bitrate and storage to plan accurately.

Can a panoramic fisheye camera provide multiple independent video streams?

Yes. Many fisheye models (especially Axis and Hikvision units) support virtual PTZ (vPTZ) and quad-view modes, allowing the VMS to extract up to four independent dewarped rectangular feeds from one sensor. This effectively replaces 2–3 fixed cameras, but requires sufficient NVR decoding capacity and network bandwidth.

What PoE power budget should I allocate for panoramic cameras?

Most panoramic domes consume 10–25W under normal operation; add 5–10W if heating, IR, or intensive dewarping is active. A single heated outdoor panoramic unit can draw 30–40W at peak. Plan PoE+ (95W) per camera and confirm your switch total budget; see PoE budget planning to avoid mid-deployment power failures.

Which brands offer the best panoramic camera options for integrators?

Leading choices include Axis (Lightfinder low-light, excellent dewarping), Hikvision (cost-effective, broad model range), Hanwha (strong PNM management), Pelco (enterprise support, resilience), and Vivotek (compact, modular designs). Choose based on your VMS ecosystem, PoE infrastructure, and DORI requirements.

Plan Your Deployment

Showing Results for Panoramic IP Cameras

ACTi B64 3MP Indoor Zoom Dome Camera

Axis M4317-PLR 6MP Panoramic Vandal-Resistant IR Dome - 02833-001

Axis M4318-PLR 12MP Panoramic Dome Camera - 02834-001

Axis P3738-PLE 32MP 4K Panoramic Outdoor Dome Camera - 02635-001

Axis P3747-PLVE 4x5MP Outdoor Panoramic Camera - 02897-001

Axis P3748-PLVE 32MP Panoramic Network Camera - 02898-001

Axis P3827-PVE 7MP Panoramic Outdoor Dome PTZ Camera - 02450-001

Axis P4705-PLVE 4MP Dual-Sensor Panoramic Camera - 02415-001

Axis P4708-PLVE 16MP Outdoor AI IR Panoramic Camera - 02944-001

Axis Q3839-SPVE 8K Outdoor Panoramic Network Camera - 03201-001

Axis Q6020-E 4x5MP Outdoor Panoramic Camera - 02957-001

Geovision GV-FER5702 Tilting Wall Mount Bracket

Hanwha HCF-8011RV 5MP Fisheye Camera

Hanwha PNM-9031RV 15MP 360° Panoramic Outdoor Dome Camera

Hanwha TNM-P9022EPT3-Z 8MP Explosion Proof PTZ Camera

Hanwha TNM-XNF9013EPT3-Z Explosionproof Fisheye IP Camera

Browse by Product Family

What to Look For When Buying

Technology Stack

Typical Deployment Scenarios

Top Brands for Panoramic IP Cameras

Frequently Asked Questions

Related Categories

Engineering Reading
