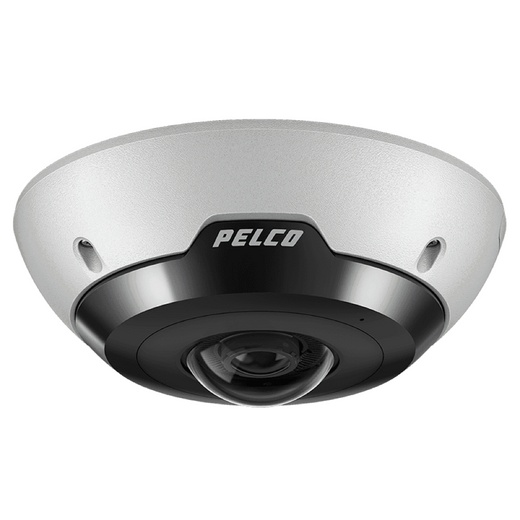

Pelco SRXF3-12360-ERS 12MP Fisheye IR Camera
The Pelco SRXF3-12360-ERS is a 12MP panoramic fisheye camera engineered for complete 360° perimeter monitoring from a single ceiling or wall mount. Integrated 850nm IR illumination delivers continuous day-night operation without external lighting infrastructure. This topology replaces three to four traditional fixed cameras while maintaining 3840×2160 resolution for identification-grade detail in virtual PTZ crops and forensic review.
Key Features
- 12MP Panoramic Fisheye: 3840×2160 resolution with 360° field of view eliminates blind spots and reduces camera count on large perimeter projects.
- Integrated IR Illumination: 850nm IR with day/night switching ensures surveillance continuity in zero-ambient-light conditions (unlit parking lots, nighttime perimeter). No external lighting rigs required.
- Pelco Smart Analytics: 8 configurable behavior detection modes (loitering, intrusion, directional crossing, etc.) operate across the full 360° panorama, reducing false alerts and alert fatigue.
- PoE+ Power: Class 3 PoE+ (802.3at) draws <90W, compatible with standard PoE+ switches; simplifies power distribution vs. separate PSU installations.
- Rugged Outdoor Rating: IP66 sealing, NEMA 4X enclosure, IK10 impact resistance — withstands hail, vandalism, and temperature swings from -40°C to +60°C without performance degradation.
- H.264 Compression: Standard H.264 codec with WDR (up to 83dB) optimizes bandwidth for 24/7 panoramic recording; H.265 fallback supported on compatible NVR platforms.
- ONVIF Profile S & T: Multi-platform compatibility (Genetec, Milestone, Avigilon, ExacqVision, Pelco VideoXpert); streaming metadata and Profile T H.265 enable codec flexibility.
- Secure Connectivity: HTTPS encryption, microSD card expansion, and 4GB onboard flash for local buffering during network interruptions.
Panoramic fisheye cameras excel where traditional fixed cameras create coverage gaps or require multiple mounts. The SRXF3-12360-ERS consolidates perimeter surveillance at parking entrances, warehouse loading docks, transportation hubs, and large open facilities. The integrated IR eliminates the operational and capex burden of external flood lighting, particularly on sites where power availability is constrained or where night-time glare is a security concern (retail storefronts, vehicle lot perimeters). At 12.5 fps full-resolution capture, it maintains frame rate sufficiency for vehicle identification and gait analysis in forensic workflows.
WDR up to 83dB handles backlit scenes common in outdoor deployments — sunlit entry doors, vehicle headlights, and reflective surfaces. This prevents image washout in high-contrast scenarios while preserving shadow detail. The 2.7mm f/2.5 lens is fixed (no motorized zoom), meaning post-acquisition crop-and-zoom (virtual PTZ) via NVR client or VMS timeline review replaces real-time pan-tilt control. For installations requiring active PTZ capability, traditional pan-tilt-zoom domes are more appropriate; the fisheye topology trades active camera control for installation simplicity and reduced infrastructure.
Mounting flexibility — wall, ceiling, pole, pendant, corner — accommodates varied building profiles. The 153.5mm × 153.5mm × 71.3mm footprint and 1.0kg weight (with wall mount) install cleanly on most structural points without reinforcement. Ceiling-mounted orientation delivers natural 180° overhead coverage of below-deck areas (parking decks, loading bays) with supplementary 180° fisheye view of vertical surfaces. Microphone support enables audio verification (vehicle noise, alarm sounder presence) on two-way intercom deployments.
Compliance: 5-year manufacturer warranty, IP66/NEMA 4X enclosure, IK10 impact rating. ONVIF Profile S/T ensures integration across heterogeneous VMS fleets. No specific NDAA or Section 889 restrictions noted in public documentation; verify with Pelco for critical government or infrastructure projects.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Sarix Fisheye 3 series across parking lots, loading docks, and perimeter fences where a single camera consolidates coverage that would otherwise require three fixed domes or a moving PTZ. The 360° panorama eliminates dead zones — a critical operational win on sprawling outdoor sites. The integrated IR is the real differentiator here. On sites without reliable ambient lighting (unlit nighttime parking, rural logistics facilities), it removes the capex and maintenance burden of external flood arrays. We've seen facilities save $3k–$8k per camera location by eliminating pole-mounted lights, associated electrical runs, and seasonal bulb replacement cycles. The 12MP resolution is sufficient for vehicle plate identification and facial recognition crops — when paired with a VideoXpert or Milestone NVR and timeline-based virtual PTZ, integrators can deliver forensic-grade evidentiary footage without motorized zoom complexity.
The tradeoff is frame rate and real-time control. At 12.5 fps full resolution, this camera is optimized for 24/7 continuous recording and asynchronous forensic review, not live active surveillance with operator pan-tilt control. If your end user expects to 'follow' a subject across the panorama in real time, you need a PTZ dome, not a fisheye. We've also encountered integrators surprised by the 12.5 fps ceiling — bandwidth planning on 16+ camera deployments can be tight if the NVR is configured to record full frame rate across all channels. Idle Scene mode and Smart Codec technology (both supported) mitigate this by dynamically lowering bitrate in static scenes, but clarify expectations with your NVR vendor before sizing the network switch and storage.
Technical Highlights:
- WDR 83dB: Handles extreme backlit outdoor scenarios (vehicle headlights, sun glint off glass) without external neutral-density filters. In practice, this means you can mount the camera on a south-facing wall and still capture usable shadows and highlights in forensic footage, reducing post-incident timeline reconstruction work.
- 12MP @ 3840×2160: Delivers 4× the pixel count of 2MP/1080p fixed domes. Virtual PTZ crops maintain 1080p+ resolution for plate reading and facial identification — a forensic asset that older lower-res fisheyes cannot match. Combined with 360° coverage, this consolidates multiple camera feeds into a single NVR stream.
- 850nm IR + Day/Night: Passive IR (no external flood) reaches effective illumination distance ~20–30 meters in zero-light conditions. Adequate for parking-lot aisles and building perimeters; not sufficient for long-range vehicle tracking on highway or 100m+ fence lines. Plan external IR supplementation if your coverage distance exceeds 40m.
- PoE+ Class 3: Standard power-injector switches support this camera without custom PSU infrastructure. On mixed-camera deployments (domes + turrets + fisheye), sizing a PoE+ switch for the highest-draw unit is simpler than managing multiple PSU circuits.
- Pelco Smart Analytics (8 behaviors): Loitering, intrusion, directional crossing, and object-removal logic operate across the entire 360° panorama. Edge intelligence filters raw panoramic video into actionable alerts, reducing SOC alert fatigue vs. passive recording-only deployments.
- MicroSD Expansion + 4GB Flash: Local recording buffer survives network outages (NVR disconnect, switch failure). On sites with intermittent WAN connectivity or unreliable Ethernet, this is a critical feature; evaluate microSD endurance ratings (write cycles) before deploying on high-bitrate continuous-record scenarios.
Deployment Considerations:
- Frame rate ceiling at 12.5 fps full resolution means real-time operator PTZ control is unavailable — integrators must educate end users upfront that this is a recording and forensic-review camera, not a live chase tool. Virtual PTZ via NVR client timeline satisfies most use cases, but live-view operators expecting motorized pan-tilt will be disappointed.
- Panoramic fisheye imagery requires dewarping on the NVR or client side for intuitive playback. Ensure your VMS (Genetec, Milestone, VideoXpert) has fisheye dewarping plugins; some third-party VMS platforms do not natively support panoramic unrolling, forcing manual client-side tools.
- IR range ~20–30m in zero-light conditions; outdoor sites with perimeter fence lines >40m from the camera require supplementary external IR or increased light sensitivity (gain boost) with corresponding image noise trade-off. Test IR throw distance during site survey before committing to single-camera coverage.
- Mounting orientation matters: ceiling-mount orientation provides natural 180° overhead panorama plus 180° side-wall coverage; wall-mount orientation is awkward for true 360° monitoring unless the camera is corner-mounted or you accept partial FOV loss. Confirm mounting geometry during design phase.
- WDR 83dB is effective but not forensic-grade (120dB+) — extreme backlit scenarios (camera pointed directly into setting sun) may still clip highlights or crush shadows. Use external shade or reposition the camera if evidentiary backlit footage is a hard requirement.
The SRXF3-12360-ERS is the right choice for integrators consolidating multi-camera perimeter coverage and eliminating external lighting infrastructure. It's not ideal for active live-view surveillance or sites requiring >40m night-vision range. For end users with budget-constrained perimeter projects or unlit outdoor facilities, this camera delivers forensic-grade resolution and 360° coverage from a single mount. Explore the full Pelco catalog for complementary outdoor and interior camera options.
