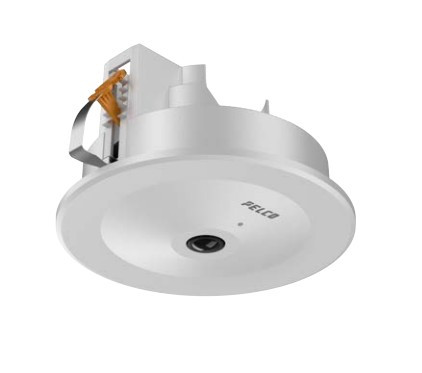

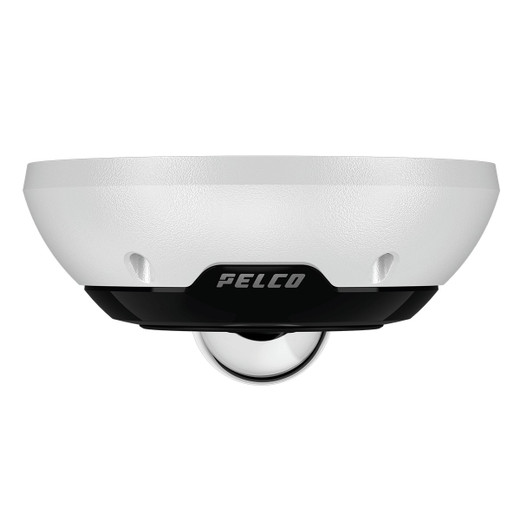

Pelco SRXF3-8360-ERS 8MP 360° Fisheye IR Camera
The SRXF3-8360-ERS is a single-point ceiling-mounted panoramic fisheye camera from Pelco's Sarix Fisheye 3 series designed to eliminate coverage blind spots in open outdoor areas. At 8MP resolution (3264 x 2448), it delivers the detail density needed to recognize faces and read license plates across the full 360° field of view—a genuine advantage over deploying three or four directional cameras to cover the same perimeter. The integrated 360° IR illumination means you're not dependent on ambient light or supplementary fixtures; the camera operates 24/7 without adding external lighting infrastructure.
Key Features
- 8MP Panoramic Capture (3264 x 2448): Delivers detail across the full 360° field of view, enabling forensic-quality identification across parking lots, courtyards, and transit areas without relying on multiple overlapping cameras.
- 360° Integrated IR Illumination: Full-spectrum IR coverage eliminates dark zones and the need for supplementary outdoor lighting. Your install cost drops because you don't need additional light fixtures or electrical runs to perimeter areas.
- PoE+ Powered (Class 3): Single Ethernet run powers the camera and carries video data. No separate 24VAC or 12VDC supply needed, which simplifies cabling in outdoor environments and reduces power distribution complexity.
- IP66/IP67 Environmental Sealing with IK10 Impact Rating: IP66 handles direct rain and dust ingress; IP67 tolerates brief submersion. IK10 withstands physical impacts in high-traffic areas—parking structure vandalism and pole strikes won't crack the housing or degrade the optics.
- De-warping and Virtual PTZ: Fisheye images are mathematically corrected into rectilinear (square) views or multi-pane layouts on playback. Virtual PTZ (digital zoom and pan without motor hardware) lets operators zoom into regions of interest during investigation without sacrificing the original 360° recording.
- Pelco Smart Analytics with 8 Configurable Behaviors: On-camera intelligence detects loitering, intrusion, object removal/appearance, and crowd density. Reduces false alarms and alert fatigue compared to passive motion detection alone.
- H.264 Video Compression: Reduces storage footprint by 30–50% compared to MJPEG, relevant when storing 24/7 footage. MicroSD card slot enables local edge recording backup if your primary NVR loses connectivity.
- ONVIF Profile S and T Compliance: Integrates with VMS platforms that support standard ONVIF discovery and streaming. No proprietary software lock-in; you can deploy this alongside equipment from other vendors.
- Operating Range −40°C to +60°C: Glass doesn't fog and circuitry doesn't drift in extreme cold or heat, making this viable for outdoor storage yards, rooftop perimeter deployments, and unheated transit shelters in arctic and subtropical climates.
- 5-Year Manufacturer Warranty: Covers defects in materials and workmanship. Typical for professional-grade outdoor cameras in the mid-to-enterprise segment.
When to Choose This Model vs. Alternatives
Choose the SRXF3-8360-ERS if: You need complete 360° coverage from a single ceiling point, 24/7 operation without supplementary lighting, and outdoor durability. Parking lots, courtyards, loading docks, and transit plazas are the primary use cases. The integrated IR and single-mount economics justify the cost over three separate directional cameras.
Consider the SRXF3-8360-ES (360° fisheye without IR) if your deployment site is well-lit 24/7 (such as a retail plaza with fixed architectural lighting). Dropping IR reduces power draw slightly and cost, but you lose 24-hour autonomous operation.
Consider the SRXF3-8180-ERS (180° hemispherical fisheye with IR) if you're mounting the camera at a wall rather than ceiling, or if you only need to cover a 180° arc (e.g., a single building facade or a T-junction in a parking lot). The tighter angle allows for higher resolution per degree of coverage if needed.
Integration & Compatibility
The SRXF3-8360-ERS connects via standard Gigabit Ethernet with PoE+ power inline. PoE+ switches rated for Class 3 consumption (minimum 30W per port) handle the power load. The camera advertises itself on the network using ONVIF, so discovery in systems like Milestone XProtect, Genetec, and Axis Camera Station is automatic. Video streams over RTSP or HTTP. Metadata (analytics events, motion) is delivered via ONVIF events, which most VMS platforms consume natively. Local recording to MicroSD provides failover if the NVR connection drops.
For outdoor storage planning, estimate roughly 500 GB to 1 TB per day of continuous 8MP H.264 recording, depending on scene complexity and motion. A 2 TB MicroSD card offers about 2 days of local edge backup.
Frequently Asked Questions
Q: What is the actual IR range of the SRXF3-8360-ERS?
A: The product evidence does not specify an exact IR illumination distance in meters or feet. Contact the manufacturer or your pre-sales engineer for precise throw distance under typical mounting heights (ceiling vs. wall) and target reflectivity assumptions.
Q: Can I use standard 802.3af PoE (15.4W) to power this camera?
A: No. The SRXF3-8360-ERS is rated PoE+ (Class 3), which requires a minimum of 30W per port. Standard 802.3af supplies 15.4W maximum and will not reliably power this model. Confirm your switch or injector is PoE+ (802.3at or higher) rated.
Q: Does the SRXF3-8360-ERS support H.265 (HEVC) compression?
A: No. The camera supports H.264 and does not list H.265 in the evidence. If storage efficiency is a critical constraint, consider this a permanent trade-off for the 360° panoramic benefit.
Q: Is the SRXF3-8360-ERS NDAA Section 889 compliant?
A: The product evidence does not mention NDAA or Section 889 compliance. If this is a procurement requirement, contact the manufacturer or your supplier to confirm eligibility.
Q: What VMS platforms does the SRXF3-8360-ERS integrate with?
A: Because it supports ONVIF Profile S and Profile T, it integrates with any ONVIF-compliant VMS platform, including Milestone XProtect, Genetec, Axis Camera Station, and others. Proprietary Pelco integration may offer deeper feature access in Pelco's own VMS if you deploy that ecosystem.
Q: Can I mount the SRXF3-8360-ERS on a wall instead of a ceiling?
A: The SRXF3-8360-ERS is designed for ceiling mounting to deliver its full 360° panoramic benefit. Wall mounting would reduce the effective field of view. For wall-mount applications, the SRXF3-8180-ERS (180° hemispherical) is the recommended variant.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SRXF3-8360-ERS is a ceiling-mount workhorse for outdoor perimeter and plaza surveillance. Where a traditional approach would require three overlapping turret or dome cameras to cover a parking lot or courtyard, this single fisheye eliminates that complexity and the associated cabling, power, and NVR channel overhead. The 8MP resolution is sufficient for facial and plate recognition across the entire 360° arc—a real point of differentiation over lower-resolution 360° cameras. The integrated IR is the practical decision-maker: you avoid the cost and maintenance headache of supplementary outdoor lighting infrastructure.
Technical Highlights:
- PoE+ Class 3 Power Delivery: Draws enough power that a standard 802.3af switch will starve it. Confirm your PoE+ infrastructure is Class 3 or higher (30W minimum per port). This eliminates excuses for separate power runs but requires discipline during commissioning.
- H.264 Only (No H.265): Storage footprint is 30–50% larger than H.265 would deliver. On a 90-camera enterprise deployment, that's meaningful capex for NVR storage. Accept it as a platform limitation, not a weakness.
- 12.5 fps at Full 8MP: Frame rate is moderate but sufficient for parking lot and plaza use cases where real-time responsiveness is not the primary driver. If you need higher frame rates for fast-moving subjects, look to a conventional camera with shorter shutter exposure, not this fisheye.
- IK10 Impact Rating: This is purpose-built for high-traffic outdoor areas. Pole strikes, thrown objects, and vandal impact will not crack the dome or degrade the optics. This matters in urban parking structures and transit stations.
Deployment Considerations:
- Ceiling Mounting is Mandatory: The 360° benefit evaporates if you wall-mount this camera. Do not attempt to deploy it as a wide-angle wall camera—the entire value proposition depends on a ceiling or high-wall pendant mount where it can see in all directions simultaneously.
- De-warping Adds VMS Load: Fisheye de-warping (conversion to rectilinear or multi-pane views) is performed on playback, not in real-time recording. Your VMS and client workstations must handle the math. On large systems, this can add latency or require client-side transcoding. Test de-warping performance in your specific VMS before full deployment.
- Edge Analytics Reduce False Alerts: The 8 configurable Smart Analytics behaviors (loitering, intrusion, object detection) are on-camera, not post-recorded. This means your NVR doesn't waste storage on alarm events that the camera has already filtered. Verify that your VMS properly consumes ONVIF events so you get the full benefit of that filtering.
Deploy the SRXF3-8360-ERS in large outdoor areas—parking lots, loading docks, outdoor plazas, transit shelters, building perimeter courtyards—where a single ceiling-mounted point delivers 360° coverage without blind spots. This is the right choice when coverage simplicity and 24/7 autonomous IR operation justify the cost trade-off against multi-camera directional approaches. Avoid it for hallways, corridors, or any indoor application where a recessed dome or turret would be more appropriate.
