UPS & Power Management
Uninterruptible power supplies and rack-mount power distribution for network and surveillance infrastructure. Online and line-interactive UPS models with SNMP management protect against outages and power quality issues.
Plan Your Deployment
- Calculate total VA/watt load from all connected networking and recording equipment
- Specify required battery runtime for graceful shutdown or ride-through
- Evaluate online vs. line-interactive topology for power quality needs
- Confirm rack-mount form factor and outlet count for your cabinet
UPS & Power Management — Engineering-Grade UPS & Power Management for Commercial Deployments
This category covers 4 working models of ups & power management sourced manufacturer-direct or through channel-direct US distribution. Build the rest of your system around the architectural choices below — compatibility, environmental rating, and lifecycle decisions made here propagate through every downstream component you specify.
What to Look For
UPS topology dictates power quality during normal operation and transfer behavior during failure. Standby (offline) units switch to battery on AC failure — cheapest, with brief transfer time acceptable for cameras and switches. Line-interactive units regulate voltage and absorb sags without going to battery, extending battery life. Double-conversion online UPS deliver clean, constantly-regenerated AC — required for sensitive analytical equipment and ideal for critical NVRs.
Runtime is a function of load (watts) and battery capacity (Wh). A 1000VA UPS at 500W load runs 5-8 minutes on internal batteries — enough for graceful shutdown but not extended operation. Extended battery packs add hours. Calculate actual runtime requirement based on average utility outage duration in your area and the device's recovery behavior on power restoration.
Form factor and outlet count drive rack-vs-tower choice and circuit-breaker sizing. Tower UPSs serve standalone NVRs or desktop workstations. 1U-4U rack UPSs serve data closets and rack-mounted equipment. Look at the input plug type (NEMA 5-15, L5-30, L6-30) and confirm the building circuit supports the UPS rating; over-large UPSs on under-sized circuits trip breakers during charging.
Network management cards (APC AP9640, Eaton X-Slot) provide SNMP monitoring, email alerts, and integration with VMS or facility management software. For critical sites, this is essential — silent UPS failure leaves you blind until the next outage exposes it. Schedule annual self-tests through the management interface and replace batteries every 3-5 years as a preventive measure.
Key Specs in This Category
| Spec | Available Options |
|---|---|
| IP Rating | IP20 |
| Connectivity | Wired |
| Power | AC/DC, PoE |
| Type | Power Supply |
Top Brands in This Category
Frequently Asked Questions
What size UPS do I need for an 8-camera NVR?
For an 8-camera NVR drawing about 100-150W and a small PoE switch at 200W, plan for a 1000-1500VA UPS to support 15-30 minutes of runtime. That covers most utility outages and gives ample time for graceful shutdown if power doesn't return. For sites with frequent or extended outages, scale to 2000VA+ with an extended battery pack.
How long does a UPS battery last?
Sealed lead-acid (SLA) UPS batteries typically last 3-5 years. Lithium-ion UPS batteries (newer, more expensive) last 8-10 years. Heat is the primary aging factor — UPSs in unconditioned closets fail batteries faster. Schedule replacement at year 3 for SLA and year 7 for lithium, regardless of self-test results; runtime degrades silently and slowly before complete failure.
Should I use a UPS or a generator for backup power?
UPSs cover seconds-to-minutes outages and bridge to generator startup. Generators cover hours-to-days outages but take 10-30 seconds to come online. For sites that need uninterrupted operation through extended outages, both are required: UPS bridges the generator startup gap and conditions generator power, generator covers the long tail. Standalone UPS without generator works for most commercial sites where occasional brief outages are acceptable.
Can one UPS power my entire camera system?
For small sites (8-16 cameras, single NVR, one switch) — yes, a single UPS works. For larger sites, distribute UPS protection across multiple smaller units rather than one large UPS. Reasons: failure isolation (one UPS battery failure doesn't take down everything), shorter cable runs from UPS to load (avoids voltage drop), and runtime calculation simplicity per zone.
What's the difference between line-interactive and online UPS?
Line-interactive UPSs run on utility power normally and switch to battery on failure. They include voltage regulation (AVR) that absorbs sags and surges without battery use. Online (double-conversion) UPSs continuously regenerate AC from battery-rectified DC — perfect output regardless of input quality. Online UPSs cost 2-3x more and are appropriate for highly sensitive loads (servers, lab equipment) or sites with very poor utility power.
Need help choosing? Talk to a Senior Specialist — direct line 877-277-7147 or request a quote.
Showing Results for UPS & Power Management
-
Altronix
SKU: AL1012ACMCB220
Altronix AL1012ACMCB220 12VDC Power Supply with Battery Backup
12VDC 10A supply with 8 isolated outputs and battery backup
- Eight independent 12VDC outputs prevent single-load failures from affecting other circuits
- 10A total capacity across 8 isolated channels for multi-subsystem security deployments
- Integrated battery backup with automatic switchover for uninterrupted power to critical loads
$657.68 $378.99 Save $278.69The item has been added -
Altronix
SKU: AL1024ULXPD8
Altronix AL1024ULXPD8 24VDC 10A Power Supply with Battery Backup
24VDC 10A regulated supply with integrated battery backup for security systems
- 8 independently fused outputs isolate device circuits to prevent cascade failures
- 10A max output at 24VDC supports multi-zone access control and intercom loads
- Integrated charger with AC fail and low-battery supervision for fault visibility
$575.89 $332.99 Save $242.90The item has been added -
Add to Cart The item has been addedAltronix
SKU: AL400ULXPD16CB
Altronix AL400ULXPD16CB 16-Output Power Supply with Battery Backup
16-output 12/24VDC supply with integrated battery backup and AC supervision
- 16 independent channels at 4A @ 12VDC or 3A @ 24VDC, selectable per unit
- Built-in battery charger with AC fail, low battery, and presence supervision
- UL Listed distribution platform for access control, surveillance, and alarm systems
In stock · Ships same business day$459.06 $264.99 Save $194.07The item has been added -
Add to Cart The item has been addedAltronix
SKU: AL400ULXPD4
Altronix AL400ULXPD4 4A Dual-Voltage Power Supply with Battery Backup
Dual-voltage 4A supply with battery backup and fault monitoring
In stock · Ships same business day$409.36 $239.99 Save $169.37The item has been added -
Altronix
SKU: AL400ULXX
Altronix AL400ULXX 4A Supervised Power Supply Battery Backup
12/24VDC supervised power supply with integrated battery backup for security systems
- Selectable 12VDC @ 4A or 24VDC @ 3A output with automatic backup switchover
- AC fail, low battery, and battery presence supervision for continuous monitoring
- UL listed for security and life safety applications with lifetime limited warranty
$371.34 $217.99 Save $153.35The item has been added -
Add to Cart The item has been addedAltronix
SKU: AL600ULACMJ
Altronix AL600ULACMJ 8-Output Dual-Voltage Power Supply with Battery Backup
8-output dual-voltage supply with battery backup for access control
- 12VDC @ 4A or 24VDC @ 3A per channel; 10A @ 12VDC max
- Integrated battery charger with AC fail and low battery supervision
- Fire alarm disconnect and battery presence monitoring, UL Listed
In stock · Ships same business day$696.05 $407.99 Save $288.06The item has been added -
Altronix
SKU: AL600ULMR

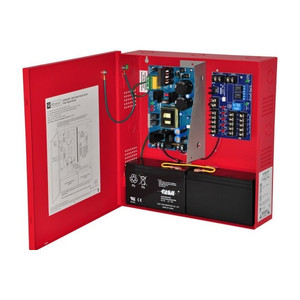

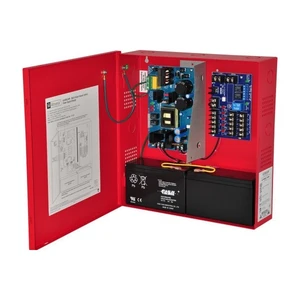

Altronix AL600ULMR 5-Output 12/24VDC Power Supply with Battery Backup
5-output 12/24VDC supply with battery backup for security systems
- Five isolated outputs prevent cascade failures across access control and alarm devices
- Selectable 12VDC or 24VDC matches legacy and modern field hardware in one unit
- Integrated battery charger maintains power during mains loss; UL-listed for fire alarm
$563.37 $330.99 Save $232.38The item has been added -
Altronix
SKU: AL600ULPD4
Altronix AL600ULPD4 4-Output 6A Power Supply with Battery Backup
4-output 6A power supply with selectable 12/24VDC and battery backup
- Four individually fused channels isolate loads; short on one output won't affect others
- Integrated charger and battery backup with AC fail, low battery, and presence signals
- 6A total current across 115VAC input; configurable voltage matches access control systems
$508.15 $292.99 Save $215.16The item has been added -
Add to Cart The item has been addedAltronix
SKU: AL62424C
Altronix AL62424C 24VDC 0.75A Linear Power Supply with Battery Backup
24VDC 0.75A linear supply with dual 12V/4AH battery backup for access control
- Instant failover to sealed lead-acid batteries when AC power fails
- 24VDC @ 0.75A output; accepts 16/24VAC input without reconfiguration
- Compact board form (2.5" × 3" × 1.5") fits inside control panels
In stock · Ships same business day$151.11 $97.99 Save $53.12The item has been added -
Add to Cart The item has been addedAltronix
SKU: EFLOW102NB
Altronix EFLOW102NB 12VDC 10A Board Power Supply with Battery Backup
12VDC 10A board supply with integrated battery backup and fire alarm control
- 10A output powers multiple access control, alarm, and intercom devices simultaneously
- Integrated charger manages float and charge cycles; AC fail and low battery supervision
- Fire alarm disconnect with automatic load shedding complies with NFPA 72 fire codes
In stock · Ships same business day$397.25 $232.99 Save $164.26The item has been added -
Add to Cart The item has been addedAltronix
SKU: EFLOW104NB
Altronix EFLOW104NB 24VDC 10A Board Power Supply with Battery Backup
24VDC 10A board supply with integrated battery backup and FAI disconnect
- 10A continuous output powers 20–30 mag locks or mixed access control loads
- Built-in battery charger and supervision (AC fail, low battery, presence detect)
- Fire alarm disconnect compliant; UL listed; compact board form for cabinet mounting
In stock · Ships same business day$458.57 $268.99 Save $189.58The item has been added -
Altronix
SKU: EFLOW104NBV
Altronix EFLOW104NBV 24VDC 10A Power Supply with Battery Backup
24VDC 10A power supply with sealed lead-acid battery backup and failover
- 10A continuous output from 220VAC input handles 4–8 camera systems without sag
- Sealed lead-acid charger with auto-failover maintains uptime during AC mains loss
- Auxiliary low-current output isolates independent circuits for signage and relay loads
$458.57 $268.99 Save $189.58The item has been added -
Altronix
SKU: EFLOW3NB
Altronix EFLOW3NB Single-Output 12/24VDC 2A Power Supply with Battery Backup
12/24VDC 2A supply with automatic battery backup for access control
- Selectable 12/24VDC output eliminates need for multiple SKUs
- Integrated battery backup with automatic switchover on AC loss
- AC fail, low battery, and battery presence supervision built-in
$289.88 $169.99 Save $119.89The item has been added -
Altronix
SKU: EFLOW4N
Altronix EFLOW4N 24VDC 4A Power Supply with Battery Backup & Fire Alarm Disconnect
24VDC 4A regulated supply with integrated battery backup & fire alarm disconnect
- Selectable 12/24VDC output at 4A handles multiple devices in one compact unit
- Battery backup with AC fail, low battery, and presence supervision built in
- FAI-compliant fire alarm disconnect in BC300 DIN rail or surface mount enclosure
$413.56 $242.99 Save $170.57The item has been added -
Add to Cart The item has been addedAltronix
SKU: EFLOW6NB
Altronix EFLOW6NB 6A 24VDC Power Supply with Battery Backup and Fire Alarm Disconnect
6A 24VDC supply with integrated battery backup and fire alarm control
- Configurable 12V or 24V output supports mixed legacy and modern equipment
- 6A capacity powers 4–6 access doors, small NVR, or distributed sensors
- Built-in battery charger with AC fail and low-battery supervision outputs
In stock · Ships same business day$390.97 $232.99 Save $157.98The item has been added -
Altronix
SKU: LINQ2
Altronix LINQ2 Network Communication Module with Battery Backup
Integrated power supply and network module with battery backup for IP security
- Built-in Ethernet adapter eliminates separate communication hardware in enclosures
- Battery backup maintains camera and access control operation during power loss
- Fire alarm disconnect function for life-safety compliance; UL Listed
$225.48 $133.99 Save $91.49The item has been added
