APC Back-ups 650 8 Outlet Canada - BE650G1-CN

APC by Schneider Electric BE650G1-CN 650VA Standby UPS Battery Backup

Overview

The APC BE650G1-CN is a 650VA / 390W standby UPS designed for Canadian installations where protecting connected equipment from power interruptions, surges, and line noise is non-negotiable. With eight NEMA 5-15R outlets, a 340-joule surge rating, and built-in RJ-45 Ethernet line protection, the BE650G1-CN covers the typical power requirements of a small-to-mid office workstation, network closet edge device, or security system control equipment — without overcomplicating the deployment. The BE650G1-CN (often searched as BE650G1 CN) is configured specifically for the Canadian 120V/60Hz grid, so voltage compatibility is confirmed out of the box.

Key Features

• 390W / 650VA Output Capacity: Handles the real-world draw of a desktop workstation, NVR, or access control server plus monitor. At 390W true power capacity, you have headroom above the typical 200–280W load of a business desktop — meaning runtime under partial load is meaningfully longer than spec-sheet worst-case numbers suggest.
• Standby (Offline) Topology with 8ms Transfer Time: The offline topology keeps the inverter out of the signal path during normal operation, which reduces heat, extends battery life, and eliminates the efficiency losses of always-on conversion. The 8ms switchover is fast enough for virtually all ATX power supplies and commercial switching power adapters, which typically hold output for 16–20ms through input interruption.
• 8 NEMA 5-15R Outlets: Eight outlets means you can protect the full stack — computer, monitor, NVR, switch, modem, and IP phone — from a single unit without daisy-chaining power strips. Confirm your load total stays under 390W before filling all eight ports.
• 340-Joule Surge Energy Rating: Surge suppression rated at 340J absorbs moderate transient events — the kind caused by nearby lightning strikes, utility switching, or HVAC compressor cycling. This is a meaningful number for protecting NVR hard drives and control panels, which are sensitive to voltage spikes even when running on battery.

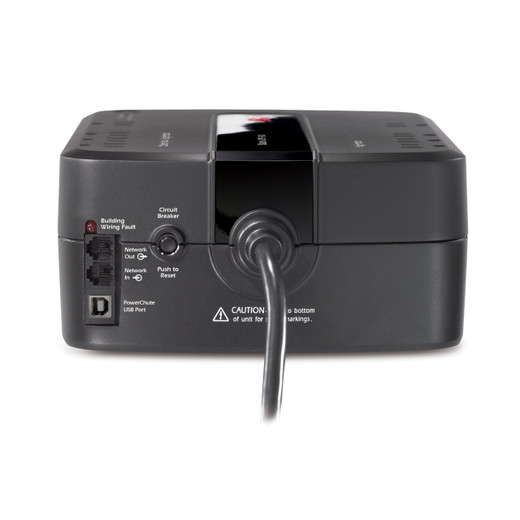

• Dual RJ-45 Ethernet Protection (In/Out): Two RJ-45 ports provide pass-through surge protection for a single Ethernet connection — useful if your protected device (NVR, workstation, VoIP adapter) is also connected to a network switch and you want a complete surge path for both power and data lines.
• USB Port for UPS Management: The USB interface allows the UPS to communicate shutdown status to a connected computer, enabling graceful OS shutdown during extended outages rather than a hard power cut — which matters for systems running SQL databases, video management software, or access control servers where abrupt shutdowns risk data corruption.
• 120V Input Operating Range (90–140V): The wide input voltage window (90V to 140V) means the UPS tolerates common browndown conditions without switching to battery unnecessarily — extending battery service life in installations where utility power quality is marginal.
• 45 dB Noise Level: At 45 dB operational noise, this unit is quiet enough for an open office, reception area, or server closet without acoustic complaints. That's roughly equivalent to a quiet library, not a fan-heavy rack UPS.

Integration and Compatibility

The BE650G1-CN operates on the Canadian 120V / 60Hz standard and outputs a stepped approximation sine waveform during battery operation. Most ATX-based computers, NVRs, IP camera recording systems, and standard office equipment tolerate this waveform without issue. However, active PFC (Power Factor Corrected) power supplies — common in higher-end workstations and some server-grade equipment — may behave unpredictably on a non-pure-sine output. If your protected load uses an active PFC PSU, verify compatibility before deploying this unit or consider a line-interactive UPS with true sine wave output instead.

The USB management port is compatible with APC's PowerChute Personal Edition software, which enables automatic graceful shutdown when battery runtime drops below a configured threshold. The dual RJ-45 ports support a single straight-through Ethernet connection (not a switch or hub), so plan accordingly if you need to protect multiple data lines.

Frequently Asked Questions

Q: Is the BE650G1-CN suitable for Canadian 120V outlets?

A: Yes. The BE650G1-CN is configured specifically for the Canadian market, operating on 120V / 60Hz input with NEMA 5-15R outlets. It accepts input voltage from 90V to 140V, which covers normal Canadian utility tolerances.

Q: Will the BE650G1-CN work with active PFC power supplies?

A: The BE650G1-CN uses a standby topology that produces a stepped waveform (not a true pure sine wave) during battery operation. Active PFC power supplies can be sensitive to non-sine waveforms. Verify compatibility with your specific PSU before deploying, or choose a line-interactive UPS with pure sine output for active PFC loads.

Q: How many devices can I connect to the BE650G1-CN?

A: The unit provides 8 NEMA 5-15R AC outlets. The total connected load must not exceed 390W. Add up the wattage of all devices you plan to connect and confirm the total is under 390W to avoid overloading the unit.

Q: What does the 340-joule surge rating protect against?

A: The 340J surge energy rating means the unit can absorb moderate electrical transients — such as those from nearby lightning activity, utility grid switching, or motor-driven equipment on the same circuit. It is not a guarantee against a direct lightning strike, but it provides meaningful protection for connected electronics against the transient spikes that occur regularly in commercial environments.

Q: What is the transfer time when utility power fails?

A: The BE650G1-CN switches to battery in approximately 8 milliseconds. Most standard ATX computer power supplies and switching power adapters bridge this gap without issue, maintaining uninterrupted output to connected devices.

Q: Does the USB port provide power charging or only UPS communication?

A: The USB port on the BE650G1-CN is a management interface only — it communicates UPS status (battery level, power events) to a connected computer for automated shutdown purposes. It does not provide USB charging output.

James Everett

The BE650G1-CN is a 390W standby UPS I'd reach for when the deployment priority is straightforward outlet-level protection — not runtime-maximized power conditioning. The 8ms transfer time is the spec I check first on any standby unit: at 8ms, standard switching PSUs in NVRs and workstations coast through the gap without a hiccup, so you're not buying a more expensive topology just to cover transfer speed.

Technical Highlights:

• 390W True Power Capacity: At 390W, this unit comfortably covers a single NVR plus a managed PoE switch — a common pairing in small physical security installs. Keep total load under 300W if you want meaningful runtime buffer above the minimum hold-up threshold.
• 340J Surge Energy Rating: Enough to absorb the kind of transient spikes that kill NVR hard drives and access control boards over time. Not overkill protection, but appropriate for equipment closets on shared commercial circuits with HVAC or elevator loads nearby.
• Dual RJ-45 Ethernet Pass-Through: Useful specifically when the NVR or control workstation has a single direct Ethernet drop — protects the data line from the same surge event that might come through the power line simultaneously. One data connection only; it's not a switch port.

Deployment Considerations:

• Verify that no active PFC power supplies are in the connected load before deploying. The stepped waveform output during battery operation is incompatible with some modern workstation PSUs and can cause nuisance shutdowns or PSU damage over time.
• The 45 dB operational noise rating makes this appropriate for an open office or reception desk, but the unit will emit audible beeping during battery operation and low-battery warnings — factor that into placement decisions near client-facing spaces.

This unit fits cleanly into a Canadian small-office or security equipment closet where you need 8-outlet coverage, basic surge and Ethernet line protection, and a graceful-shutdown USB link to a connected NVR or workstation — without the cost or complexity of a line-interactive or online double-conversion unit.
