Fiber & GPON Infrastructure | Singlemode, Multimode, OLT/ONT

Q: When should I choose singlemode vs. multimode fiber?

Use singlemode for distances >500 m, 10G+ speeds, or harsh electrical environments (factories, RF-dense sites). Multimode is cost-effective for intra-building IDF links (<500 m) and supports 1G cameras without power-hungry electronics. Many large campuses mix both: multimode within buildings, singlemode for inter-building backbone.

Q: What's the difference between a GPON OLT and ONT, and do I need both?

The OLT (Optical Line Terminal) is the aggregation head-end at your main IDF; ONTs (Optical Network Terminals) are remote field units that convert fiber light into Ethernet + PoE for cameras and readers. You need one OLT per core, and one ONT per remote location or building cluster. GPON prevents standard drift at remote sites by centralizing bandwidth and power architecture.

Q: How do I size SFP transceiver speed (1G vs. 10G)?

Calculate aggregate bitrate of all cameras on that switch. NVRs routinely underperform when uplink throughput is undersized. Rule of thumb: if you have >16 cameras on a switch, use 10G SFP+ to the core; <5 cameras can share a 1G SFP. Factor in redundancy traffic and future growth (typically add 30%).

Q: What insertion loss budget should I plan for in a fiber run?

Budget ~0.3 dB per mated connector pair and 0.2 dB per km of singlemode fiber. Example: 2 km singlemode + 4 connectors (LC/LC) = 0.4 dB loss in cable + 1.2 dB loss in splices = 1.6 dB total. Most transceivers tolerate 15–20 dB; verify your specific SFP datasheet and use OTDR field testing to confirm links meet budget before camera activation.

Q: Can I mix singlemode and multimode on the same switch?

Yes, if your switch has SFP slots: use singlemode SFP+ for long backbone links and multimode SFPs for short IDF closet patch runs. Use proper color-coded connectors (yellow for singlemode, blue for multimode) and label patch panels to prevent cross-patching errors that cause link failures and core network cascade faults.

Q: What's the typical lifespan and upgrade path for fiber infrastructure?

Fiber cable plant (buried or in-conduit) lasts 20+ years if not physically damaged. Transceivers, patch panels, and connectors should be replaced every 5–8 years as technology evolves. GPON and WDM wavelength planning allow bandwidth upgrades without trenching: swap OLT cards or add WDM multiplexers to existing fiber. Plan for 10 Gbps backbone capacity within 3–5 years even if you don't need it today.

Plan Your Deployment

Select singlemode or multimode fiber type for required link distances
Specify SFP/SFP+ transceiver wavelength and speed for switch compatibility
Evaluate GPON for shared fiber to multiple camera locations
Plan fiber patch panel port density for MDF/IDF cross-connects

Showing Results for Fiber & GPON

Compare

Add to Cart The item has been added

Ubiquiti

Ubiquiti F-POE-G2 Fiber-to-Ethernet PoE Media Converter

$145.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added

Ubiquiti

Ubiquiti UF-GP-B+ GPON Optical Transceiver Module

$97.50 $76.99 Save $20.51

Add to Cart
The item has been added
Compare

Out of stock

Ubiquiti

Ubiquiti UF-GP-C+ SFP Module

$108.75 $84.99 Save $23.76

Add to Cart
The item has been added
Compare

Add to Cart The item has been added

Ubiquiti

Ubiquiti UF-INSTANT Compact GPON Customer Premises Equipment

$42.99

Add to Cart
The item has been added
Compare

Out of stock

Ubiquiti

Ubiquiti UF-OLT U Fiber OLT

$2,654.77 $983.99 Save $1,670.78

Add to Cart
The item has been added
Compare

Add to Cart The item has been added

Ubiquiti

Ubiquiti UF-OLT-4 GPON Optical Line Terminal

$1,254.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added

Ubiquiti

Ubiquiti UF-SM-PATCH-APC-APC Single-Mode Fiber Patch Cable

$17.73 $3.99 Save $13.74

Add to Cart
The item has been added
Compare

Add to Cart The item has been added

Ubiquiti

Ubiquiti UF-SPLITTER-16 Passive Optical Splitter

$26.99

Add to Cart
The item has been added
Compare

Out of stock

Ubiquiti

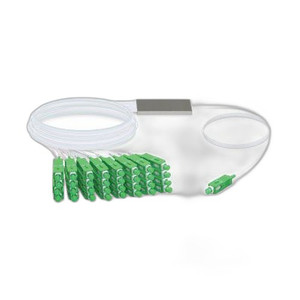

Ubiquiti UF-SPLITTER-32 UFiber Splitter 32 outputs

$46.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added

Ubiquiti

Ubiquiti UF-SPLITTER-4 Passive Optical Fiber Splitter

$10.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added

Ubiquiti

Ubiquiti UF-SPLITTER-8 Passive Optical Splitter

$13.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added

Ubiquiti

Ubiquiti UF-WIFI-US Wall-Mountable Wireless Access Point

$113.71 $75.99 Save $37.72

Add to Cart
The item has been added
Compare

Add to Cart The item has been added

Ubiquiti

Ubiquiti UF-WIFI6 WiFi 6 GPON Access Point

$133.99

Add to Cart
The item has been added

What to Look For When Buying

The decisions that matter most before you spec.

Fiber Backbone Redundancy & Failover

Fiber rings and dual-fiber runs eliminate single points of failure in core surveillance networks. Network collapse typically occurs at core switches, so investing in fiber patch diversity and load-balanced GPON distribution protects thousands of camera streams and access-control readers.

Long-Distance Runs Without Power Injection

Fiber removes the bandwidth limits and PoE distance ceiling (100m copper) that plague large campuses. Multi-kilometer surveillance links can be powered by a single fiber-fed PoE injector at the origin, reducing IDF closet density and standards drift across distributed sites.

Electromagnetic Immunity & Industrial Environments

Fiber is immune to RF, lightning, and ground loops—critical in manufacturing, utility, and outdoor stadium deployments where copper transceivers fail. GPON passive optical networks eliminate powered remote nodes, further reducing EMI vulnerability in harsh electrical environments.

Throughput Scaling for High-Bitrate Systems

Large surveillance systems fail when storage throughput hits the core switch limit. Fiber SFP transceivers at 10G speeds and GPON's ability to aggregate dozens of 1G ONT ports enable systems to sustain multi-stream 4K recording without dropping frames or starving NVR ingest.

Future-Proof Capacity Without Infrastructure Replacement

Singlemode fiber infrastructure supports wavelength-division multiplexing (WDM) and 100G transceivers, allowing bandwidth upgrades by swapping SFP modules without trenching new cable. GPON equipment supports split ratios up to 1:128, future-proofing site density for new cameras, sensors, and access-control readers.

Compliance & Standards Lock-In

Fiber patch panels with properly managed connector types (LC vs. SC) and singlemode vs. multimode discipline prevent cross-patching errors. System performance degradation often stems from physical-layer misconfigurations; standardized termination reduces mean-time-to-repair and scales across multi-location deployments.

Technology Stack

The specs and acronyms that actually affect fiber & gpon performance.

Singlemode vs. Multimode Fiber

Singlemode (9 µm core) carries one light path and travels 10+ km with minimal attenuation; multimode (50 or 62.5 µm) carries multiple paths, limits distance to ~500 m but costs less and tolerates larger connector tolerances. For surveillance backbones longer than 1 km or carrying 10G+ traffic, singlemode is standard.

GPON (Gigabit Passive Optical Network)

A point-to-multipoint fiber architecture using passive splitters (no power in the field) to serve up to 64–128 ONT endpoints from a single OLT port. GPON delivers symmetric or asymmetric 1 Gbps per ONT and reduces cabling complexity in sprawling campuses.

SFP & SFP+ Transceivers

Hot-pluggable optical modules that convert electrical signals to/from light. SFP = 1 Gbps, SFP+ = 10 Gbps; selection depends on overall network load and aggregation point bandwidth. Wavelength (850 nm, 1310 nm, 1550 nm) determines fiber type compatibility.

Connector Types (LC, SC, ST, MTP/MPO)

LC (Lucent Connector) is industry standard for singlemode surveillance and data center work; SC and ST are older, bulkier designs. MTP/MPO enable 12–144 fiber bundling in high-density patch panels. Consistency within a site prevents cross-patching and speeds troubleshooting.

Insertion Loss & Return Loss (dB)

Insertion loss measures light attenuation through a fiber link, splice, or connector (lower dB = better). Return loss (reflection) must stay below thresholds to avoid receiver saturation and crosstalk. Budget for cumulative loss in long hauls; typically aim for <0.5 dB per splice and <0.3 dB per mated pair.

Wavelength-Division Multiplexing (WDM)

WDM uses different light wavelengths on the same fiber to carry bidirectional or multiple independent signals. CWDM and DWDM enable future bandwidth growth without additional fiber trenching. Critical for surveillance backbones expecting 10+ year service life and technology refresh cycles.

Typical Deployment Scenarios

Multi-Building Campus Surveillance Backbone

4 buildings, 20 cameras and 8 access readers per building connected via singlemode fiber runs (1.5–3 km) to a central IDF. Core uses managed switches with SFP+ uplinks and dual-fiber patch panels for ring redundancy. GPON OLT with 4 ONT units (one per building) simplifies remote PoE power delivery and scales to 8 readers + 20 cameras per ONT without power budget strain.

Distributed IDF Closets in Linear Manufacturing Facility

Two IDFs 2 km apart connected by dual singlemode fiber with LC patch termination and OTDR-verified loss budget. Each IDF feeds 30 cameras across 3 loading docks via PoE switches; fiber backbone isolates RF noise from arc welders and large motors. Isolation prevents cascading failures when one facility section experiences power surges.

Stadium Security with Remote Press Box & Parking

Main control room + 3 remote nodes (press level, lot monitors, tunnel access). Multimode fiber (500 m max runs within stadium) to each node via GPON ONT + PoE injector. Singlemode uplink to parking structure 1 km away via SFP+ transceiver and directional fiber termination. Supports 200+ cameras and continuous 4K recording across all zones without core congestion.

Retail Multi-Site Network with Centralized Storage

5 stores within 500 m radius plus 2 remote warehouses (3 km via underground conduit). GPON OLT at headquarters splits 32 ONT circuits across retail + warehouse endpoints. Each ONT feeds a local PoE switch for camera + intrusion sensors; fiber backbone carries high-bitrate 4K streams to central NVR without throttling edge device frame rates or triggering storage ingest timeouts.

Frequently Asked Questions

When should I choose singlemode vs. multimode fiber?

Use singlemode for distances >500 m, 10G+ speeds, or harsh electrical environments (factories, RF-dense sites). Multimode is cost-effective for intra-building IDF links (<500 m) and supports 1G cameras without power-hungry electronics. Many large campuses mix both: multimode within buildings, singlemode for inter-building backbone.

What's the difference between a GPON OLT and ONT, and do I need both?

The OLT (Optical Line Terminal) is the aggregation head-end at your main IDF; ONTs (Optical Network Terminals) are remote field units that convert fiber light into Ethernet + PoE for cameras and readers. You need one OLT per core, and one ONT per remote location or building cluster. GPON prevents standard drift at remote sites by centralizing bandwidth and power architecture.

How do I size SFP transceiver speed (1G vs. 10G)?

Calculate aggregate bitrate of all cameras on that switch. NVRs routinely underperform when uplink throughput is undersized. Rule of thumb: if you have >16 cameras on a switch, use 10G SFP+ to the core; <5 cameras can share a 1G SFP. Factor in redundancy traffic and future growth (typically add 30%).

What insertion loss budget should I plan for in a fiber run?

Budget ~0.3 dB per mated connector pair and 0.2 dB per km of singlemode fiber. Example: 2 km singlemode + 4 connectors (LC/LC) = 0.4 dB loss in cable + 1.2 dB loss in splices = 1.6 dB total. Most transceivers tolerate 15–20 dB; verify your specific SFP datasheet and use OTDR field testing to confirm links meet budget before camera activation.

Can I mix singlemode and multimode on the same switch?

Yes, if your switch has SFP slots: use singlemode SFP+ for long backbone links and multimode SFPs for short IDF closet patch runs. Use proper color-coded connectors (yellow for singlemode, blue for multimode) and label patch panels to prevent cross-patching errors that cause link failures and core network cascade faults.

What's the typical lifespan and upgrade path for fiber infrastructure?

Fiber cable plant (buried or in-conduit) lasts 20+ years if not physically damaged. Transceivers, patch panels, and connectors should be replaced every 5–8 years as technology evolves. GPON and WDM wavelength planning allow bandwidth upgrades without trenching: swap OLT cards or add WDM multiplexers to existing fiber. Plan for 10 Gbps backbone capacity within 3–5 years even if you don't need it today.
