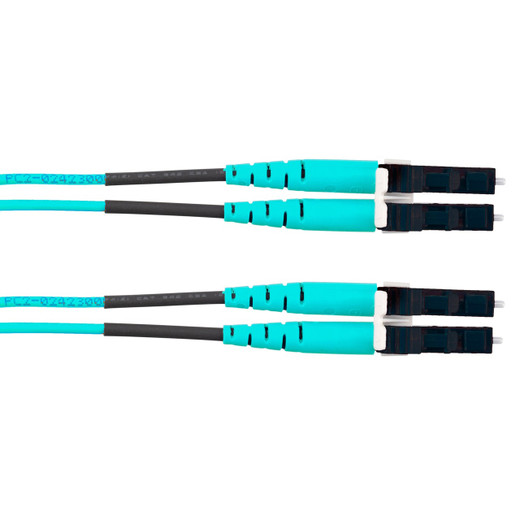

The Panduit FZ2ERLNLNSNM010 Opti-Core patch cord delivers OM4 multimode performance for 40GBASE-SR4 and 100GBASE-SR10 datacenter links. This 10-meter duplex LC cable features 50-micron laser-optimized fiber in aqua jacketing with OFNR riser rating for vertical pathways. Standard insertion loss ensures reliable 40/100G transmission over the full OM4 850nm reach of 550 meters. Pre-terminated with duplex LC connectors on both ends, it eliminates field termination risk in high-density fiber arrays. Built for TIA-568-C.3 and ISO/IEC 11801 compliance in enterprise campus backbones, storage area networks, and equipment-zone cross-connects where OM4 bandwidth supports current 10/40G speeds with headroom for 100G migration.
The 50-micron laser-optimized core delivers 4700 MHz·km effective modal bandwidth at 850nm, supporting 10GBASE-SR links to 400 meters and 40GBASE-SR4 to 150 meters per IEEE 802.3. The duplex LC connector pair uses 1.25mm ceramic ferrules with standard polish for sub-0.35 dB insertion loss and better than -40 dB return loss. The 1.6mm tight-buffered cable construction provides pull strength and bend radius tolerance for dense pathway routing. OFNR (riser) flame rating meets NEC Article 770 for vertical installation between floors in non-plenum spaces. Aqua jacketing follows TIA-598-C color code, eliminating confusion with OM3 (aqua) vs OM2 (orange) or single-mode (yellow) infrastructure during moves and changes.
Pre-terminated duplex LC patch cords eliminate the field termination labor and insertion loss variability that come with fusion splicing or mechanical connectors. In equipment rooms and main distribution areas, these cables connect active 40G/100G switches to high-density LC cassettes in fiber enclosures without requiring on-site fiber techs. The 10-meter length covers typical rack-to-rack spans in adjacent rows or cross-connect jumpers from zone boxes to patch panels. In storage networks, OM4 supports 16G/32G Fibre Channel links with distance headroom that OM3 cannot match. For enterprises deploying 10G today, OM4 infrastructure investment future-proofs backbone links for 40G/100G upgrades without re-cabling—critical when installed cable represents 80% of the fiber plant lifecycle cost.
The FZ2ERLNLNSNM010 is factory-tested to TIA-568-C.3 transmission specs and shipped with individual test reports verifying insertion loss, return loss, and polarity. Panduit backs the cable with their standard manufacturer warranty covering defects in materials and workmanship. Each cord ships with dust caps on both LC connector ends to protect ferrule end-faces during storage and installation. For projects requiring UL/cUL or ETL third-party verification, the OFNR rating carries independent lab certification for NEC 770.154(A) riser applications. When your fiber infrastructure must deliver spec-grade performance on day one and support bandwidth growth for the next decade, factory-terminated OM4 LC patch cords eliminate the most common source of post-install link failures.
