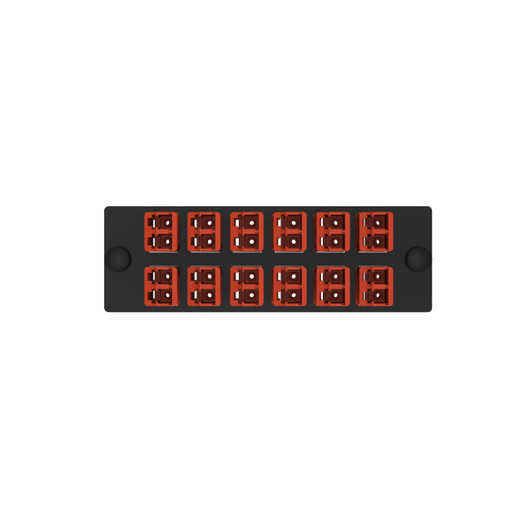

The Panduit FAP12WBRDRDDLCZ Opticom fiber adapter panel delivers 12 LC duplex ports in a compact 1U form factor, designed for datacenter and enterprise network deployments requiring OM4 multimode connectivity. The panel features keyed B-Red adapters on the user-facing side and non-keyed adapters on the service side—a configuration that prevents accidental cross-connections on the structured side while maintaining flexibility for backbone or equipment connections. Zirconia ceramic split sleeves ensure repeatable low insertion loss across all 24 fiber terminations, critical for 40G/100G optical links where every tenth of a dB matters.
Keyed fiber adapters are the industry answer to polarity errors that plague high-density LC deployments. The B-Red key (one of twelve TIA-604-18 standard keys) physically blocks insertion of non-keyed or differently keyed connectors, ensuring structured cabling remains wired to a single polarity scheme. On the user side, every horizontal or equipment cable must carry a matching B-Red key; on the service side, the non-keyed adapter accepts trunk cables from diverse vendors or legacy installations without adapter replacement. This asymmetric keying model is standard practice in finance, healthcare, and hyperscale datacenter environments where a single polarity mistake can black out an entire switch stack. Zirconia sleeves—harder and more dimensionally stable than ceramic alternatives—maintain concentricity under thousands of mate cycles, keeping return loss above 50 dB and insertion loss below 0.3 dB even after years of moves, adds, and changes.
The front-loading architecture lets you populate the panel incrementally as circuits come online, or retrofit adapter types (singlemode to multimode, non-keyed to keyed) without rack access to the rear. In a live datacenter row, that means no downtime for adjacent switches and no need to schedule maintenance windows just to add a fiber drop. The 1.38" (35.2mm) height fits the standard 1U envelope, leaving room for cable management fingers above and below. Pair with Panduit's modular cassettes or breakout trunks for a complete structured cabling solution that scales from 12 to 288 fibers per rack without changing footprint. EIA-310-D compliance guarantees mechanical fit in any 19" rack—Chatsworth, Middle Atlantic, APC NetShelter, or OEM server cabinets—and the black finish matches standard IT equipment aesthetics.
Standards compliance extends beyond the mounting holes: RoHS conformance satisfies EU importation rules and the procurement policies of most Fortune 500 companies and government agencies. For integrators working federal contracts or multinational deployments, documenting RoHS compliance in your BOM is non-negotiable, and Panduit ships declarations of conformity with every carton. The FAP12WBRDRDDLCZ ships as a single populated panel (one unit per package, ten per carton), adapter-loaded and rack-ready—no field assembly, no loose hardware, no missing circlips that vanish into raised-floor voids. You unbox, mount, plug in, and light up.
