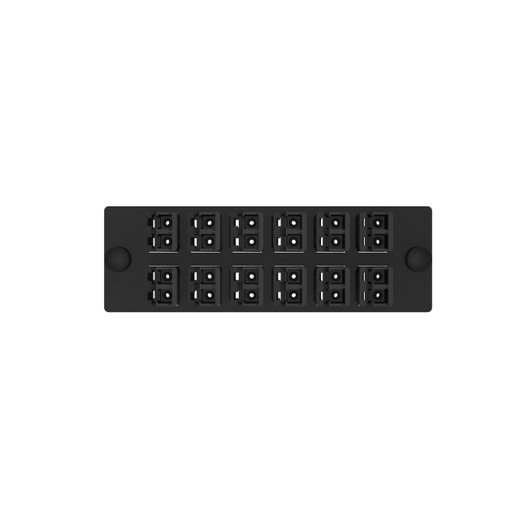

Panduit FAP12WABLBLDLCZ 12-Port LC Duplex OM4 Fiber Adapter Panel

The Panduit FAP12WABLBLDLCZ Opticom® front-loading fiber adapter panel delivers 12 LC duplex ports in a compact 1U form factor for high-density datacenter and telecom patching. OM4-rated for 10/40/100 Gigabit applications, this panel features keyed A-Black adapters on the user side paired with non-keyed service-side connectors to maintain polarity control across your structured cabling infrastructure. Zirconia ceramic split sleeves ensure reliable low-loss connections in mission-critical fiber installations.

Key Features

12 LC duplex fiber optic adapters in 1U rack-mount format

OM4 multimode rating supports 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10

Keyed A-Black user side / non-keyed service side for polarity management

Zirconia ceramic split sleeves for low insertion loss and long-term durability

Front-loading design enables patching and service without rear rack access

EIA-310/IEC 60297 compliant 19-inch rack mounting

RoHS compliant construction

The FAP12WABLBLDLCZ addresses a core challenge in structured cabling: maintaining polarity and port density while preserving serviceability. The keyed A-Black adapter configuration on the user-facing side prevents accidental cross-connections in TIA-568 polarity Method A deployments, while the non-keyed service side accommodates standard LC connectors from trunk cables or backbone feeds. This keyed-to-non-keyed design is particularly valuable in environments where field technicians need foolproof visual and mechanical guidance—keying eliminates the guesswork that leads to fiber pair reversals and diagnostic headaches.

OM4 laser-optimized 50/125 μm multimode fiber is the workhorse of modern datacenter backbones, supporting 10 Gigabit Ethernet over 400 meters, 40 Gigabit over 150 meters, and 100 Gigabit links up to 150 meters using parallel optics. The zirconia ceramic split sleeves in each adapter provide the precision alignment required to maintain insertion loss below 0.5 dB across thousands of mating cycles, critical in environments where patch cords are frequently reconfigured. Zirconia's hardness and thermal stability outperform phosphor bronze sleeves in high-use installations, reducing wear-related signal degradation over the panel's operational life.

Front-loading architecture is a significant operational advantage in fully populated server racks or cabinets mounted against walls. Traditional rear-loaded fiber enclosures require physical access behind the rack to add or replace adapters, often necessitating shutdown windows or risky live-cable manipulation in tight spaces. The FAP12WABLBLDLCZ allows you to slide adapters in from the front, changing port counts or adapter types (single-mode to multimode, LC to SC) without disturbing adjacent equipment or routing. For integrators managing 42U racks with zero rear clearance, this eliminates a common bottleneck during MACs (moves, adds, changes).

At 1.38 inches tall and 4.3 inches wide, the panel occupies a single rack unit while delivering 24 fibers' worth of connectivity. This density is essential in blade server environments, spine-leaf network topologies, or SAN (Storage Area Network) fabrics where every RU counts. The black plastic construction with laser-etched port labels maintains a clean aesthetic in customer-facing colocation suites or network operations centers, while the EIA-310 and IEC 60297 mounting compliance ensures drop-in compatibility with standard 19-inch equipment racks worldwide. RoHS compliance meets European and North American environmental procurement requirements for enterprise and government installations.
