Panduit CMDSVLLCZBL LC Duplex OM4 Fiber Adapter Module

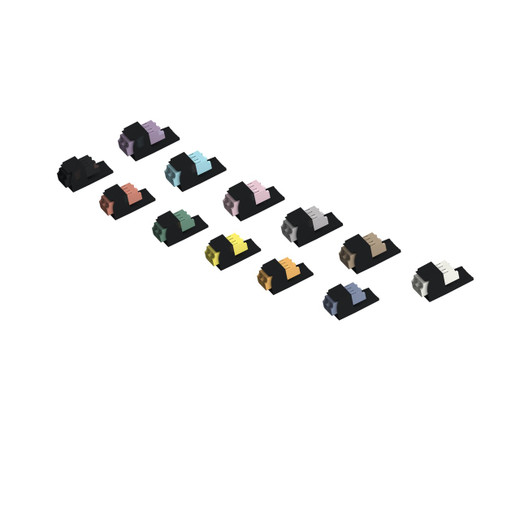

Panduit CMDSVLLCZBL Mini-Com LC Duplex Fiber Adapter Module

The Panduit CMDSVLLCZBL delivers enterprise-grade LC connectivity in the compact Mini-Com form factor, designed for structured cabling systems where panel density and field serviceability matter. This violet-coded OM4 multimode duplex adapter couples two LC connectors in a single module space with integrated panel retention clips that lock into Mini-Com patch panels, faceplates, and surface-mount boxes without tools or additional hardware. The black module housing with violet fiber adapter provides instant visual identification of 50/125 μm OM3/OM4 laser-optimized multimode circuits—critical in mixed-fiber environments where mismatched connections cause link budget failures. Split zirconia ceramic sleeves maintain sub-0.3 dB insertion loss across the duplex pair and resist wear through thousands of mate cycles, making this adapter suitable for high-churn access-layer deployments in offices, labs, and telecom rooms where patch cords are frequently reconnected.

Key Features

• LC duplex configuration—two fibers terminated in one module footprint for maximum panel density and simplified cable management in crowded racks
• Integrated panel retention clips—snap-lock design secures the module into Mini-Com openings with audible click confirmation; no screws or tie-wraps required
• Violet OM4 color coding per TIA-606-B—complies with ANSI/TIA standard for laser-optimized 50/125 μm multimode fiber identification, preventing cross-connections with OM1/OM2 legacy plant
• Zirconia ceramic split sleeves—resist wear and contamination better than phosphor bronze or polymer sleeves; maintain alignment precision for <0.3 dB typical insertion loss over service life
• TIA/EIA-605 FOCIS-10 compliant—dimensional and optical performance exceeds published standards for LC small-form-factor connectors, ensuring interoperability with all FOCIS-10 patch cords
• Non-keyed housing—accepts standard LC duplex connectors from any manufacturer; no proprietary latch or boot geometry required
• Black thermoplastic module—UV-resistant and flame-rated material matches Mini-Com system aesthetics; violet adapter insert provides fiber-type contrast for easy identification
• RoHS compliant—lead-free construction meets European Directive 2011/65/EU and amendments for sale and use in EU markets

The duplex LC interface supports bi-directional communication over a single two-fiber strand pair—transmit and receive lanes bundled in one connector body. This configuration is standard for 1000BASE-SX Gigabit Ethernet, 10GBASE-SR 10-Gigabit Ethernet, and 8/16/32 Gbps Fibre Channel SAN links, where the adapter terminates backbone or horizontal cabling runs from telecom rooms to switch ports, server NICs, or desktop media converters. The Mini-Com footprint is 40% smaller than legacy SC duplex adapters, allowing integrators to deploy higher port counts in the same panel or rack space—essential for large IP surveillance installs where hundreds of fiber links converge at core switches. The snap-in retention mechanism tolerates panel flexing and vibration without loosening; modules stay seated during moves-adds-changes and seismic events, maintaining physical-layer continuity even when adjacent modules are removed or inserted. Violet color coding per TIA-606-B (aqua for OM3, violet for OM4) provides instant visual confirmation that the adapter is rated for laser-optimized multimode fiber with 850 nm VCSEL transceivers—preventing accidental connection of orange OM1/OM2 patch cords that would limit link distances to 33-82 meters instead of the 400-550 meter range OM4 supports at 10 Gbps.

Zirconia ceramic split sleeves are the mechanical core of this adapter's performance. Each sleeve is a precision-ground cylinder split along its length, creating spring tension that grips and aligns the 1.25 mm LC ferrules when mated. Zirconia (zirconium dioxide) is harder than steel and chemically inert, resisting scratches from dust particles and corrosion from humidity—common failure modes in telecom closets and outdoor-rated enclosures. The sleeves maintain <0.3 dB insertion loss and <-40 dB return loss across typical production runs, with <0.2 dB variation between insertion cycles—critical for 10GBASE-SR links where the power budget is only 2.6 dB over 400 meters, leaving no margin for lossy adapters. The violet fiber adapter body is molded from impact-resistant thermoplastic and press-fit into the black Mini-Com module housing, which features the integrated retention clips on the top and bottom edges. These clips engage slots in Mini-Com panels and faceplates, distributing extraction force across the module body rather than concentrating stress on the fiber adapter—a design advantage over adapters that rely on friction fit alone. Field techs can release the module by pressing the clips inward with a fingertip or small screwdriver, then sliding the assembly out from the front of the panel without accessing the rear, simplifying maintenance in shallow wall boxes and tight equipment racks.

Designed for structured cabling deployments in LANs, storage area networks, and fiber-to-the-desktop applications, the CMDSVLLCZBL fits any environment where OM3 or OM4 multimode fiber terminates at an accessible patch point. Typical use cases include telecom room patch panels consolidating horizontal runs from IDF closets, equipment rack adapter panels connecting fiber backbones to switch modules, and desktop faceplates providing direct fiber connections to workstations running media-intensive applications. The adapter is non-keyed, accepting LC duplex connectors with standard 6.25 mm body width and RJ-45-style latch—compatibility extends to all major patch cord brands (Panduit, Corning, CommScope, Belden) and transceiver pigtails. For IP surveillance and access control networks, this adapter enables fiber uplinks from remote equipment rooms to centralized NVR/VMS server clusters, eliminating copper distance limits and electrical ground loops that cause video artifacts and false alarms. The 10-pack carton quantity aligns with typical panel build-outs; a 48-port 1U Mini-Com patch panel requires 48 adapter modules, so a five-carton order covers one panel with spares for future expansion. Exceeds TIA/EIA-568-B.3 optical fiber cabling standards and ships with UPC 61305686156 for inventory tracking and procurement integration with project BOMs. Backed by manufacturer warranty, this adapter delivers the mechanical reliability and optical precision commercial integrators expect from the Panduit Mini-Com system for mission-critical fiber infrastructure supporting 10 Gbps data rates and beyond.
