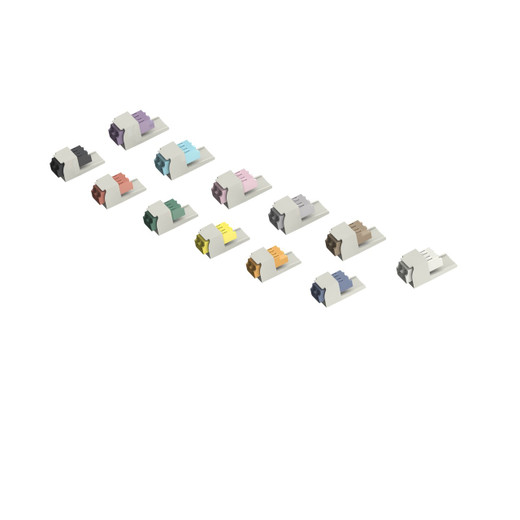

Panduit CMDCGRLCZIW Mini-Com® Keyed C-Green LC Duplex Adapter Module

The Panduit CMDCGRLCZIW is a Mini-Com® keyed fiber adapter module that solves a common datacenter and telecom security problem: preventing unauthorized cross-connects. This LC duplex adapter uses a C-Green keyed interface that physically blocks insertion of non-matching connectors, adding a layer of access control to your fiber infrastructure without requiring electronic authentication or software. It couples two LC duplex connectors in a single Mini-Com module footprint, maintaining the density advantage of LC while enforcing keyed zone segregation. Zirconia split sleeves deliver superior insertion-loss consistency and mechanical durability compared to ceramic alternatives, critical in high-cycle patch-and-move environments. Integrated panel retention clips lock the module into Mini-Com faceplates, surface-mount boxes, or patch panels without tools, and the international white housing blends into ISO/IEC white fiber labeling schemes common in multi-tenant or carrier-neutral facilities.

Key Features

• C-Green keyed interface — physically restricts mating to matching keyed components for zone isolation and access control
• LC duplex coupling in single-wide Mini-Com module — preserves panel density while enforcing segmentation
• Zirconia split sleeves — exceed TIA/EIA-568-B.3 insertion-loss specs with better durability than ceramic under repeated mating cycles
• Integrated panel retention clips — snap-lock into Mini-Com mounting frames without screws or adhesive
• TIA/EIA-605 FOCIS-10 compliant — ensures dimensional compatibility with standard LC connectors within the keyed family
• International white module finish — matches global white fiber infrastructure standards for clean, consistent appearance
• RoHS compliant — meets EU and California hazardous-substance restrictions for global deployments

Keyed fiber adapters address a persistent problem in shared-infrastructure environments: preventing accidental or unauthorized cross-patching between networks that share physical rack space. In carrier hotels, colocation facilities, government installations, or multi-department datacenter rows, color-coding and labeling alone don't physically prevent a technician from plugging a finance-network jumper into a guest-network port. The C-Green keyed system uses a molded tab-and-slot profile on both the adapter and mating connectors, so only C-Green keyed patch cords can insert into this module. You can deploy different key types (A-Aqua, B-Beige, C-Green, etc.) across security zones, tenant partitions, or network tiers, turning physical topology into an enforced boundary. This matters during after-hours maintenance, contractor work, or high-pressure outage response when procedure compliance is hardest to guarantee.

The LC duplex form factor packs two fibers into the same footprint as one SC connector, and this adapter maintains that density advantage within the Mini-Com modular system. A single-wide Mini-Com opening accepts one CMDCGRLCZIW module, giving you a duplex LC interface in the space budget of one legacy connector. This matters when you're retrofitting a 24-port Mini-Com patch panel to fiber without replacing the entire frame, or when you need to mix copper keystones and fiber adapters in the same six-port faceplate for a desk drop. The integrated retention clips snap directly into the panel or faceplate frame with audible confirmation, and they hold against pull force during patch-cord insertion without requiring a separate retaining bracket or screw-down cap. Field changes are tool-free: press the release tab, pull the module, and snap in a different type if the port assignment changes.

Zirconia split sleeves are spec'd here instead of standard ceramic for a reason: zirconia is harder and has a lower coefficient of friction, which translates to less ferrule wear over thousands of mating cycles. In a frequently-repatched environment — think carrier cross-connect rooms, test labs, or flexible SAN fabrics — repeated insertions grind down ceramic sleeves and gradually increase insertion loss as the alignment degrades. Zirconia extends service life and keeps return loss and insertion loss within TIA-568-B.3 limits longer. The sleeves are factory-installed and do not require field cleaning or re-seating. This module ships ready to terminate patch cords the moment it clicks into the panel, so there's no adapter assembly step and no risk of contamination from handling loose internal components during install.

The CMDCGRLCZIW fits any Mini-Com mounting solution: blank patch panels, angled faceplates, surface-mount boxes, or under-desk access units. Panduit's Mini-Com ecosystem is universal across copper, fiber, A/V, and USB modules, so one faceplate platform serves mixed-media deployments without stocking different mounting hardware per cable type. The international white finish is the global standard for unkeyed or general-infrastructure fiber (as opposed to beige/ivory for legacy North American preference), and it coordinates with white fiber trunks, white cabinet interiors, and white labeling tape in facilities that follow ISO/IEC color conventions. If you're mixing keyed and non-keyed fiber in the same rack row, the white housing keeps a consistent visual baseline, with only the C-Green key color indicating the restricted-access ports at a glance.
