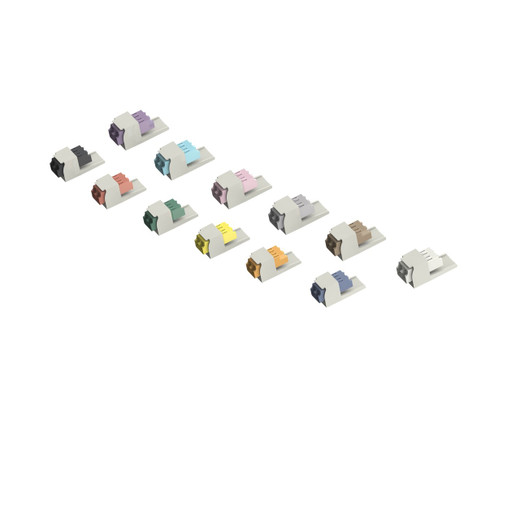

Panduit CMDFDBDBDLCZIW Mini-Com Keyed LC Duplex Adapter Module

The Panduit CMDFDBDBDLCZIW is a Mini-Com duplex LC fiber adapter module engineered for installations requiring an additional layer of physical port security. It features asymmetric keying—Keyed F-Dark Blue on the user side, non-keyed on the service side—allowing controlled access at the user termination while maintaining standard connectivity at the patch panel or network equipment. This dual-keying architecture prevents unauthorized cable swaps at the desk or wall outlet without disrupting backend infrastructure compatibility. The module couples two LC duplex connectors in a single Mini-Com footprint, supports OM4 multimode fiber, and ships in international white to match global faceplate standards.

Key Features

Keyed F-Dark Blue user port / non-keyed service port for one-way physical access control

Duplex LC coupling in Mini-Com single-gang form factor

OM4 multimode fiber support for 10/40/100 Gb Ethernet over extended distances

Zirconia split sleeves for low insertion loss and repeatable connector performance

TIA/EIA-605 FOCIS-10 compliant, exceeds TIA/EIA-568-B.3 physical layer requirements

Integrated panel retention clips—no loose hardware or secondary mounting brackets

International white module body matches worldwide outlet and patch panel aesthetics

Keyed fiber adapters are a critical component in secure network architectures where physical layer tampering or accidental mis-patching carries compliance or operational risk. The CMDFDBDBDLCZIW's F-key profile on the user side mates exclusively with matching F-keyed LC connectors, blocking insertion of standard non-keyed patch cords. At the service side, the non-keyed port accepts any LC duplex connector, preserving flexibility for trunk cabling, backbone links, and equipment connections that don't require end-user restrictions. This asymmetric design is common in government facilities, financial trading floors, and healthcare networks where desktop ports must be locked down but server-room patching needs to remain agile. The module's zirconia ceramic sleeves provide alignment precision within 0.5 microns, ensuring insertion loss stays below 0.3 dB typical even after hundreds of mating cycles—essential for maintaining link budget in 40GBASE-SR4 or 100GBASE-SR4 deployments over OM4 trunk spans.

The Mini-Com form factor integrates directly into Panduit's modular faceplate, surface-mount box, and patch panel systems without tools or adapters. The module's spring-loaded retention clips snap into standard Mini-Com cutouts, and the front-facing port orientation supports both horizontal and vertical mounting. For fiber-to-the-desk rollouts in open-plan offices or trading floors, installers typically use keyed modules at the wall outlet and transition to non-keyed infrastructure at the floor distributor or telecom room. The duplex LC interface supports bidirectional 10 Gb links over OM4 to 550 meters, 40 Gb to 150 meters, and 100 Gb to 150 meters when using parallel optics breakout—sufficient for most campus backbone and distributed antenna system feeds. Each module ships individually and packs ten per carton for large-scale deployments.

RoHS compliant and backed by Panduit's physical layer warranty, the CMDFDBDBDLCZIW is specified for LAN backbones, storage area networks, and any application where OM4 multimode fiber must be terminated with controlled physical access. The keyed adapter system scales across an entire cabling plant—pair this module with Panduit's F-keyed LC field-term connectors and color-matched dust caps to enforce port security from the user outlet all the way to the equipment patch cord.
