Panduit CMDBRDRDDLCZIW Keyed LC Duplex Adapter Module

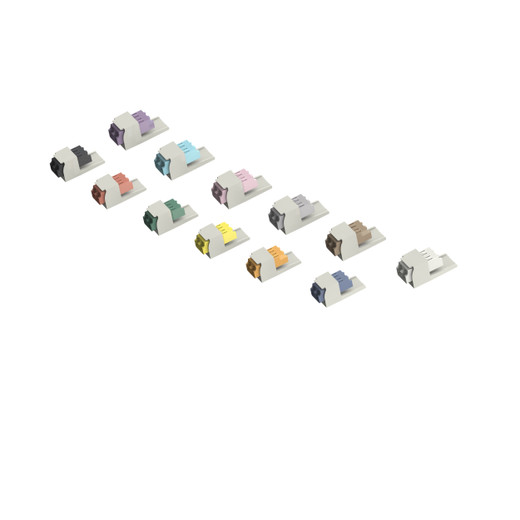

Panduit CMDBRDRDDLCZIW Mini-Com® Keyed B-Red/Non-Keyed LC Duplex Adapter Module

The Panduit CMDBRDRDDLCZIW delivers a keyed-to-non-keyed fiber transition point for installations requiring physical layer security on the user side while maintaining standard connectivity on the service side. This Mini-Com® module houses a duplex LC adapter in a single-width footprint with integrated panel retention clips, coupling two LC duplex connectors through precision-aligned zirconia split sleeves. The Keyed B-Red user interface mates only with matching keyed components, preventing unauthorized fiber connections or accidental cross-patching in multi-tenant datacenter environments, government facilities, or any deployment where physical access control extends to the patch panel. The non-keyed service side accepts standard LC duplex connectors, simplifying backbone and cross-connect wiring without forcing keyed hardware throughout the entire infrastructure.

Key Features

• Keyed B-Red user side / Non-keyed service side for asymmetric security deployment
• Duplex LC coupling in one Mini-Com® module space — doubles port density vs. simplex adapters
• Integrated panel retention clips — tool-free snap-in installation, no separate hardware
• Zirconia split sleeves — lower insertion loss and better durability than phosphor bronze
• OM4 fiber support — validated for 10/40/100GBASE-SR multimode applications
• TIA/EIA-605 FOCIS-10 compliant — ensures interoperability with standards-based LC connectors
• International white module color — matches global Mini-Com® faceplate and outlet standards
• Small form factor (SFF) design — compatible with high-density patch panels and outlet boxes

The keyed adapter system adds a mechanical safeguard to fiber infrastructure by requiring physical key alignment before mating. In facilities with multiple fiber networks (production + guest, classified + unclassified, or per-tenant isolation), keying prevents accidental or deliberate cross-connection at the physical layer — a mistake that bypass validation at the switch won't catch. The Keyed B-Red designation is part of TIA-606-B's color-coded keying standard; B-Red typically indicates multimode fiber in secure or restricted-access zones. Because the service side remains non-keyed, backbone trunks and inter-building feeds use standard LC connectors, avoiding the cost and logistics complexity of keying every cable plant termination. Zirconia ceramic sleeves maintain core alignment across temperature cycling and repeated insertions better than metal alternatives, critical in access-controlled spaces where connector cleaning and inspection intervals may be longer due to restricted technician access.

This adapter fits Panduit's Mini-Com® modular system, which uses a common footprint across copper keystones, fiber adapters, A/V inserts, and blanks. One faceplate or patch panel frame accepts any combination of modules, so adding fiber to an existing copper outlet or mixing keyed and non-keyed ports in the same panel requires no special plates or tools. The single-width duplex design doubles usable port count in the same rack space compared to simplex SC or ST adapters — a 24-port 1U panel houses 24 duplex LC connections (48 fibers), compared to 24 simplex connections with older form factors. Common deployments include fiber-to-the-desk in financial trading floors or government offices where user-side keying prevents rogue devices, storage area network (SAN) edge connections where FC-to-Ethernet gateways require controlled fiber access, and public safety networks where radio backhaul aggregation points use keyed user ports to isolate agency-specific links.

The module ships RoHS-compliant and exceeds TIA/EIA-568-B.3 performance requirements for fiber optic adapters, ensuring insertion loss, return loss, and intermateability meet or beat industry minimums. Panduit's Mini-Com ecosystem includes matching keyed and non-keyed faceplates, surface-mount boxes, angled and flat panel frames, and labeling systems, allowing you to build a consistent keyed fiber layer across wall outlets, consolidation points, and rack-mounted distribution without mixing incompatible hardware families or improvising retention methods.
