Panduit CMDSWTLCZBL LC Duplex Adapter Module

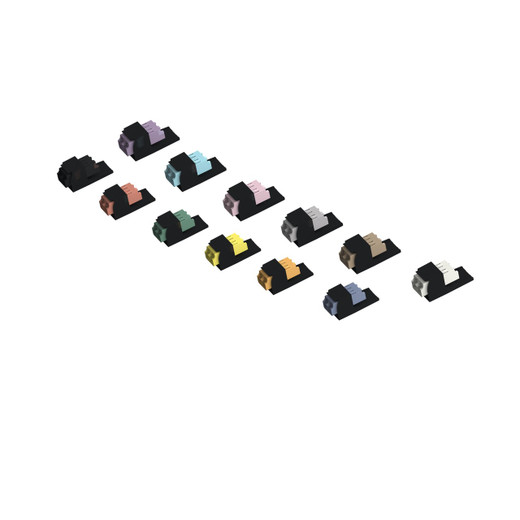

Panduit CMDSWTLCZBL Mini-Com® LC Duplex Adapter Module

The Panduit CMDSWTLCZBL is a white LC duplex fiber adapter in a black Mini-Com® module housing, engineered for OM3/OM4 multimode installations where panel density and retention matter. Commercial integrators deploying fiber-to-the-desk, LAN backbones, or SAN connectivity rely on this adapter's integrated panel clips and FOCIS-10 compliance to eliminate the play and signal loss common in generic keystone adapters. Each module couples two LC duplex connectors in a single Mini-Com space, cutting faceplate real estate in half compared to simplex designs while maintaining full TIA/EIA-568-B.3 performance margins.

Key Features

• White zirconia split sleeves for OM3/OM4 multimode — maintains sub-0.3 dB insertion loss across 850 nm and 1300 nm wavelengths
• Integrated panel retention clips lock into Mini-Com frames without snap-in wobble or accidental ejection during cable pulls
• LC duplex configuration in single-module footprint — doubles port density versus simplex LC keystones
• Black module housing with white fiber adapter body — quick visual confirmation of multimode terminations in mixed single-mode/multimode racks
• TIA/EIA-605 FOCIS-10 compliant ferrule alignment — interoperable with all LC-terminated patch cords meeting industry geometry specs
• Non-keyed design for standard LC connector insertion (not physical-contact keyed variants)
• RoHS compliant construction — meets campus disposal and recycling mandates

The CMDSWTLCZBL uses precision-molded zirconia ceramic split sleeves, not the phosphor bronze sleeves found in economy adapters. Zirconia's hardness (9 on Mohs scale) resists ferrule wear during repeated plug cycles, critical in troubleshooting environments where techs swap patch cords dozens of times per incident. The white ceramic also provides immediate visual contrast against the black module body, letting you distinguish multimode ports from single-mode (typically beige/blue ceramic) at a glance during late-night cutovers. The adapter's duplex LC interface follows FOCIS-10 pin-and-socket geometry, ensuring that any LC patch cord meeting TIA-604-10-B ferrule specs will seat cleanly without jamming or core misalignment. This matters when you're supporting a mix of patch-cord vendors — Panduit, Corning, CommScope — and can't afford field failures caused by out-of-spec adapter tolerances.

Deploy the CMDSWTLCZBL in Mini-Com surface-mount boxes, flush faceplates, or patch panels wherever OM3 or OM4 40G/100G links terminate. A typical use case: 40GBASE-SR4 spine-to-leaf connections in a datacenter row, where each LC duplex adapter breaks out to four parallel 10G lanes over OM4 trunk cable, then reconverges at the switch QSFP+ transceiver. The adapter's integrated panel clips eliminate the need for separate retention hardware, so you can snap modules into a 48-port Mini-Com panel in minutes rather than threading individual screws. In campus fiber-to-the-desk installs, the duplex-in-one-space design lets you deliver both transmit and receive fibers to a single wallplate opening, leaving the second keystone slot open for copper or a second fiber drop without requiring oversized dual-gang boxes. Storage-area-network integrators use this adapter to patch 16 Gbps Fibre Channel links between SAN switches and disk arrays, where the OM4 rating supports the 125-meter structured-cabling run from equipment room to storage closet without modal dispersion penalties.

The CMDSWTLCZBL ships as a single module (carton quantity 10) and exceeds TIA/EIA-568-B.3 insertion-loss and return-loss limits, typically measuring 0.2 dB insertion loss and better than -40 dB return loss in field tests with quality LC patch cords. That performance headroom is the difference between a link that certifies at 95% margin and one that fails intermittently under temperature swings or after a year of dust accumulation. For integrators billing T&M service calls, reliable passive components like this adapter reduce your truck-roll rate and preserve the customer relationship. The black module housing integrates cleanly with Panduit's Mini-Com ecosystem — the same frames, faceplates, and labels you're already stocking for copper keystone jacks — so you maintain a unified aesthetic and parts inventory across voice, data, and fiber installations.
