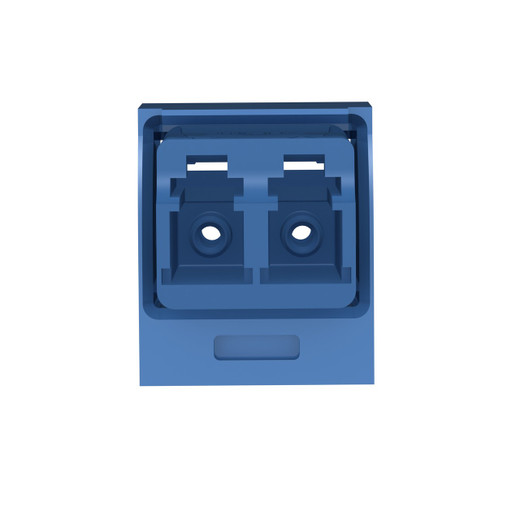

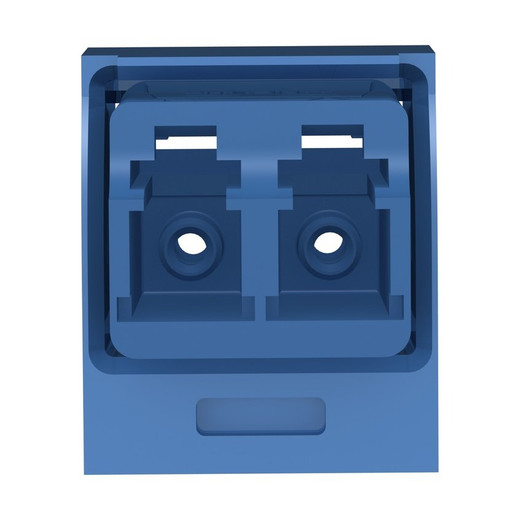

Panduit CMDSLCZBU Mini-Com LC Duplex Singlemode Adapter Module

The Panduit CMDSLCZBU delivers a singlemode LC duplex termination point in a single Mini-Com module footprint, solving high-density fiber patching challenges in datacenters, structured cabling headends, and fiber-to-the-desk deployments. This blue-coded adapter couples two LC duplex connectors in one module space with zirconia ceramic split sleeves for low insertion loss and long-term reliability. Integrated panel retention clips lock the module into Mini-Com faceplates, surface-mount boxes, and patch panels without tools, ensuring secure mounting in high-vibration server room environments. TIA/EIA-605 FOCIS-10 compliance guarantees interoperability with standards-compliant LC connectors across all major fiber infrastructure brands.

Key Features

• Singlemode LC duplex adapter in single Mini-Com module footprint for maximum port density
• Zirconia ceramic split sleeves provide <0.3 dB insertion loss and >20 dB return loss per TIA-568-B.3
• Integrated panel retention clips snap into Mini-Com frames without screws or adhesive
• Blue housing and blue fiber adapter for TIA-598-D OS2 singlemode identification
• TIA/EIA-605 FOCIS-10 compatible for universal LC connector mating
• Duplex configuration handles transmit and receive pairs in one module (two fibers, four LC ports)
• RoHS compliant, exceeds TIA/EIA-568-B.3 mechanical and optical requirements

Zirconia split sleeves are the critical precision component in this adapter — unlike phosphor bronze sleeves found in economy adapters, zirconia ceramic maintains tight ferrule alignment across thousands of mating cycles without wear-induced signal degradation. Each sleeve is manufactured to FOCIS-10 tolerance specs, ensuring the 125-micron singlemode fiber cores align within 1 micron for minimal back-reflection. The duplex configuration consolidates transmit and receive fiber pairs into a single module space, letting you terminate eight LC duplex links in a standard six-port Mini-Com faceplate where legacy SC adapters would only fit four. Blue color coding follows TIA-598-D standard for OS2 singlemode fiber (9/125µm), preventing accidental cross-connection with orange-coded multimode infrastructure during MAC operations. The blue module housing is molded from high-impact polycarbonate that won't crack when snapped into metal or plastic faceplates, even in cramped punch-down spaces.

This adapter is designed for permanent structured cabling installations where singlemode fiber provides the bandwidth and distance required for 10GBASE-LR, 40GBASE-LR4, or 100GBASE-LR4 Ethernet links between server racks, storage arrays, or campus backbone runs up to 10 km. Integrators deploy these modules in Mini-Com angled faceplates mounted at datacenter cabinet tops for clean horizontal cable management, in surface-mount boxes for mid-span splice enclosures, and in high-density consolidation point panels where fiber aggregation occurs. The duplex form factor matches the pinout of SFP+, QSFP+, and SFP28 transceiver duplex LC interfaces, eliminating the polarity concerns that arise with individual simplex adapters. Panel retention clips provide 15 lb pull-out resistance, meeting NEC 300.11(A) support requirements without additional strain relief when used with plenum-rated cable boots. Unlike adhesive-mount adapters that fail in thermal cycling environments (server rooms that swing between 65°F and 80°F), these clips maintain secure retention across the full operating range.

The CMDSLCZBU is third-party tested to exceed TIA/EIA-568-B.3 mechanical endurance specs (500+ mating cycles) and meets RoHS lead-free material restrictions for government and healthcare facility compliance. Panduit's zirconia sleeve manufacturing process delivers batch-consistent insertion loss under 0.25 dB typical, reducing the link budget margin you need to allocate in 10 km backbone designs. This module integrates into the same Mini-Com ecosystem used for copper keystones, A/V connectors, and blank inserts, letting you build mixed-media faceplates (fiber + copper + HDMI) without switching mounting systems. When you need reliable singlemode LC termination in a standardized, field-swappable module that survives the realities of production network environments, the CMDSLCZBU provides the mechanical robustness and optical performance integrators depend on for long-term infrastructure investments.
