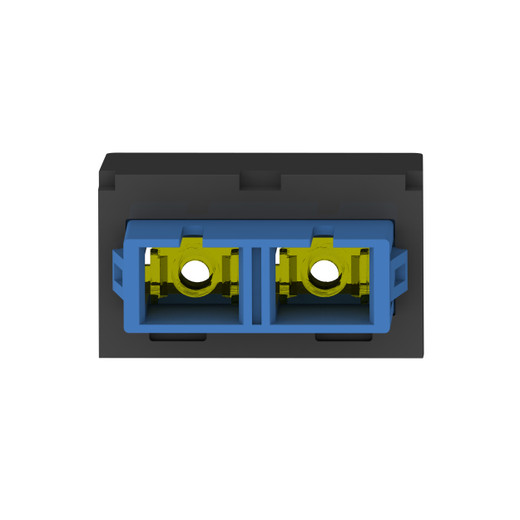

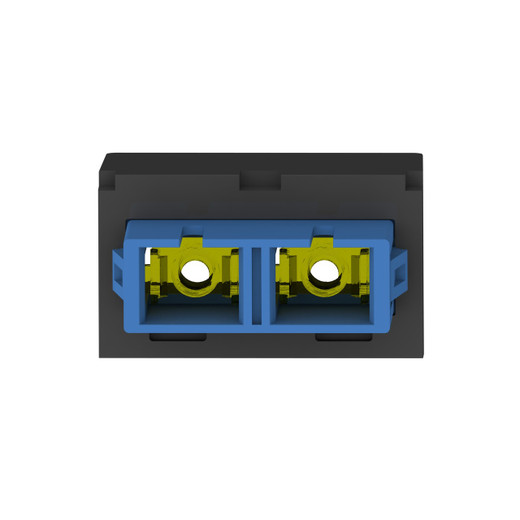

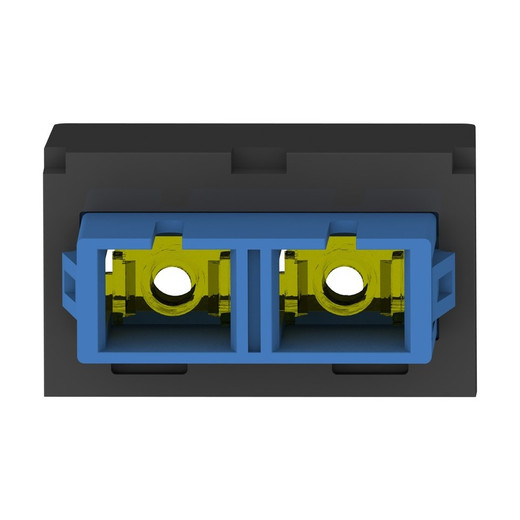

Panduit CMDBUSCZBL Mini-Com SC Duplex Singlemode Adapter Module
The Panduit CMDBUSCZBL delivers a two-connector SC duplex footprint in a single Mini-Com module space, halving the panel real estate required for singlemode fiber terminations. Designed for OS2 singlemode deployments, this blue-coded adapter integrates panel retention clips that lock into Mini-Com panels, faceplates, and surface-mount boxes without secondary hardware. Zirconia ceramic split sleeves maintain sub-0.2 dB insertion loss across the duplex connection, while TIA/EIA-605 FOCIS-10 compliance ensures interoperability with SC connectors from any manufacturer. For integrators managing high-density fiber runs in enterprise datacenters or campus backbones, this module eliminates the need for bulkhead adapters and external housings.
Key Features
- SC duplex singlemode adapter in single Mini-Com module footprint — doubles panel density vs. traditional SC simplex modules
- Zirconia ceramic split sleeves for consistent sub-0.2 dB insertion loss and long-term alignment stability
- Integrated panel retention clips lock into Mini-Com panels, faceplates, and surface-mount boxes without screws or secondary fasteners
- TIA/EIA-605 FOCIS-10 compliant — mates with any standard SC duplex connector regardless of manufacturer
- Blue adapter body with black module housing — color-coded for instant singlemode OS2 fiber identification per TIA-598-C
- Improved protective cap design shields ceramic ferrules from contamination during storage and pre-deployment staging
The CMDBUSCZBL uses zirconia ceramic split sleeves rather than phosphor bronze — a critical distinction for singlemode links where core-to-core alignment tolerances sit at 9 microns. Zirconia's hardness (9 on Mohs scale) resists ferrule wear across thousands of mate/demate cycles, maintaining alignment precision that phosphor bronze sleeves cannot sustain in high-traffic patch environments. The adapter's duplex design aligns both transmit and receive paths in a single housing, simplifying polarity management in bidirectional 10G/40G/100G links. FOCIS-10 compliance guarantees the physical interface dimensions — key body length, ferrule protrusion, and alignment sleeve placement — match the reference standard, so the module accepts SC connectors terminated with Panduit, Corning, CommScope, or any TIA-compliant tooling. The integrated retention clips engage Panduit's Mini-Com panel slots with a snap-lock mechanism rated for 10 lbf pullout force, eliminating the panel-bowing issues common with screw-mount LC quads in over-subscribed 1U patch panels.
Mini-Com's modular architecture lets you build custom-density fiber panels by mixing SC duplex, LC duplex, and MPO modules in the same frame — a requirement for phased datacenter migrations where 1G/10G singlemode SC links coexist with 40G/100G MPO trunks. The CMDBUSCZBL fits all Panduit Mini-Com housings: 24-port angled panels (CPP24WBLY), 48-port 1U flat panels (CPP48WBLY), single-gang faceplates (CFPE6), and four-port surface boxes (CBXFIW). Blue adapter color coding aligns with TIA-598-C for OS2 singlemode fiber, reducing cross-connect errors in mixed-mode environments where OM3/OM4 multimode (aqua) and OS2 singlemode (blue) adapters occupy the same rack. Duplex SC remains the dominant connector in legacy enterprise fiber installations and ISP demarcation points — this module provides backward compatibility for newer Mini-Com infrastructure interfacing with pre-2010 fiber plants. For new builds, pairing these adapters with Panduit's SC duplex field-polish or factory-terminated assemblies delivers a fully traceable single-vendor solution from patch cord to backbone trunk.
Each CMDBUSCZBL ships individually with a protective cap installed, packaged ten modules per carton for bulk panel buildouts. RoHS compliant construction meets EU and California environmental mandates for equipment deployed in multinational facilities. Pair with Panduit's OptiCam SC field-term connectors or pre-terminated fiber assemblies to maintain end-to-end performance documentation — critical for Tier III/IV datacenter acceptance testing where per-link insertion loss budgets are contractually binding at 0.75 dB or lower.
