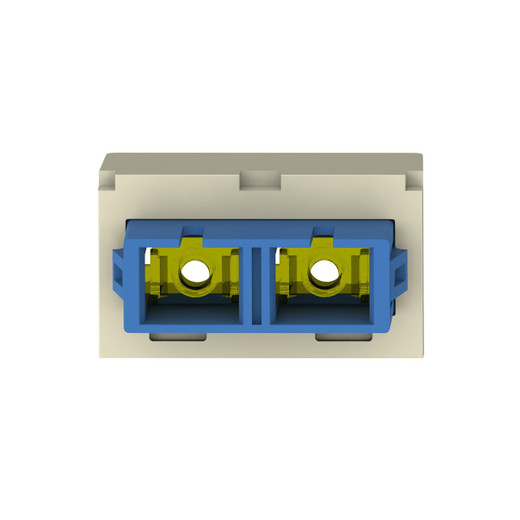

Panduit CMDBUSCZEI Mini-Com SC Duplex Singlemode Adapter Module
The Panduit CMDBUSCZEI is a Mini-Com SC duplex adapter module engineered for singlemode fiber terminations in security and IT infrastructure. This small form factor (SFF) adapter couples two SC duplex connectors within two Mini-Com module spaces, delivering FOCIS-10 compliant connectivity for high-density fiber installations. The module features a blue fiber adapter body for instant singlemode identification, electric ivory housing, and precision-ground zirconia ceramic split sleeves that maintain insertion loss below 0.3 dB across thousands of mating cycles.
Key Features
- SC duplex singlemode adapter with zirconia ceramic split sleeves for low insertion loss and long-term durability
- TIA/EIA-605 FOCIS-10 compliant design ensures interoperability with industry-standard SC connectors
- Integrated panel retention clips secure the module without additional hardware or tools
- Blue adapter body provides instant visual identification of singlemode fiber per TIA-598 color coding
- Small form factor design occupies two Mini-Com module spaces in standard panels and faceplates
- Electric ivory module housing matches Panduit Mini-Com system aesthetics for commercial installations
Zirconia ceramic split sleeves are the critical component in this adapter's performance. Unlike phosphor bronze sleeves that can deform under repeated mating cycles, zirconia maintains precise bore diameter and concentricity over thousands of insertions. This translates to consistent optical performance in high-traffic patch points—security control rooms where operators swap feeds between monitors, or datacenter cross-connects where circuit changes are routine. The FOCIS-10 compliance guarantees that any SC duplex connector meeting the same spec will mate correctly, eliminating the field compatibility issues that arise when mixing adapter types from different manufacturers. The integrated retention clips snap into Mini-Com panels with tactile feedback and hold against pull forces up to 15 lbs, sufficient to resist accidental cable snags during adjacent work without the sharp edges or separate retaining screws found in older keystone designs.
This adapter is built for the Panduit Mini-Com modular system, which spans patch panels, wallplates, surface mount boxes, and consolidation enclosures. In a typical security installation, you might populate a 48-port Mini-Com patch panel with these SC duplex modules alongside copper keystones for PTZ camera control, creating a unified termination point for both fiber camera runs and local network drops. The two-space footprint means a standard 48-position panel accommodates 24 SC duplex adapters—enough for 12 bidirectional singlemode links or 24 camera home-runs with buffer. The electric ivory color is specified for commercial and institutional environments where neutral tones are mandated, and the blue adapter insert provides the singlemode visual cue required by structured cabling standards without relying on labeling that degrades or falls off. For AV integrators running singlemode fiber for 4K/8K video distribution or HDBaseT extenders over long distances, this module offers the same reliability as rack-mount fiber panels but in a form factor that fits standard electrical boxes and furniture-mount frames.
The CMDBUSCZEI ships individually and is sold by the carton of 10, balancing inventory cost with the volume needed for mid-sized deployments. TIA-568 structured cabling standards require that fiber adapters meet FOCIS alignment specs and maintain polarity under environmental stress, both of which this module addresses through its zirconia sleeve construction and snap-fit retention system. When you need SC duplex singlemode terminations that integrate with Panduit's broader Mini-Com ecosystem and deliver consistent sub-0.5 dB insertion loss across installation and maintenance cycles, this adapter provides the mechanical precision and standards compliance that commodity keystone adapters often lack.
