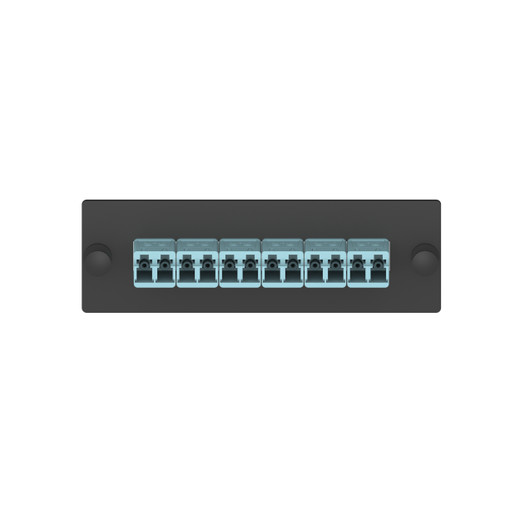

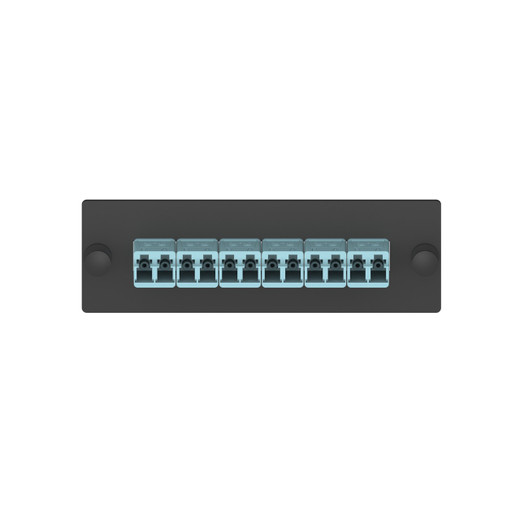

Panduit FAP12WAQLCZ 12-Port LC OM4 Fiber Adapter Panel

The Panduit FAP12WAQLCZ is a modular fiber optic adapter panel engineered for high-density patching in datacenter, telecom, and security control room environments. Part of the Opticom™ fiber platform, this module houses 12 LC adapter positions with aqua blue housings—the industry-standard color code for OM4 multimode fiber. Designed for front-loading installation in Panduit modular patch panel frames, the FAP12WAQLCZ delivers enterprise-grade connectivity for 40/100 Gigabit Ethernet backbones, IP camera fiber runs, and SAN fabric patching. Each adapter features precision-ground zirconia ceramic split sleeves to ensure low insertion loss and high return loss across OM1, OM2, OM3, OM4, and OS2 fiber types. The compact 4.3" × 1.38" footprint allows flexible configuration of fiber density without wasting rack space, while the modular design simplifies moves, adds, and changes in populated racks.

Key Features

• 12 LC simplex adapter positions in aqua blue (OM4 850nm-optimized color standard)
• Precision zirconia ceramic split sleeves for <0.3 dB insertion loss, >20 dB return loss typical
• Front-loading modular design fits Panduit FP-series patch panel frames and high-density enclosures
• Multi-generation fiber support: OM1, OM2, OM3, OM4, and OS2 single-mode compatibility
• Compact 4.3" W × 1.38" H module conserves rack space in high-density installations
• Black plastic housing with aqua adapter identification—instant visual confirmation of OM4 rating
• EIA-310/IEC 60297 compliant for integration with standard 19" rack-mount systems
• RoHS-compliant construction for environmentally responsible deployments

Zirconia ceramic split sleeves are the critical performance element in fiber optic adapters. The FAP12WAQLCZ uses precision-ground zirconia (ZrO₂) sleeves that align mating ferrules to submicron tolerances, ensuring repeatable insertion loss below 0.3 dB and return loss above 20 dB under field conditions. This level of performance is essential for 40GBASE-SR4 and 100GBASE-SR4 applications, where link budgets are tight and every tenth of a dB matters. The aqua blue adapter housing is not cosmetic—it's the TIA-598-C standard color code for OM4 multimode fiber (850nm laser-optimized, 550-meter reach at 10 Gbps). This instant visual identification prevents cross-patching errors between OM3 (aqua) and OM2 (orange) or OM1 (orange/gray) infrastructure during upgrades or troubleshooting. Importantly, the adapter is backward compatible: you can terminate OM3 or OM2 fiber into these OM4-rated adapters without performance penalty, providing a migration path as you incrementally upgrade backbone links to 40/100G speeds.

The front-loading modular form factor is designed for real-world rack access constraints. In a fully populated 42U rack with cable management arms and zero-U PDUs, rear access is often impossible without depopulating adjacent equipment. The FAP12WAQLCZ slots into Panduit's modular patch panel frames from the front, so you can add capacity, swap modules, or reconfigure port layouts without disrupting neighboring gear. Common deployment scenarios include IP surveillance camera backbone networks (where 12-strand fiber runs from camera zones back to a central switch stack), SAN fabric patching in hyperconverged infrastructure, and 40GBASE-SR4 breakout applications (where a single QSFP+ transceiver fans out to four 10G LC connections via MTP/MPO-to-LC breakout cables). The 4.3" width is optimized for Panduit's FP-series frames, which accept multiple adapter modules side by side to build custom port densities—mix LC, SC, MTP, and copper modules in the same 1U or 2U frame based on your patching requirements rather than committing to a fixed-port-count panel.

EIA-310 and IEC 60297 compliance ensures this adapter panel integrates with any standards-compliant 19" rack system, whether you're installing in open-frame telecom racks or enclosed server cabinets. RoHS compliance addresses environmental and regulatory requirements for EU and California installations. The plastic construction keeps module weight low—critical when mounting dense fiber arrays vertically in two-post racks where load capacity per RU is limited. Opticom is Panduit's enterprise fiber platform, engineered for low-loss, high-reliability performance in mission-critical 24/7 networks where downtime costs are measured in thousands of dollars per minute. The FAP12WAQLCZ gives you field-proven adapter quality, standards-based compatibility, and modular flexibility to scale fiber patching infrastructure as your IP camera counts, server densities, and bandwidth requirements grow.
