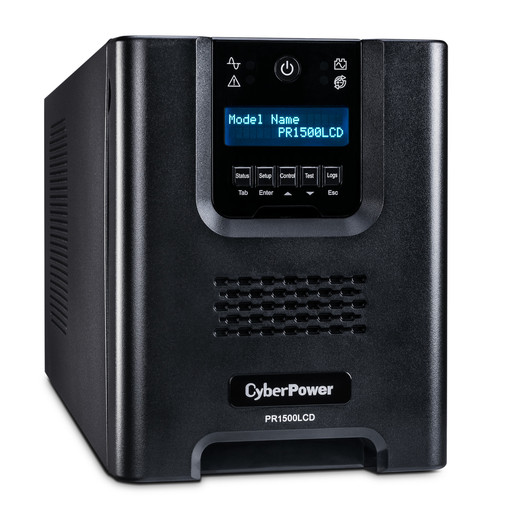

CyberPower PR1500LCD Smart App Sinewave UPS System
The CyberPower PR1500LCD delivers 1500VA/1500W of sine wave battery backup and automatic voltage regulation in a mini-tower chassis designed for servers, network infrastructure, and telecom installations running Active PFC power supplies. Line interactive topology with GreenPower bypass efficiency and hot-swappable battery design addresses the twin challenges of runtime protection and zero-downtime battery service—critical when you're protecting rack-mount equipment that can't tolerate hard power events or the modified square wave output that legacy UPS units produce.
Key Features
- True Sine Wave Output: Clean 120VAC waveform compatible with Active PFC server and network PSUs that reject modified square wave
- 1500VA/1500W Capacity: Powers typical single-server or 2-3 switch stack through outages and brownouts
- Automatic Voltage Regulation (AVR): Corrects voltage sags and surges without switching to battery, extending battery life and eliminating nuisance alerts
- Hot Swappable Battery: Replace sealed lead-acid cells under load without powering down protected equipment
- Extendable LCD Panel: Multifunction display pulls out from the chassis for at-a-glance load monitoring and diagnostics
- 8 NEMA 5-15R Outlets: All outlets provide battery backup and surge protection—no sacrificed battery-only positions
- USB/Serial/SNMP Connectivity: Native serial and USB for local monitoring; add optional RMCARD205 for SNMP integration with network management platforms
- GreenPower UPS Bypass: Reduces power consumption and heat output when battery backup isn't required
- Emergency Power Off (EPO): Remote shutdown capability for data center safety protocols
The PR1500LCD uses line interactive topology with automatic voltage regulation to handle the 80-120% input voltage window that kills unprotected equipment and drains batteries on inferior buck-boost designs. When input voltage sags below 106VAC or spikes above 132VAC, the AVR circuit switches taps on an isolation transformer to bring output back into the ±5% regulation window—without touching the battery. You avoid the finite charge-discharge cycle count burn and the 10-15ms transfer time that reboots network switches with inadequate holdup capacitance. For voltage events inside the correction window, the AVR handles it silently; outside the window, the unit transfers to battery in under 4ms, well within the 8-16ms holdup time of modern Active PFC supplies.
Sine wave output is the non-negotiable requirement for any UPS protecting Active PFC loads. Server PSUs, PoE switches, and VoIP gateways use power factor correction circuits that assume a sinusoidal AC waveform and draw current only at the peak of the cycle. Feed them a modified square wave (the stepped approximation that budget UPS units produce) and the PFC circuit sees it as severe distortion—triggering overcurrent faults, audible buzzing from the input chokes, and in some cases immediate shutdown or long-term component damage from harmonic heating. The PR1500LCD generates a true sine wave via pulse-width modulation during battery operation, delivering the same clean waveform these power supplies expect from utility mains. You can load it to the full 1500W rating with modern rack servers and not worry about derating or compatibility—critical when your actual runtime depends on how efficiently the load draws from the battery.
Runtime performance follows the industry-standard inverse curve: 4.7 minutes at full 1500W load, 15.1 minutes at 750W half load. That spread tells you this unit is sized for graceful shutdown, not ride-through. In a typical deployment protecting a rackmount server (400-600W at normal utilization) plus a 24-port PoE switch (150-250W under load), you'll see 18-25 minutes of battery time—enough to flush write caches, close database transactions, and execute an orderly OS shutdown before the battery protection low-voltage cutoff. For longer runtime requirements, CyberPower's external battery pack expands the internal 2×12V/17Ah sealed lead-acid array, though at that point you're often better served by stepping up to a 2200VA or 3000VA chassis with native higher-capacity cells. The hot-swappable battery tray is the operational win here: pull the front bezel, slide out the battery cartridge, swap in a fresh pack, slide it back—protected equipment never sees an input interruption because the UPS switches to bypass mode during the 30-second swap window.

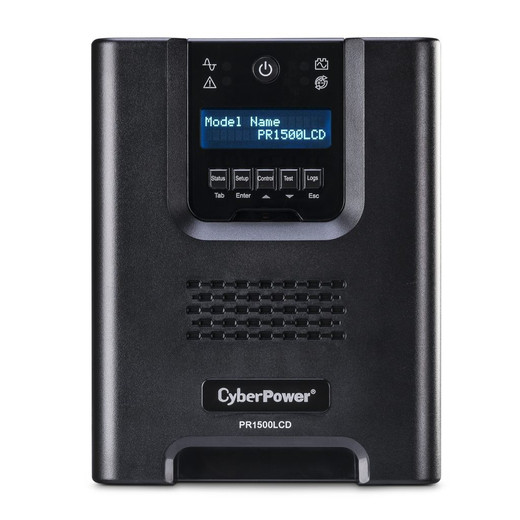

The extendable LCD control panel solves the visibility problem inherent in mini-tower and rackmount UPS installations. Shove the unit under a desk or rack-mount it at the bottom of a 42U cabinet and you lose the ability to check load percentage, battery charge state, or input voltage without crouching or pulling the unit forward. CyberPower's hinged display extends 4 inches from the chassis on a tethered cable, letting you read real-time metrics—input voltage, output voltage, load wattage, load percentage, battery voltage, runtime estimate, and fault codes—without moving the UPS. The display also provides the interface for configuration settings: audible alarm enable/disable, outlet grouping for sequenced shutdown, and low-battery warning threshold. For integrators managing multiple sites, this cuts 5 minutes off every service call compared to hunting for the power button and cycling through a two-button interface on a recessed panel.
Connectivity options cover local monitoring and enterprise integration. The rear panel provides both DB9 serial and USB-B ports for direct connection to a protected server or NAS. CyberPower's PowerPanel software (Windows, macOS, Linux) supports automatic shutdown sequences triggered by low-battery conditions, logs power events to syslog, and provides email/SMS alerts for prolonged outages. For centralized monitoring across distributed installations, the optional RMCARD205 SNMP/HTTP management card slides into the rear expansion slot and exposes the UPS as a network-attached device with its own IP address. You can poll it via SNMP from your existing network monitoring platform (PRTG, Nagios, Zabbix), access a web GUI for remote configuration, or integrate it with VMware vCenter or Hyper-V for automated VM migration during extended outages. The EPO (Emergency Power Off) contact closure input ties into data center shutdown sequences—if your fire suppression system activates or your generator transfer switch fails, a dry-contact signal to the EPO terminals forces an immediate UPS shutdown regardless of battery state.
GreenPower UPS Bypass is CyberPower's implementation of high-efficiency mode. When input power quality is within tolerance (voltage and frequency stable, no harmonic distortion), the UPS can optionally route input power directly to the output, bypassing the inverter and running only the monitoring and control circuits. This cuts internal power consumption from 65-75W to under 10W, reducing cooling load in telco closets and extending the operating temperature range. The tradeoff is a longer 10ms transfer time to battery (versus 4ms in normal double-conversion or line-interactive mode), so you enable it only on loads with robust holdup—typically network switches and storage arrays with >20ms input capacitance. For server loads, leave it disabled and accept the efficiency penalty to preserve the 4ms transfer spec.
The PR1500LCD includes EMI/RFI filtration across all eight outlets, suppressing the electrical noise that PoE injectors and switch-mode power supplies inject back onto the mains wiring. This is the common-mode and differential-mode hash that causes ground loops in analog CCTV installations, induces hum in analog audio systems, and degrades Ethernet signaling on marginal cable runs. The LC filter network on the input and output stages shunts frequencies above 150kHz to ground, cleaning up both the power feeding your equipment and the noise your equipment generates. In mixed installations where you're protecting network switches in the same rack as IP cameras powered by PoE injectors, this suppression prevents the injector's switching transients from coupling into the camera's Ethernet data pairs—a common cause of intermittent link drops that are invisible in packet captures but obvious in PoE voltage ripple measurements.
Physical design is mini-tower: 6.7″W × 8.7″H × 17″D, 54 pounds loaded. That footprint fits under a desk, on a shelf in a network rack, or floor-mounted in a telco closet. The 6-foot attached NEMA 5-15P input cord is long enough to reach a wall outlet from under-desk placement but not so long that you're coiling up excess cable (a potential inductor that can cause resonance with capacitive loads). Eight NEMA 5-15R outputs are all battery-backed and surge-protected—CyberPower doesn't split outlets into battery-only and surge-only groups, so you don't sacrifice positions for non-critical peripherals. Outlets are spaced at standard 1.5-inch centers, tight enough that wide wall-wart transformers will block adjacent positions; if you're powering six devices with barrel connectors, plan to use a power strip or surge-protected outlet expander fed from one UPS outlet.
The sealed lead-acid battery pack uses two 12V/17Ah cells in series for 24VDC nominal. CyberPower rates these for 3-5 year service life at 25°C ambient, with expected life dropping by half for every 10°C increase in operating temperature. In a climate-controlled office or server room running 20-22°C, plan on 4-6 years before you see runtime drop below 80% of rated capacity. In a non-climate-controlled telco closet hitting 30-35°C in summer, plan on 2-3 years. The UPS monitors battery voltage and internal resistance, flagging a low-battery warning at 10.5VDC per cell and executing low-voltage cutoff at 9.0VDC to prevent deep discharge damage. When you see the battery replacement icon on the LCD, you've got 6-12 months before runtime degrades noticeably; order the RB1270X4A replacement kit and swap it during a maintenance window. Hot-swappable design means you don't need to schedule downtime—just pull the old pack and slide in the new one.
The PR1500LCD is UL1778 listed for uninterruptible power supplies, cUL 107.3 recognized for use in Canada, FCC DOC Class A compliant for commercial electromagnetic emissions, Energy Star certified for standby efficiency, and RoHS compliant for hazardous substance restrictions. CyberPower backs it with a 3-year limited warranty covering defects in materials and workmanship, plus a $375,000 Connected Equipment Guarantee covering damage to properly connected equipment caused by UPS failure (subject to terms and conditions). That coverage ceiling is appropriate for the loads this UPS protects—a $4,000 server plus $1,500 in network switches—but inadequate if you're protecting a $50,000 storage array; step up to a commercial-grade UPS with higher guarantee limits for those installations.
This UPS solves the core problem for commercial integrators and IT installers protecting modern Active PFC server and network loads: clean sine wave output, fast transfer time, serviceable batteries, and local+remote monitoring in a package that fits under-desk or rack-adjacent installations. It's the right answer when your server PSU has a power factor correction label, your switch draws 200-600W, and your client expects 15-20 minutes of graceful shutdown time without paying for a 3000VA rackmount chassis.
