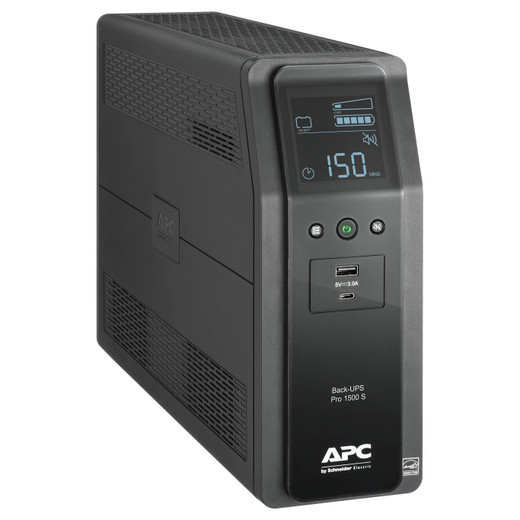

APC by Schneider Electric Back UPS PRO 1500VA Sinewave - BR1500MS2

APC by Schneider Electric BR1500MS2 Back-UPS PRO 1500VA Sine Wave Uninterruptible Power Supply

Overview

The APC Back-UPS PRO BR1500MS2 is a 1500VA / 900W line-interactive UPS delivering pure sine wave output — the waveform that active PFC power supplies in modern servers, NVRs, and workstations actually require for clean operation under battery. At 1500VA, it comfortably covers a mid-density surveillance recorder with several drives, a PoE switch, and a workstation simultaneously, giving you the bridge time to either ride out a short outage or execute a controlled shutdown on a longer one. The 8ms typical / 10ms maximum transfer time is fast enough that most connected equipment never perceives a transition to battery.

Key Features

• Pure Sine Wave Output: Unlike simulated or stepped approximations, the BR1500MS2 generates a true sine wave on battery. NVRs and servers with active PFC supplies can behave unpredictably — or simply refuse to run — on modified sine wave UPS units. Pure sine eliminates that risk entirely and protects your investment in downstream hardware.
• 1500VA / 900W Capacity: The 900W real-power rating is the number that matters for load planning. A typical 16-channel NVR with four HDDs, a managed PoE switch, and a monitoring workstation lands comfortably under 600W — leaving headroom for brief inrush events without tripping the overload alarm.
• Line-Interactive Topology with Automatic Voltage Regulation (AVR): The unit corrects browndowns and over-voltages in the range of 88–147V without switching to battery. In commercial environments where panel voltage sags during HVAC compressor starts or building load shifts, AVR keeps downstream equipment running on conditioned utility power rather than consuming battery reserve on every fluctuation.
• 10-Outlet Configuration — 6 Battery + 4 Surge Only: Six NEMA 5-15R outlets provide full battery backup and surge protection; four additional NEMA 5-15R outlets deliver surge-only protection for peripherals like monitors or non-critical networking gear. This lets you prioritize battery runtime on the equipment that actually needs it.
• 1080J Surge Energy Rating with Full-Time Multi-Pole Noise Filtering: The 1080-joule rating handles the transient energy common in commercial electrical environments. The multi-pole noise filter targets 5% IEEE surge let-through with zero clamping response time — relevant for sensitive analog and IP equipment sharing circuits with motors or HVAC equipment.
• Coaxial Data Line Protection: The included CATV/SATV/modem/audio-video coaxial path protection is a direct benefit for surveillance deployments where coax runs for analog cameras or cable modems share the same equipment rack or IDF closet. Transients on coax lines are a common and underestimated failure mode.
• Multi-Function LCD Status Console: The front-panel LCD provides real-time load percentage, battery charge level, estimated runtime, and input/output voltage — no software install required to know your actual headroom. For a server room or utility closet without a permanently stationed technician, this is the at-a-glance status you need.
• USB Connectivity for Graceful Shutdown: The USB management port integrates with APC's PowerChute software (and most UPS-aware operating systems via USB HID) to trigger automatic, ordered shutdowns before battery depletion. Uncontrolled power loss is one of the leading causes of NVR filesystem corruption — this connection is worth configuring.
• 16-Hour Recharge Time: After a full discharge, the internal lead-acid battery recovers to rated capacity in approximately 16 hours. Plan maintenance windows accordingly — a unit discharged during a long outage won't be at full runtime capacity for a full shift afterward.
• 45 dBA Acoustic Output: At 45 dBA, the BR1500MS2 is quiet enough for office-adjacent or low-noise IDF deployments without requiring additional acoustic treatment. It's louder than a fanless appliance but well within tolerance for any space that already houses a standard server or managed switch.

Integration and Compatibility

The NEMA 5-15P input plug connects to any standard 15A, 120V North American outlet. The 12A maximum input current draw fits within the 80% derate rule on a 15A circuit without requiring a dedicated circuit, though a dedicated circuit is always the cleaner choice for critical loads. USB HID compatibility means the BR1500MS2 presents as a standard USB UPS to Windows Server, Linux (NUT), and most NVR operating systems without additional drivers — enabling automatic shutdown scripting natively. The included coaxial cable and USB cable mean the data-line and management connections are ready out of the box.

Battery replacement uses a single user-replaceable module (RBC quantity: 1). APC publishes replacement battery SKUs against this unit, so end-of-battery-life does not mean end-of-UPS-life. Designed battery life is 3–5 years under normal operating conditions; actual service life varies with ambient temperature, cycle frequency, and average load percentage.

Frequently Asked Questions

Q: Does the BR1500MS2 produce a true sine wave on battery, or a simulated sine wave?

A: True pure sine wave. This matters for equipment with active PFC power supplies — including most modern NVRs, servers, and workstations — which can malfunction or shut down when connected to modified sine wave UPS units.

Q: What is the real-power (watt) capacity of the BR1500MS2?

A: 900W. Always plan your load against the watt figure, not the VA rating. A 1500VA UPS is not a 1500W UPS — 900W is the hard limit for continuous real power delivery.

Q: How many outlets does the BR1500MS2 provide, and which are battery-backed?

A: Ten total NEMA 5-15R outlets. Six provide full battery backup plus surge protection. Four provide surge protection only — useful for monitors, printers, or other peripherals that don't need runtime extension.

Q: Can the BR1500MS2 be managed remotely or integrated with shutdown software?

A: Yes via the USB port. The unit communicates as a standard USB HID UPS device, compatible with APC PowerChute software and with native UPS management in Windows Server, macOS, and Linux (NUT). This enables automated graceful shutdown before battery depletion.

Q: Is the battery user-replaceable, and what is the expected battery life?

A: Yes — the single internal battery module is user-replaceable without tools beyond what's provided. APC specifies a design battery life of 3–5 years. Actual life depends on ambient temperature, discharge depth, and cycle frequency.

Q: What is the transfer time when switching from utility to battery?

A: 8ms typical, 10ms maximum. This is fast enough that the majority of connected equipment, including most UPS-compatible NVRs and servers, will not experience a perceptible interruption during the transition.

Marty Allison

The BR1500MS2 addresses the one spec that eliminates most consumer-grade UPS units from serious consideration in surveillance and security deployments: pure sine wave output. I've seen too many NVR installs where the integrator spec'd a cheaper modified sine wave unit, the active PFC supply in the recorder rejected it on battery, and the system went dark during the exact event it was supposed to protect against. The BR1500MS2 closes that door.

Technical Highlights:

• 8ms / 10ms Transfer Time: The 8ms typical transfer sits well within the hold-up time of virtually every commercial power supply — connected equipment rides through the transition without a brownout reset. The 10ms hard maximum is the contractual ceiling you can plan against.
• AVR Range 88–147V: This input voltage window handles the real-world undervoltage and overvoltage events that drive battery cycling on lesser units. Browndowns to 88V are corrected on utility power — battery stays charged for actual outages, not routine sags.
• 1080J Surge + Multi-Pole Filtering: The 1080-joule rating combined with full-time multi-pole noise filtering at 5% IEEE let-through is the combination that matters for mixed analog/IP environments. It's not just about joule capacity — clamping response time and filtering depth determine whether sensitive DSPs and processors see clean power.

Deployment Considerations:

• At 27.6 lb and tower form factor, the BR1500MS2 sits on a shelf or floor — not rack-mounted. If your IDF or security head-end uses a standard equipment rack, verify you have a flat surface or a dedicated UPS shelf before ordering; a separate rack-mount kit may be needed.
• The 16-hour recharge time after full discharge is the gotcha for high-availability deployments. If you experience a multi-hour outage that fully depletes the battery, the unit won't be back to rated runtime for most of the next business day. Facilities with frequent long outages should consider a model with a larger or redundant battery configuration.

For a small-to-mid surveillance head-end — a 16-channel NVR, a managed PoE switch, and a monitoring workstation in a retail back office or commercial IDF — the BR1500MS2 hits the right combination of sine wave output, outlet count, and load capacity without overbuilding. It's specifically the right call when the downstream equipment includes any active PFC power supply and you can't afford a filesystem corruption event on the recorder.
