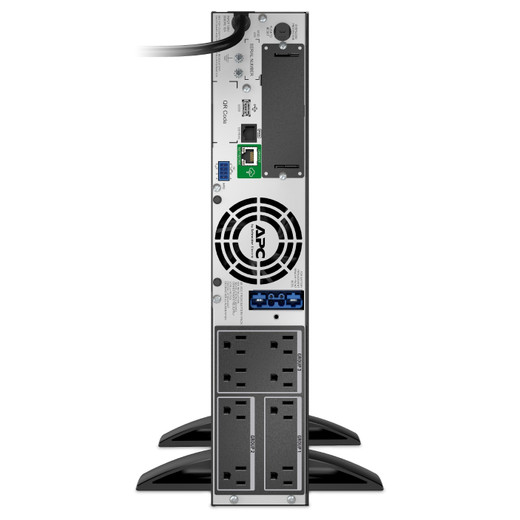

APC by Schneider Electric UPS X 1500VA Rack Tower LCD 120V US - SMX1500RM2UCUS

APC by Schneider Electric SMX1500RM2UCUS Rack/Tower LCD UPS 1500VA 120V

Overview

The SMX1500RM2UCUS is a 1500VA / 1350W uninterruptible power supply from APC by Schneider Electric that converts between 2U rack and tower form factors — a practical advantage in mixed environments where today's rack space might be tomorrow's server closet. Rated at 1440VA input and delivering 1350W of true output power, this unit sits in the sweet spot for protecting rack-mounted UPS systems for NVR stacks, PoE switches, access control servers, and mid-density networking gear running on standard 120V North American circuits. The front-panel LCD puts runtime estimates, load percentage, and battery status in plain view without requiring software access — a real operational benefit in shared-use data closets where not everyone has network access to a management interface.

Key Features

• 1350W / 1440VA Output: The gap between VA and watt ratings matters — the 1350W true power rating means you're not over-subscribing when running high-power-factor loads like switching power supplies common in IP surveillance and network equipment. Size your load to 80% of 1350W (roughly 1,080W) for runtime headroom and battery longevity.
• Dual Rack/Tower Convertible Form Factor: Ships ready for either orientation without additional hardware. In a 2U rack slot it keeps your PDU layout clean; stood vertically it fits alongside a tower NVR or under a desk. Eliminates the need to buy separate rack and tower models for different sites on the same deployment.
• 8x NEMA 5-15R Output Receptacles: Eight standard 15A outlets — enough to protect a mid-size NVR, a PoE switch, a patch panel power supply, and several ancillary devices in a single UPS. No proprietary outlet shapes, no adapters required on standard North American 120V deployments.
• NEMA 5-15P Input Plug: Standard 15A plug connects directly to a wall outlet or rack PDU without a step-down cord. Compatible with virtually every North American panel — no special circuit required for typical surveillance or access control closets.
• Lead-Acid Battery Technology: Valve-regulated sealed lead-acid (VRLA) chemistry is field-replaceable, widely available, and tolerates the float-charge duty cycle of a continuously online UPS without degrading prematurely. Replacement batteries are a standard procurement item — no proprietary packs, no extended lead times.
• Front LCD Status Display: Real-time load, battery charge, and estimated runtime on a local display means field technicians can assess UPS health during a site walk without logging into software. Particularly useful in security closets where network management access is restricted.
• 120V Input/Output: Designed exclusively for North American 120V infrastructure — the SMX1500RM2UCUS is not a multi-voltage unit. Verify your panel voltage before installing; this is not the right choice for international deployments or facilities running 208V/240V circuits without a separate step-down transformer.
• Black Finish: Matches standard rack enclosure aesthetics — blends into black equipment racks without the visual mismatch of beige or silver units.

Integration & Compatibility

The SMX1500RM2UCUS is part of APC by Schneider Electric's Smart-UPS X line, which supports optional network management cards for SNMP monitoring and graceful shutdown integration with Windows, Linux, and VMware environments. The eight NEMA 5-15R receptacles will accommodate the majority of PoE switches, NVRs, access control panels, and IP intercoms running on standard North American 120V power. For deployments requiring remote power monitoring and UPS event alerting, the accessory slot accepts APC network management card modules (sold separately) — a worthwhile addition in any unmanned equipment room. Facilities running higher-density or 208V/240V equipment should evaluate higher-capacity or voltage-flexible models in the Smart-UPS X family rather than adapting this unit.

Frequently Asked Questions

Q: What is the true watt (W) output of the SMX1500RM2UCUS, and how does it differ from the VA rating?

A: The SMX1500RM2UCUS is rated at 1350W true output power and 1440VA apparent power. Most modern IT loads (switching power supplies) operate at a power factor close to 1.0, so the effective usable capacity is approximately 1350W. Size your connected load to 80% of that figure — around 1,080W — to preserve runtime and battery life.

Q: Can the SMX1500RM2UCUS be installed in a standard 19-inch rack?

A: Yes. The SMX1500RM2UCUS occupies 2U in a standard 19-inch rack enclosure. It can also be used in tower orientation without additional hardware, making it flexible for both rack rooms and standalone deployments.

Q: How many devices can I connect to the SMX1500RM2UCUS?

A: The unit provides 8 NEMA 5-15R output receptacles on standard 120V circuits. The practical limit is your total watt draw — keep combined load under approximately 1,080W (80% of 1,350W rated capacity) for safe continuous operation and reasonable runtime.

Q: Is the SMX1500RM2UCUS compatible with 208V or 240V circuits?

A: No. The SMX1500RM2UCUS is designed specifically for 120V North American infrastructure with a NEMA 5-15P input plug. It is not suitable for 208V or 240V circuits without a step-down transformer, which is not recommended. Select a different model from the Smart-UPS X family for higher-voltage applications.

Q: Does the SMX1500RM2UCUS include a network management interface?

A: The base unit does not include a network management card, but the Smart-UPS X platform supports optional APC network management card accessories for SNMP monitoring, graceful shutdown, and remote alerting. These are sold separately and slot into the expansion bay on this unit.

Q: What battery type does the SMX1500RM2UCUS use, and is it field-replaceable?

A: The unit uses a sealed lead-acid (VRLA) battery. Lead-acid UPS batteries are a standard commodity item with wide availability and are designed to be field-replaceable — no specialized tools or proprietary packs required.

Eden Phillips

The SMX1500RM2UCUS is a unit I recommend specifically when a site needs reliable 120V UPS protection in a space-constrained closet where the room layout hasn't been finalized. The rack/tower convertible form factor is the deciding spec here — you're not locked into a rack posture on day one, and you're not carrying a tower-only unit that becomes an awkward fit when the customer eventually racks their equipment. At 1350W true output, it handles a mid-size NVR, a managed PoE switch, and a couple of access control power supplies simultaneously without being oversized for the load.

Technical Highlights:

• 1350W True Power Output: At a power factor close to 1.0 for modern IT loads, the 1350W rating means you're working with real watts, not inflated VA. Budget 80% (1,080W) as your practical ceiling for continuous load — that's enough headroom to run a 6-channel NVR plus a 24-port PoE switch plus a couple of ancillary devices without stressing the battery during a grid event.
• 8x NEMA 5-15R Outlets: Eight standard North American 15A receptacles eliminate the need for outlet adapters or additional PDU strips in most security and AV closet deployments. Every outlet on this unit is protected — there's no split between surge-only and battery-backed receptacles to manage.
• 2U Rack / Tower Convertible: The 3.5-inch height (8.9 cm) in rack orientation consumes 2U — a reasonable trade in a standard 12U or 18U wall-mount enclosure. Conversion to tower requires no tools and no additional bracket kit.

Deployment Considerations:

• The NEMA 5-15P input plug is rated for 15A circuits only — confirm your branch circuit breaker is 15A (not 20A NEMA 5-20) before finalizing the installation. On a 15A circuit, your combined UPS + connected load draw should not exceed 12A continuous (80% rule) or you'll trip the breaker before the UPS even engages.
• This is a 120V-only unit. If the facility has any 208V single-phase infrastructure (common in newer data closets with high-density PoE switches), this model is not appropriate — the input plug physically won't fit a NEMA 6-20 or L6-30 receptacle, but verify the panel before purchasing if there's any uncertainty.

The SMX1500RM2UCUS is the right call for a security integrator deploying a mid-density surveillance closet in a commercial office or retail environment — where the panel is standard 120V, the rack may or may not exist yet, and the customer needs a serviceable, field-battery-replaceable unit rather than a disposable one.
