APC by Schneider Electric BGM1500B-US Midnight Gaming UPS 1500VA 900W
Overview
The APC by Schneider Electric BGM1500B-US is a 1500VA / 900W line-interactive uninterruptible power supply built around the Midnight (black) gaming aesthetic with the Reactor CIRCLE.10 outlet configuration. With ten total outlets — six battery-backed NEMA 5-15R and four NEMA 5-15R surge-only — it gives you enough protected ports for a gaming rig, monitor, networking gear, and peripherals without running a separate surge strip. If you've had a PC or console killed by a power event, the BGM1500B-US is the UPS category worth evaluating before the next one.
The unit fits desktop deployments: at 4.13" wide, 16.06" deep, and 11.46" tall, it sits beside or under a desk. It is not rack-mountable, so data-center or AV-rack deployments should look elsewhere in the APC by Schneider Electric catalog.
Key Features
- 1500VA / 900W Capacity: The 900W true power rating is what matters for load planning — VA is a ceiling, watts is the real constraint. A typical gaming PC drawing 300–400W plus a 27" monitor at ~50W leaves you comfortable headroom without loading the UPS above 50%, which extends battery runtime and longevity.

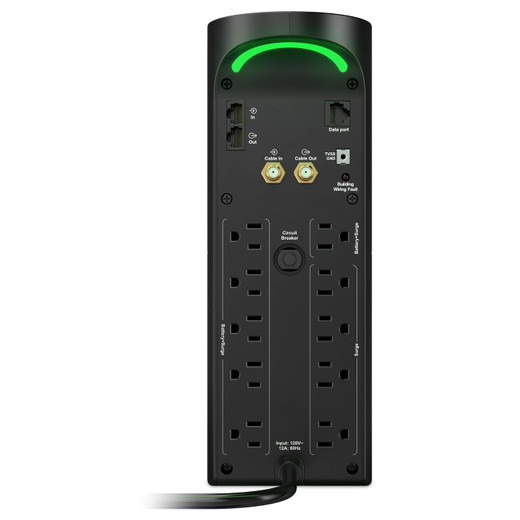

- 10-Outlet Layout (6 Battery + 4 Surge): The six battery-backed NEMA 5-15R outlets keep your PC, monitor, and router alive during an outage. The four surge-only NEMA 5-15R outlets handle devices that don't need runtime — desk lamps, phone chargers, a printer — without burning battery capacity on them. This split is a real-world convenience that most entry-level UPS units skip.
- Runtime at Varied Loads: At 100W (a single monitor or a light NAS), the BGM1500B-US runs approximately 90 minutes — long enough to work through a brief outage or save and shut down gracefully. At 300W (a mid-range gaming PC under moderate load), runtime drops to roughly 25 minutes. At 600W (a high-draw system), expect about 10 minutes. Full 900W load yields 4–5 minutes — enough for a controlled shutdown, not for extended operation. Match your actual draw to the curve when evaluating runtime expectations.
- Lead Acid Battery: The sealed lead acid chemistry is field-proven, replaceable, and widely available. The trade-off: it's heavier than lithium alternatives and requires a 16-hour recharge after a full discharge — plan for overnight recovery if the battery runs down completely.
- USB Interface: The USB port connects to a host PC or Mac for software-based shutdown automation. Most UPS management software (including APC's PowerChute) can monitor load, schedule shutdowns, and log events over this connection — useful if you want graceful OS shutdown during extended outages rather than a hard cut.
- Midnight Black Enclosure: The BGM1500B-US (often searched as BGM1500B US) ships in a black chassis designed to match dark gaming setups. This is a cosmetic differentiator over standard beige/grey APC tower units in the same VA class — functionally equivalent internally.
Integration & Compatibility
The BGM1500B-US uses standard NEMA 5-15R outlets, so any North American device with a standard two- or three-prong plug connects directly — no adapter required. The USB management port is compatible with APC PowerChute software on Windows and macOS for automated shutdown and monitoring. It is not compatible with rack-mounted deployments, managed PDU configurations, or environments requiring an RS-232 or network (SNMP) management card. For those use cases, the APC Smart-UPS line with AP9630/AP9641 network management cards is the appropriate product family.
Review your planned load against the runtime curve before purchasing. If your primary concern is protecting a high-draw workstation (600W+), the 10-minute runtime at that load is adequate for shutdown but not for continued operation. Lower-draw setups — streaming rigs, home office workstations, NAS devices — benefit most from the extended runtime this unit provides at lighter loads. For broader UPS and uninterruptible power supply options, including rack-mount and higher-capacity tower units, compare models across the full line. If you're pairing this with a gaming or workstation build and need guidance on power conditioning and surge protection for the full system, the outlet split here handles most desktop scenarios without additional hardware.
Frequently Asked Questions
Q: What is the actual watt capacity of the BGM1500B-US, and how does it relate to the 1500VA rating?
A: The BGM1500B-US is rated at 900 watts. The 1500VA figure is the apparent power ceiling; 900W is the real power (true wattage) limit you should use for load planning. Sum the wattage of every device you plan to connect to the battery-backed outlets — if it exceeds 900W, you need a higher-capacity unit.
Q: How long will the BGM1500B-US run on battery at typical gaming PC loads?
A: At 300W (a representative mid-range gaming PC under moderate load), runtime is approximately 25 minutes. At 100W (a monitor or light peripherals only), it runs roughly 90 minutes. At 600W (a high-draw system), expect about 10 minutes. Full 900W load yields 4–5 minutes — sufficient for a graceful shutdown.
Q: Is the BGM1500B-US rack-mountable?
A: No. The BGM1500B-US is a tower/desktop form factor only and is not rack-mountable. If you need a rack-mount UPS in the same capacity class, look at APC's Smart-UPS RT or SRT series in a 2U or 3U rack form factor.
Q: How long does the battery take to recharge after a full discharge?
A: The lead acid battery requires approximately 16 hours to reach full charge after a complete discharge. If you anticipate multiple outages in close succession, factor that recharge window into your planning.
Q: What type of management connectivity does the BGM1500B-US provide?
A: It includes a USB interface for connection to a host computer. This enables UPS monitoring and automated graceful-shutdown via compatible software (such as APC PowerChute). There is no built-in network (SNMP/Ethernet) management port — for remote network-based monitoring, you would need a unit that supports an optional network management card.
Q: What outlets does the BGM1500B-US include and what is the difference between them?
A: The unit has ten NEMA 5-15R outlets total: six are battery-backed (providing both surge protection and runtime during an outage) and four are surge-only (providing surge protection but no battery runtime). Connect your PC, monitor, and network equipment to the battery-backed outlets; use the surge-only outlets for devices that don't need runtime, like chargers or printers.
The BGM1500B-US sits at an interesting intersection: it's a consumer-branded gaming UPS, but the underlying specs — 1500VA / 900W capacity, sealed lead acid battery, USB management port, and a 6+4 outlet split — are the same building blocks you'd evaluate in a small-office or workstation deployment. The cosmetic differentiation is the black chassis and the Reactor CIRCLE.10 outlet layout, but the electrical fundamentals are what matters for any serious evaluation.
Technical Highlights:
- Runtime Curve at 300W: 25 minutes at a 300W load covers a realistic mid-range workstation draw. That's enough time for a UPS management client to detect the outage, log events, and execute a graceful OS shutdown — which is the primary failure mode protection most deployments actually need, not extended battery operation.
- 6 Battery-Backed / 4 Surge-Only Split: The outlet split is practical. Putting a printer or phone charger on a battery-backed outlet wastes capacity and shortens runtime for devices that actually need it. The four surge-only outlets handle incidental loads cleanly.
- 16-Hour Recharge Time: This is the specification most buyers overlook. Lead acid at this capacity class takes 16 hours to recover from a full discharge. In environments with frequent or extended outages, that recharge window matters — a unit that runs down at 6 PM isn't fully recovered until 10 AM the next day.
Deployment Considerations:
- Load planning is the critical step before purchase: add up the wattage (not VA) of every device connecting to the battery-backed outlets. At 300W total draw you get ~25 minutes; at 600W that drops to ~10 minutes. Most buyers underestimate their actual draw at peak.
- The USB management port requires software installation on the host machine to enable automated shutdown. Without software configured, the UPS will keep the outlets live until the battery is exhausted — the graceful-shutdown capability is opt-in, not automatic.
This unit is well-suited to a single-workstation home office or gaming setup where the goal is graceful shutdown protection and surge isolation for a 200–400W system draw. It is not the right tool for always-on server infrastructure, rack environments, or any deployment where the 16-hour recharge window or the absence of network management would be a liability.
