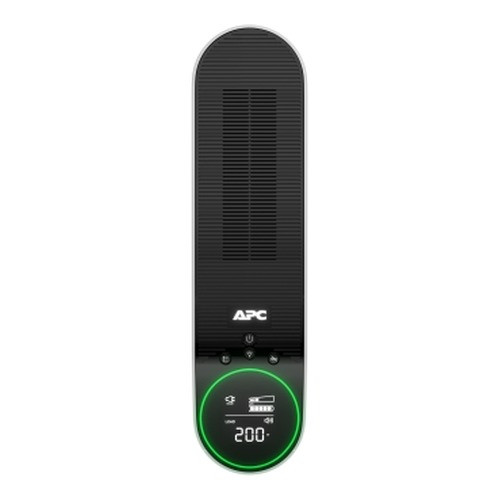

APC Gaming Back-ups 10 Outlet 1500VA Pure Sinewave 120V Arctic (white) and - BGM1500-US

APC by Schneider Electric BGM1500-US Pure Sine Wave 1500VA Gaming UPS

Overview

The APC BGM1500-US is a 1500VA / 900W pure sine wave uninterruptible power supply designed for gaming rigs, workstations, and sensitive electronics that demand clean, stable power. Unlike stepped-approximation (simulated sine wave) UPS units, the BGM1500-US delivers a true pure sine wave output — the same waveform your wall outlet provides — which matters when protecting power-factor-corrected (PFC) power supplies common in modern gaming PCs, high-end monitors, and network equipment. With 10 total outlets and a sealed lead-acid battery, it covers both battery-backed protection and surge-only needs across a full desktop setup.

If you have been searching for the BGM1500-US (often searched as BGM1500 US), this is the Arctic (white) colorway of APC's Gaming Back-UPS line.

Key Features

• 1500VA / 900W Pure Sine Wave Output: At 900W continuous capacity, the BGM1500-US can sustain a mid-to-high-end gaming PC, monitor, and peripherals simultaneously. Pure sine wave output prevents the coil whine, instability, and potential damage that simulated sine wave units can cause with active PFC supplies — a real concern if your PSU is 80 Plus Gold or better.
• 10-Outlet Configuration (6 Battery + 4 Surge): Six NEMA 5-15R outlets are battery-backed and surge-protected; four additional NEMA 5-15R outlets provide surge protection only. This split lets you prioritize battery runtime to your PC, NAS, or router while still protecting lower-priority gear like speakers or charging bricks on the surge-only bank.
• Runtime at Half Load (~14 Minutes): Running a 450W load — a typical mid-range gaming PC under moderate stress — the BGM1500-US provides approximately 14 minutes of runtime. That is enough to save your game, complete a safe shutdown, or ride out a brief outage. At full 900W load, expect roughly 4 minutes — plan accordingly if your system draws near the rated maximum.
• Lead-Acid Battery: The sealed lead-acid chemistry is field-proven, widely available for replacement, and does not require maintenance. When the battery ages out (typically 3–5 years depending on cycle count and ambient temperature), replacement cells are a commodity — you are not locked into a proprietary chemistry.
• Arctic (White) Finish: The BGM1500-US ships in a white colorway. If your setup or rack environment calls for a different finish, verify the colorway before ordering — APC offers alternate versions of this model.

Integration & Compatibility

The BGM1500-US uses standard NEMA 5-15R outlets, so it works with any North American 120V plug without adapters. Pure sine wave output makes it broadly compatible with active PFC power supplies, variable-speed fans, medical-grade equipment, and any load that specifies or benefits from a sine wave source. Most network switches and NVR appliances drawing under 900W total can also run protected on this unit, making it a viable shelf or rack UPS for small security deployments where a dedicated UPS for security equipment is warranted. For larger multi-camera recorder builds or enterprise edge deployments, consult a APC by Schneider Electric rack-mount line for higher VA ratings and network management cards. If your environment demands runtime monitoring or remote shutdown integration, verify that the BGM1500-US supports the communication interface your software requires before deployment — this model's management features are not fully specified in available evidence.

Frequently Asked Questions

Q: Does the BGM1500-US output a true pure sine wave or a simulated sine wave?

A: The BGM1500-US outputs a true pure sine wave. This is the correct choice for systems with active power-factor-corrected (PFC) power supplies, which are standard in most modern gaming PCs and workstations.

Q: How long will the BGM1500-US power my equipment during an outage?

A: At half load (450W), runtime is approximately 14 minutes. At full load (900W), runtime is approximately 4 minutes. Actual runtime will vary based on your connected load and battery age.

Q: How many outlets does the BGM1500-US have, and which are battery-backed?

A: There are 10 total NEMA 5-15R outlets: 6 are battery-backed with surge protection, and 4 are surge-only. Connect your most critical equipment to the battery-backed outlets.

Q: What is the total wattage capacity of the BGM1500-US?

A: The BGM1500-US is rated at 900 watts (1500VA). Do not connect a load exceeding 900W to the battery-backed outlets.

Q: Can the BGM1500-US be used to protect network or security equipment, not just gaming PCs?

A: Yes. The pure sine wave output and standard NEMA 5-15R outlets make it compatible with network switches, routers, NVR appliances, and other 120V equipment drawing under the 900W combined capacity.

Q: What color is the BGM1500-US?

A: The BGM1500-US ships in Arctic (white). If you require a different finish, check for alternate colorway variants in the APC Gaming Back-UPS line.

James Everett

The BGM1500-US hits the spec that matters most for modern gaming and workstation builds: pure sine wave output at 1500VA / 900W. I've seen too many integrators spec a simulated sine wave UPS to save $30, then spend hours troubleshooting why a high-end PSU is throwing instability errors or clicking on battery — active PFC supplies simply do not tolerate the stepped waveform. The BGM1500-US eliminates that failure mode entirely.

Technical Highlights:

• 900W Continuous Capacity: Covers a fully-loaded mid-range gaming PC (GPU + CPU under load) plus a monitor and peripherals with headroom to spare. Know your draw before you buy — sustained loads above 900W will trip the overload protection.
• 6 Battery-Backed Outlets: The 6/4 outlet split is practical for a full desk: PC, primary monitor, NAS or router on battery; printer, USB hub, and secondary monitor on surge-only. You are not giving up outlets just for surge protection.
• ~14 Minute Half-Load Runtime: At 450W — a realistic number for a gaming PC at idle-to-moderate load — 14 minutes is a genuine safety window, not a marketing number. At full 900W it drops to ~4 minutes, so do not expect to game through a long outage.

Deployment Considerations:

• Lead-acid batteries in desktop UPS units typically need replacement every 3–5 years. Budget for a replacement battery module and check APC's RBC (Replacement Battery Cartridge) compatibility for the BGM1500-US before the original cell degrades — do not wait until it fails under load.
• The BGM1500-US is rated 120V / North American outlets only. Confirm your installation site is on a 15A or 20A circuit; running 900W through a 15A circuit leaves little margin if other devices share the same breaker.

For a small-footprint security or prosumer workstation deployment — a single NVR, a managed PoE switch, and a workstation monitor — the BGM1500-US provides enough battery-backed capacity and clean sine wave output to protect the load without requiring a rack-mount solution.
