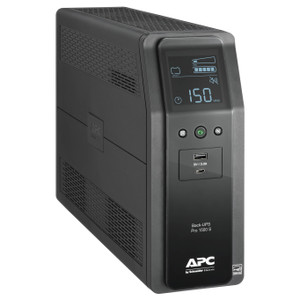

APC by Schneider Electric BGM1500B 1500VA Pure Sine Wave Tower UPS
Overview
The APC BGM1500B is a 1500VA / 900W line-interactive tower UPS that outputs a true pure sine wave — not the stepped approximation common in entry-level units. That distinction matters whenever you're protecting active PFC power supplies found in modern workstations, network video recorders, and edge compute nodes: those supplies can behave erratically or trip protective circuits on simulated sine wave output. The BGM1500B eliminates that risk entirely.
Ten NEMA 5-15R receptacles split across battery-backed and surge-only banks give you flexible load management on a single device. Four of those outlets are surge-only — useful for peripheral gear like monitors or charging stations that don't need runtime, keeping your battery capacity reserved for the devices that matter. Dataline protection covers both RJ-45 network and coaxial connections, which is easy to overlook in security and AV deployments where signal lines are just as exposed as power lines.
Key Features
- Pure Sine Wave Output: Unlike modified/simulated sine wave UPS units, the BGM1500B delivers a clean pure sine wave at all times — on battery and on line. Active PFC power supplies in servers, NVRs, and advanced workstations require this; feeding them a stepped wave invites overheating, odd shutdowns, or outright PSU failure.
- 1500VA / 900W Capacity: The 900W real-power ceiling covers most mid-tier workstation or multi-device security head-end setups. At full 900W load, expect roughly 3 minutes of ride-through — enough to execute a graceful shutdown or ride out a brief flicker. At half load (450W), runtime extends to approximately 12 minutes, giving you a usable work buffer during longer outages.
- 10 Outlets (6 Battery + 4 Surge-Only): Six battery-backed NEMA 5-15R outlets protect your core load; four additional surge-only outlets handle secondary gear without burning into your runtime budget. That separation is a practical wiring convenience on crowded equipment shelves.
- 8 ms Transfer Time: The line-interactive topology switches to battery in 8 milliseconds — well within the hold-up tolerance of virtually any switching power supply. Most PSUs hold output for 20 ms or more, so there's no detectable blip to connected equipment during the switchover.
- USB-A and USB-C Charging Ports: Integrated USB Type-A and Type-C ports mean you can charge phones, tablets, or handheld scanners directly from the UPS without consuming any of the 10 protected outlets. Useful in control room or dispatch environments where mobile devices need to stay charged during an event.
- Wide Input Voltage Range (78–150V AC): The BGM1500B tolerates significant input sag — down to 78V AC — before switching to battery. In facilities with brown-out conditions or undersized electrical infrastructure, this tolerance reduces unnecessary battery cycling and extends battery service life.
- RJ-45 and Coax Dataline Protection: Both network (RJ-45) and coaxial signal lines are protected against surge transients. In surveillance and AV installations where signal cabling runs alongside power in conduit or through exposed exterior paths, this is a meaningful layer of protection often skipped on generic surge strips.
- Dual 12V / 9000mAh Battery Configuration: Two internal 12V batteries in series produce the 24V DC bus the inverter draws from. The 9Ah capacity per cell supports the stated runtime figures and provides a known baseline for replacement planning — APC offers direct RBC replacement cartridges for field swaps without tools or downtime.
- Tower Form Factor, 40°C Max Operating Temp: The vertical tower footprint fits on a shelf or equipment stand without rack space. The 40°C maximum operating temperature allows deployment in non-climate-controlled utility closets and equipment rooms common in commercial and light-industrial installs, as long as ventilation is adequate.
Integration and Compatibility
The BGM1500B connects to a host system via USB for software-controlled graceful shutdown — compatible with APC's PowerChute software on Windows and Linux platforms, which monitors runtime, schedules shutdowns, and logs power events. The USB interface also allows the UPS to report status to most modern UPS-aware operating systems natively. The UPS and power protection category includes complementary APC models if your load exceeds the BGM1500B's 900W ceiling or requires rack-mount form factor. For deployments pairing this unit with IP surveillance equipment, review the IP camera and NVR lineup to size total load accurately before committing to this capacity tier. Input current draw is 12A, so a standard 15A dedicated circuit provides adequate headroom; a 20A circuit gives you additional margin if the outlet bank is shared. The PoE switch infrastructure powering your camera network is a natural companion load to protect alongside an NVR on this unit — verify combined wattage stays under 900W.
Frequently Asked Questions
Q: Does the BGM1500B output a true pure sine wave, or a simulated/modified sine wave?
A: The BGM1500B outputs a true pure sine wave — both when running on utility power and when on battery. This makes it compatible with active PFC power supplies found in modern workstations, servers, and NVRs that can malfunction on simulated sine wave UPS units.
Q: How long will the BGM1500B run on battery at full load versus half load?
A: At full 900W load, runtime is approximately 3 minutes — enough for a controlled shutdown. At half load (450W), runtime extends to approximately 12 minutes. Actual runtime varies with connected load and battery age.
Q: How many outlets does the BGM1500B have, and how are they split?
A: The BGM1500B provides 10 total NEMA 5-15R outlets: 6 are battery-backed with surge protection, and 4 are surge-only. The surge-only outlets handle secondary peripherals without consuming battery capacity reserved for your critical load.
Q: What is the transfer time when the BGM1500B switches to battery?
A: Transfer time is 8 milliseconds. The hold-up time of most switching power supplies exceeds 20ms, so connected devices typically experience no interruption during the switch to battery.
Q: Can the BGM1500B handle brown-out conditions without switching to battery?
A: Yes. The wide input voltage range of 78–150V AC allows the BGM1500B to regulate output and remain on utility power through significant voltage sags before engaging the battery, which reduces unnecessary battery cycling in facilities with unstable power.
Q: What USB charging ports does the BGM1500B include?
A: The BGM1500B includes both a USB Type-A and a USB Type-C charging port, allowing mobile devices to charge directly from the UPS without occupying any of the 10 protected power outlets.
The BGM1500B is one of the few consumer-positioned tower UPS units that ships with a genuine pure sine wave inverter rather than a stepped approximation — and that spec is load-bearing, not a marketing bullet, when you're protecting active PFC supplies. I see integrators routinely under-specify this and then troubleshoot random NVR reboots or PSU fan alarms that vanish the moment you put a sine wave source upstream.
Technical Highlights:
- Pure Sine Wave at All Times: The BGM1500B maintains sine wave output on battery, not just on line — active PFC power supplies in NVRs, workstations, and edge appliances require this; a stepped wave from cheaper units can trip overcurrent protection or cause thermal runaway in the PSU.
- 78–150V AC Input Range: That 78V lower bound is unusually wide for a unit in this class. In older buildings or end-of-run branch circuits where you routinely see 95–105V sags, the BGM1500B conditions without touching the battery — extending battery service intervals significantly compared to a unit that switches at 100V.
- Dual 12V 9Ah Battery Bank: The two-cell 24V DC configuration matches standard RBC replacement cartridges, so field replacement is straightforward. At 900W load the 9Ah capacity yields ~3 minutes; plan your shutdown scripts accordingly — 3 minutes is tight for a Windows Server graceful shutdown without pre-staging PowerChute with a 90-second headstart trigger.
Deployment Considerations:
- The 12A input draw on a standard 15A circuit leaves only 3A of headroom — dedicate the circuit to this UPS or verify the branch panel breaker is truly unshared before installation.
- At full 900W the 3-minute runtime is a hard floor; if your NVR plus PoE switch load approaches 700–800W, configure PowerChute to initiate shutdown at 50% battery, not 20%, or you risk a hard power loss before shutdown completes.
The BGM1500B fits cleanly in a small-to-mid surveillance head-end: NVR plus a managed PoE switch (combined ~400–600W typical), where the 12-minute half-load runtime gives you a genuine work buffer during a power event — not just a shutdown bridge.
