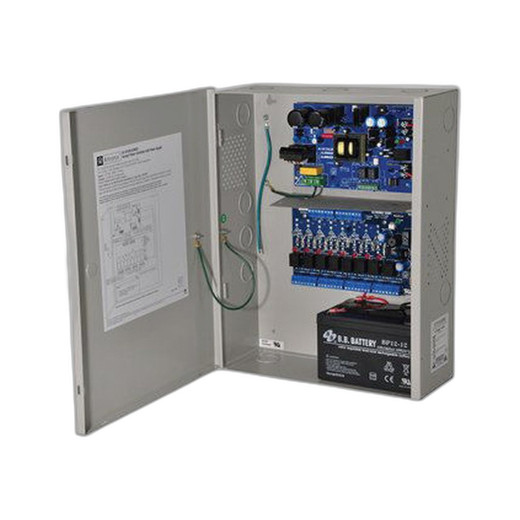

Altronix AL1012ACMCB220 12VDC Multi-Output Power Supply with Battery Backup
The Altronix AL1012ACMCB220 is a regulated 12VDC power supply with integrated battery backup support, designed to centralize power distribution across multi-subsystem security deployments. Operating from 220VAC input, it delivers a maximum of 10A output current split across eight isolated 12VDC outputs. The multi-output architecture is the key advantage here—each output operates independently, meaning a fault on one circuit (short, overload, or component failure) does not cascade to the others. This matters in real installations: a shorted reader circuit on one door won't disable cameras, access panels, or sensors on other circuits.
The AL1012ACMCB220 is built in a BC400 form factor enclosure suitable for wall mounting or cabinet installation, making it a practical choice for consolidating power in equipment racks, electrical rooms, or secure comms closets. Regulated output voltage with protection against transients and surge conditions means connected devices receive stable 12V regardless of minor mains fluctuations—important for edge devices like access readers and small sensor arrays that can be sensitive to voltage sag.
Key Features
- Eight isolated 12VDC outputs: Independent circuit protection on each output prevents a single load failure from taking down the entire distribution network. Enables fault isolation without relay-based switchover logic.
- 10A maximum current capacity: Total 10A distributed across eight outputs gives flexibility in load balancing. Typical door readers draw 0.5–1.5A; IP cameras under PoE draw less. Sizing calculation is straightforward: add up your parallel loads, confirm they stay under 10A total.
- Integrated battery backup support: Allows installation of an external battery (typically 12V lead-acid or lithium) to maintain 12VDC power to critical circuits during AC mains failure. Battery charging and switchover logic is built-in, so you're not relying on external battery chargers or UPS devices.
- 220VAC input voltage: Designed for international or high-voltage mains environments. If your facility runs 220V AC primary power (common outside North America, or in industrial/warehouse sites), this supply accepts that input natively—no step-down transformer required.
- FAI approval certification: UL equivalent certification for North American electrical code compliance, reducing approval friction for integrators working to fire/safety codes or commercial property insurance standards.
- Regulated output and surge protection: Output voltage regulation maintains 12VDC within manufacturer tolerances despite input variations or switching transients. Built-in surge suppression protects downstream equipment (readers, sensors, small cameras) from nearby lightning strikes or inductive load kickback.
- BC400 enclosure form factor: Standard Altronix industry form factor; compatible with existing DIN rail and wall-mount infrastructure. Reduces mounting and integration labor.
- Lifetime Limited Warranty: Covers manufacturing defects; standard terms typical for industrial power supplies in this segment.
Integration & Compatibility
The AL1012ACMCB220 works in distributed power architectures where a single consolidation point feeds multiple independent circuits. Common deployments include:
- Multi-reader access control: One output per door reader (up to 8 doors), each with independent circuit protection. If one reader draws excessive current, only that output shuts down—other doors remain powered.
- Surveillance and sensor aggregation: Combine power for local camera power injectors, alarm sensors, and intercom modules in a single distribution point rather than running separate 12V runs to each device.
- Perimeter and campus deployments: Act as a regional consolidation point in multi-building sites, reducing cable runs and centralizing backup battery support for critical perimeter circuits.
- Mixed legacy and modern loads: 12VDC is the common currency for older access panels, bell systems, and sensor arrays that pre-date PoE standardization. The AL1012ACMCB220 is agnostic to what device you plug in, provided it draws 12VDC at the rated current.
Battery backup selection and sizing depends on your hold-up time requirement: a small 7Ah sealed lead-acid battery will sustain critical circuits (perhaps 2–3A load) for 2–3 hours; larger lithium or flooded-cell batteries extend that to 8+ hours. The supply charges the battery continuously during normal AC mains operation.
When to Choose a Different Model
- Single high-current output required: If you need 10A on one circuit (e.g., a single large camera array or legacy alarm system), a single-output 12VDC supply may be simpler and lower cost. The eight-output design adds complexity and cost if you're not using isolation.
- Lower voltage (24VDC or 48VDC) devices: The AL1012ACMCB220 is fixed at 12VDC. If your infrastructure runs on 24V AC/DC or 48V PoE, you'll need a different Altronix model in the AL1000 family.
- Battery backup not required: If your deployment doesn't mandate hold-up during mains failure (e.g., non-life-safety loads in well-powered facilities), a simpler, lower-cost non-backup supply may suffice.
- Enclosed rack power distribution: For large multi-subsystem environments (10+ circuits), a dedicated power distribution frame with branch breakers may be cleaner than daisy-chaining multiple isolated outputs.
Frequently Asked Questions
Q: Can I use the AL1012ACMCB220 to back up PoE cameras?
A: Not directly. This supply provides 12VDC; PoE cameras expect 48V delivered over Ethernet. You would use the AL1012ACMCB220 to back up a PoE injector or switch that itself sources PoE. The supply's current capacity (10A total) would support 2–3 PoE injectors, each running one or two cameras, depending on wattage per injector.
Q: What happens if I connect more than 10A of load?
A: The outputs are current-limited and protected; they will shut down rather than go into uncontrolled overload or thermal runaway. Once you reduce the load, they recover. This is a safety feature, not a design to exceed.
Q: Is the AL1012ACMCB220 suitable for 110VAC input sites?
A: No. This model is rated for 220VAC input only. For 110VAC North American mains, you'll need an AL1012ACMCB (110VAC variant) or equivalent. Check the input voltage rating on your site AC supply before ordering.
Q: How large a battery can I connect?
A: The supply is designed to charge standard 12V lead-acid or sealed lithium batteries. Size selection depends on hold-up time and load current. A 7Ah battery with a 2A load yields roughly 3.5 hours; a 35Ah battery extends that to 17+ hours. Consult the datasheet or Altronix sizing guides for your specific load profile.
Q: Does the AL1012ACMCB220 support daisy-chaining or modular expansion?
A: No. It is a fixed eight-output unit. For more than eight circuits, you would install multiple AL1012ACMCB220 units fed from the same 220VAC source, or consider a larger power distribution frame if your facility can support it.
Q: Is the AL1012ACMCB220 compatible with my access control system?
A: If your system uses 12VDC readers and sensors, yes. Verify that your total load (sum of all connected devices in parallel) does not exceed 10A, and confirm that each individual output can handle the per-device current draw. Most legacy access panels, door strikes, and readers fall into this category, but confirm with your system documentation.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The AL1012ACMCB220 solves a specific problem in distributed access control and sensor networks: centralized backup power without single-point-of-failure cascades. The eight isolated outputs are not a marketing gimmick—they're a genuine operational advantage. In a multi-door facility, if a reader on output 3 shorts due to water ingress or a faulty strike solenoid, only that output will current-limit and shut down. Outputs 1, 2, 4–8 keep running. Without isolation, a short on any 12V rail would take down the entire infrastructure until someone physically traced and unplugged the bad device.
Technical Highlights:
- 10A distributed across 8 outputs: Typical door readers and sensors draw 0.5–1.5A each; cameras and larger solenoids pull 2–3A. The AL1012ACMCB220 can sustain 5–6 readers plus 2–3 cameras without thermal headroom concerns, depending on duty cycle. If your load is consistently hot (24/7 readers + continuous strike power), you're looking at 6–7A; anything above that, and you're pushing margins.
- 220VAC input compatibility: This is not a minor spec. If your facility operates on 220V AC (standard in Europe, Asia, industrial warehouses in North America), you avoid the cost and size of a step-down transformer. Direct 220V to regulated 12VDC is efficient and reduces BOM.
- Integrated battery charging logic: No external charger needed. Plug a 12V lead-acid or lithium battery into the backup terminals, and the supply automatically charges it during normal mains operation and switches to battery power on mains loss. Hold-up time depends entirely on battery size and load current—a conservative approach is 1.5–2 hours for critical circuits, which demands a 12–20Ah battery.
Deployment Considerations:
- Watch the per-output current limit: each output is protected, but if you daisy-chain too many devices on a single output, you'll hit the limit and the circuit will cut. Plan a load spreadsheet before installation. Identify which devices feed each output, and confirm no single output exceeds its safe headroom (typically 1.5–2A per output for sustained loads).
- Battery backup sizing is a common stumble: integrators often undersize the battery, thinking 3.5Ah is enough for a 2A load over 2 hours. That math works, but under real-world conditions (aging battery, cold weather, actual current draw higher than spec), you'll lose 15–30 minutes of hold-up. Oversize by 50% if your SLA requires more than 2 hours of critical-door backup.
- The AL1012ACMCB220 has no network connectivity or remote monitoring—it is a passive power distribution device. If you need alarms on mains loss or battery low, integrate it with your access control panel or a separate monitoring relay. This is expected for this class of supply but worth confirming in the bid.
This supply is a solid fit for campus access control upgrades, warehouse reader networks, or any multi-building deployment where a single backup-powered 12V rail serves 5–10 circuits. It's not the choice for single-load high-current applications (use a simple non-isolated supply) or for PoE camera backups (wrong voltage). But for fault-tolerant distributed access, it punches above its price point.
