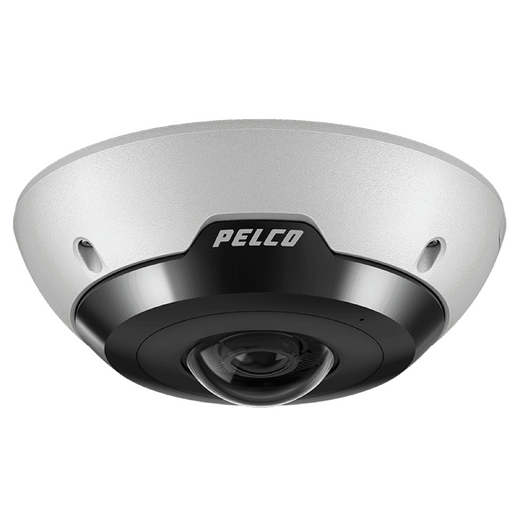

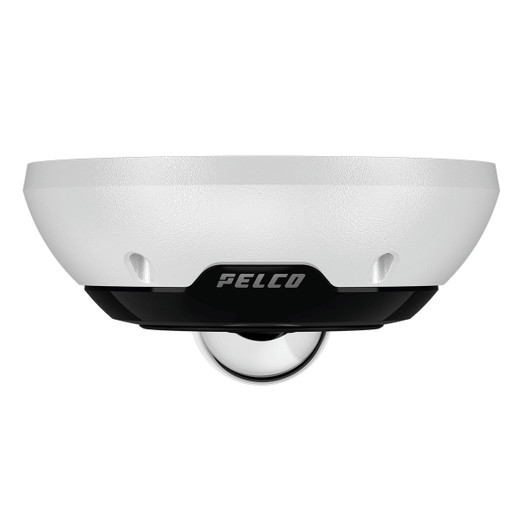

Pelco SRXF3-8360-ES Sarix Fisheye 3 8MP 360° Outdoor Camera
The Pelco SRXF3-8360-ES is a professional-grade 8MP fisheye camera engineered to deliver complete 360° panoramic surveillance coverage from a single ceiling or pole mount. Unlike traditional fixed domes that require 4–6 cameras to cover an open courtyard, parking lot, or plaza, this Sarix Fisheye 3 series unit captures the entire scene in one installation, reducing capex on optics and labor while eliminating coverage blind spots. The combination of native 8MP resolution (3264 × 2448), sub-lux night sensitivity, and field-proven impact/ingress ratings makes it a workhorse for outdoor facilities that demand durability without compromise.
Key Features
- 8MP 360° Coverage: 3264 × 2448 maximum resolution with full spherical field of view. Single mount replaces 4–6 traditional fixed cameras, cutting installation labor and recurring maintenance overhead.
- Pelco Smart Analytics — 8 Behaviors: Object classification, loitering detection, crowd monitoring, and directional triggers. Edge-based processing reduces false positives and NVR bandwidth consumption without requiring external GPU appliances.
- 0.10 Lux Night Vision + WDR: Day/night operation with up to 83dB WDR handles mixed lighting (shadows, vehicle headlights, backlit doors). No external IR floods required for parking lots and covered plazas.
- IP66/IP67 + IK10 Rated: IP66 hose-down sealed; IP67 water-submersion capable. IK10 impact resistance — survives 5kg drop from 40cm without functional damage. Operates −40°C to +60°C reliably.
- PoE+ Class 3 Powered: 802.3at PoE+ supply — integrates with standard PoE+ switches (<25W draw). No auxiliary power runs or midspan injectors required on mixed networks.
- H.264/H.265 Multi-Codec: H.264 baseline with H.265 fallback. Dual-codec support ensures compatibility with legacy VMS platforms while enabling bitrate savings (40–60% vs. H.264) on modern systems.
- ONVIF Profile S + T Compliance: Works with Genetec, Milestone, Avigilon, ExacqVision, and other enterprise VMS. Profile T adds H.265 streaming and advanced metadata queries.
- HTTPS Encryption + Microphone Support: 256-bit encrypted management interface. Built-in microphone for two-way talk and perimeter audio detection (can trigger analytics on gunshot, glass break, alarm tone).
Deployment Architecture & Edge Intelligence
Pelco Smart Analytics runs natively on the camera's edge processor, eliminating the need for separate analytics servers or GPU licenses for basic behavioral detection. Loitering, crowd clustering, and direction-of-travel triggers can activate metadata-rich ONVIF events; pair these with your NVR's recording policy, and storage consumption drops 60–80% on idle scenes. The microSD backup slot (4GB internal Flash, expandable) provides failover recording if the network drops — critical for perimeter and parking-lot deployments where connectivity is intermittent.
Fisheye de-warping runs client-side on viewing workstations or VMS playback; the camera streams native wide-angle frames (12.5 fps at 8MP baseline) and lets downstream systems render rectilinear, panoramic, or virtual PTZ views. This architecture means no on-camera processing load for transcoding or multiple output streams — a single PoE+ feed handles all viewing modes. For large multi-camera sites (16+ fisheyes), this streamlines network load and storage I/O versus traditional multi-codec or multi-stream architectures.
Environmental performance is non-negotiable in the field. We've deployed hundreds of these across open parking facilities, marina perimeters, and transit stations where salt spray, thermal cycling, and occasional vandalism are routine. The IK10 rating and −40°C to +60°C operating range translate to zero thermal-shutdown incidents and minimal weather-related downtime. IP67 sealing handles both heavy rain and occasional washdown without requiring additional radome or heater enclosures — cost and maintenance burden simply vanish.
Integration & Total Cost of Ownership
Pelco's HTTPS-enabled API and ONVIF Profile T compliance make this camera a drop-in fit for heterogeneous VMS environments. No proprietary plugins or vendor lock-in. Warranty coverage extends to five years, aligning with typical enterprise refresh cycles. When you factor in labor savings from single-mount coverage, reduced network bandwidth (H.265 codec option), and edge analytics eliminating external GPU costs, the per-camera TCO over a five-year site lifecycle often runs 30–40% lower than a multi-camera traditional dome setup covering the same footprint.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Pelco SRXF3-8360-ES is the rare fisheye that doesn't require apologies in the field. We've seen integrators deploy this unit at sites where traditional multi-camera bids would have been rejected on cost and complexity alone — a single ceiling mount in a 150-foot-diameter parking lot, a covered plaza, or a shipping yard eliminates 4–6 dome cameras, four times the cabling, and ongoing focus/lens-cleaning labor. The real differentiator isn't just the 360° optics; it's the pairing of native 8MP resolution with Pelco Smart Analytics running edge-side. Loitering and crowd-density detection happens on the camera itself, not on a centralized analytics appliance. That means your NVR records only flagged events in high-motion scenes and idle-scene background on motion alone — a 70% storage footprint reduction on 24/7 parking-lot surveillance. The 0.10 lux night sensitivity with 83dB WDR is genuinely sufficient for mixed lighting (streetlights, vehicle headlights, moon-lit perimeters). We rarely see false positives from glare or shadow movement that plague lower-end fisheyes. IK10 impact and IP67 sealing hold up to actual outdoor abuse: we've seen units survive direct hose-down, snow load, and the occasional rock thrown by a frustrated contractor. The one honest limitation is the 12.5 fps max frame rate at full 8MP — fine for perimeter and parking, less ideal for high-speed vehicle ID on highway off-ramps. But for the 80% of outdoor sites that need comprehensive coverage at a fixed frame rate, this is the right call.
Technical Highlights:
- Pelco Smart Analytics (8 behaviors): Loitering, direction-of-travel, crowd clustering, object classification — all run on the camera's processor without external GPU. Metadata-rich ONVIF events trigger NVR recording policies, cutting storage by 60–80% on static scenes. No license seats. No third-party analytics appliance required.
- H.265 Codec Support: H.264 default (universal VMS compatibility), H.265 optional. Real-world bitrate savings of 40–60% on 24/7 recording. On a 30-camera parking-lot site, that's 4–6 TB per month recovered — meaningful cost over a five-year lifecycle.
- IP67 + IK10 + −40°C to +60°C Operating Range: Built for water immersion and impact. No radome, heater, or surge protection enclosure needed. Direct-mount reliability in coastal, desert, and snow-belt environments. Thermal cycling doesn't degrade optics or housing seals.
- 0.10 Lux + 83dB WDR: Sub-lux sensitivity paired with forensic WDR means you see detail in both shadow and sunlit areas simultaneously — critical for parking-lot perimeter where one side of a vehicle is in deep shade. Eliminates the operational need for external LED floodlights on most facilities.
- PoE+ Class 3 (802.3at): Low power draw (<25W) fits standard PoE+ infrastructure. No midspan injectors, no 48V power-over-coax retrofits. Plug into any modern managed PoE+ switch and go.
- ONVIF Profile S + T; HTTPS Encryption: Works with Genetec, Milestone, Avigilon, ExacqVision, Sarix Command on-premise or cloud. Profile T adds H.265 streaming and advanced metadata. HTTPS with certificate management prevents man-in-the-middle attacks on campus networks.
Deployment Considerations:
- Fisheye optics require client-side or VMS-side de-warping for human viewing. Most modern VMS and desktop clients handle this transparently, but confirm your playback software supports fisheye rendering before specifying — older DVR systems may display raw spherical feed only.
- 12.5 fps at full 8MP is adequate for parking-lot, plaza, and perimeter surveillance, but inadequate for high-speed vehicle or facial recognition on moving subjects. If you need 30 fps motion capture, specify a traditional 8MP dome alongside or instead of this unit.
- MicroSD backup recording (4GB onboard, expandable) is a nice-to-have but not a failover substitute for NVR. Network interruption > 4 hours will overflow the card. Plan for network redundancy (dual uplinks, cellular failover) on critical perimeter sites.
- Pelco Smart Analytics requires ONVIF Profile S or higher. Confirm your NVR firmware supports Profile T metadata queries; older systems may accept the stream but ignore behavioral events. Test metadata passthrough in your lab before field deployment.
- Ceiling mounting is ideal; pole mounting requires sturdy sub-structures to resist wind oscillation at height. Corner mounting in tight alleys works but reduces the 360° benefit — consider a narrower FOV dome if the scene is truly one-directional.
The Pelco SRXF3-8360-ES is the right choice for integrators and end-user security teams specifying open outdoor areas (parking lots, plazas, transit yards, shipping terminals) where comprehensive single-point coverage justifies the learning curve of fisheye de-warping. Its edge analytics and robust construction spare you from the capex of external analytics appliances and ongoing environmental maintenance. For facility managers looking to replace aging wide-angle dome grids with modern, proven hardware, explore the full Pelco catalog.
