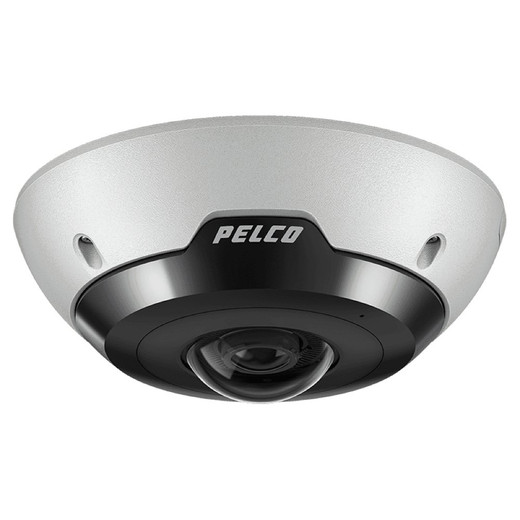

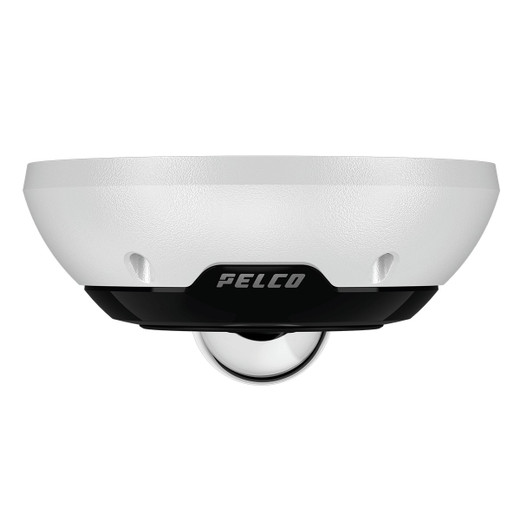

Pelco SRXF3-12360-ES 12MP Fisheye 360° Camera
The Pelco SRXF3-12360-ES is a 12MP panoramic fisheye designed to replace three to four conventional fixed cameras in large open spaces. Mounted at a single ceiling point, it captures uninterrupted 360° coverage without blind spots—critical for distribution centers, airport terminals, atriums, and covered loading areas where traditional camera arrays would require extensive cabling and coordination.
Overview
This outdoor-rated fisheye operates on Pelco IP cameras standards and delivers identification-grade detail even in digitally zoomed regions. The 12MP sensor with 3840 x 2160 maximum resolution means pixel density remains high across the entire panoramic field, preserving forensic value in zoomed-in playback. At 12.5 fps at full resolution, the camera handles continuous recording efficiently while the 2.7mm f/2.5 lens and WDR (wide dynamic range) technology enable reliable performance in mixed lighting—direct sunlight on one side of the space, shadow on the other. That combination matters in real warehouses and outdoor loading docks.
Power arrives via PoE+ (Class 3), drawing adequate current without straining a standard network switch. H.264 compression keeps bandwidth and storage reasonable for always-on surveillance across large areas. The camera also supports microSD local recording—useful if your network segment hiccups or you need forensic clip extraction without touching the main NVR.
Key Features
- 360° panoramic coverage from a single mount: One ceiling-mounted unit eliminates installation complexity and cable runs; one camera replaces a three- to four-unit fixed array in open floor plans.
- 12MP resolution with 3840 x 2160 maximum output: High pixel density ensures readable detail in digitally zoomed regions, reducing the need for secondary high-res cams to cover the same space.
- 180° field of view via 2.7mm f/2.5 lens: Captures half the sphere from one point; mirrors or de-warping software reconstruct the full 360° mosaic in your VMS.
- WDR and day/night operation: Handles mixed sunlit and shadowed regions simultaneously without overexposure or underexposure in adjacent zones; 0.10 lux low-light sensitivity ensures usable imagery in dawn/dusk or supplementally lit indoor spaces.
- IK10 impact rating: Rated for vandal resistance in high-traffic environments; this is the highest mechanical impact class, meaning accidental or intentional strikes from tools or sports equipment won't crack the dome or degrade functionality.
- IP66/IP67 environmental protection: Dust and direct rain won't compromise the lens or internal optics; stops short of full submersion, so don't mount this underwater.
- PoE+ power with Class 3 support: Operates on standard 802.3at, eliminating a separate 12V power supply and its associated conduit or cable runs.
- H.264 compression: Balances image quality against bandwidth and storage cost; pairs well with multi-camera recording schedules where every megabyte counts across 24/7 operation.
- ONVIF Profile S and Profile T compliance: Integrates with any network video recorder or VMS that speaks standard ONVIF—Milestone, Genetec, Hanwha, or others—without vendor lock-in.
- Pelco Smart Analytics with 8 behavior detection modes: On-device motion detection, line crossing, and intrusion alerts reduce false positives and offload processing from the NVR.
- microSD local storage: Supports up to card capacity for clip export or failover recording if the network segment is interrupted.
Integration and Compatibility
The SRXF3-12360-ES (often searched as SRXF3 12360 ES) communicates via standard ONVIF, so integration with camera selection resources and VMS planning follows conventional network camera workflows. Firmware updates and configuration occur through your existing NVR console or web UI. No special de-warping software is required if your VMS already supports fisheye output; if you need advanced panorama stitching, Pelco includes integration guidance in the product datasheet.
Note: This model does not include integrated IR illumination. It relies on ambient or supplemental lighting for nighttime operation. If you require self-contained 24/7 performance without external IR, specify the SRXF3-12360-ERS variant with built-in infrared.
Operating Conditions
The camera operates across a wide temperature span: -40°C to +60°C (-40°F to 140°F). That range covers most outdoor and climate-controlled interior spaces. A 5-year manufacturer warranty covers defects in materials and workmanship, standard for commercial-grade Pelco products.
When to Consider a Different Model
If your space requires continuous night vision without supplemental lighting, or if you need a narrower field of view to focus on a specific zone rather than panoramic coverage, evaluate other options within the Pelco Sarix Fisheye line. If your application demands H.265 compression to cut storage by 40–50%, check whether your VMS supports H.265 decode before committing—many older systems are locked to H.264.
Frequently Asked Questions
Q: Does the SRXF3-12360-ES work with my existing VMS?
A: If your VMS supports ONVIF Profile S or T, yes. That includes Milestone XProtect, Genetec Security Center, Hanwha WaveEye, and most commercial-grade recorders. Confirm ONVIF compliance in your VMS documentation before purchase.
Q: Can I use standard 802.3af PoE, or do I need PoE+?
A: The camera is rated for PoE+ (Class 3). Standard 802.3af may not supply sufficient power; deploy the camera on a PoE+ switch or injector to ensure stable operation.
Q: What happens at night if there's no IR illumination?
A: The camera relies on ambient light—street lamps, security floods, or interior illumination. If your site is completely dark, add supplemental IR floodlights or choose the IR-equipped SRXF3-12360-ERS variant.
Q: Can I mount this on a wall instead of a ceiling?
A: The fisheye is optimized for ceiling mounting to achieve 360° coverage from a single point. Wall mounting will reduce coverage and defeat the primary value proposition. For wall-mounted panoramic coverage, consult a Pelco systems engineer about alternative configurations.
Q: Does the camera support two-way audio?
A: Evidence does not confirm two-way audio capability. Refer to the product datasheet or contact Pelco technical support for audio specifications.
Q: What's the warranty, and is it transferable?
A: Pelco provides a 5-year warranty covering defects in materials and workmanship. Verify transferability with your vendor or Pelco support if the unit will change ownership.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SRXF3-12360-ES solves a real deployment headache: replacing three or four fixed-position cameras with one ceiling mount and still maintaining identification-grade resolution in zoomed regions. The 12MP sensor at 3840 x 2160 means pixel density stays high enough to read a license plate or face even after digital zoom—something you can't count on with lower-resolution panoramic units. IK10 impact rating is a tactical choice in high-traffic warehouses and loading docks where accidental bumps from pallet jacks or forklifts are inevitable.
Technical Highlights:
- 12MP at 3840 x 2160 resolution: Delivers 18 megapixel-equivalents of detail spread across the 360° field. In practice, this means a zoomed-in crop from quadrant A still carries enough pixels to satisfy forensic review without requiring a separate high-res fixed camera covering the same area.
- 0.10 lux low-light performance with WDR: Handles the split-lighting problem—sun streaming in one warehouse bay while an adjacent bay sits in shadow. WDR compresses that dynamic range into a single frame without blown highlights or crushed shadows in adjacent regions.
- IK10 + IP66/IP67 rating: Vandal-resistant mechanical protection combined with dust and rain ingress protection means this camera survives outdoor loading docks, covered but semi-exposed atriums, and high-traffic indoor zones. It won't fail after a careless ladder strike or a day of light rain.
- PoE+ Class 3 power with H.264 compression: Operates on standard 802.3at without a dedicated PSU, and H.264 keeps 24/7 multi-camera bandwidth and storage costs predictable—roughly half the footprint of uncompressed or MJPEG streams.
Deployment Considerations:
- This model has no integrated IR. If your site goes dark at night, you must provide ambient or supplemental lighting—budget for additional floodlights or consider the IR-equipped ERS variant instead.
- Fisheye coverage is ceiling-optimized. Wall mounting or pole mounting defeats the 360° single-point premise and introduces blind zones. Plan ceiling access during site survey.
- ONVIF compliance is essential for VMS choice. Verify your target NVR or VMS explicitly supports ONVIF Profile S and Profile T before finalizing procurement; some legacy or specialized recorders may have incomplete support.
Deploy the SRXF3-12360-ES when you need to collapse a three-camera ceiling array into one mount, maintain forensic-grade detail across the panorama, and can provide ambient or supplemental night lighting. Ideal for distribution center floor plans, airport terminals, and parking structure atriums where a single overhead vantage point covers the critical area.
