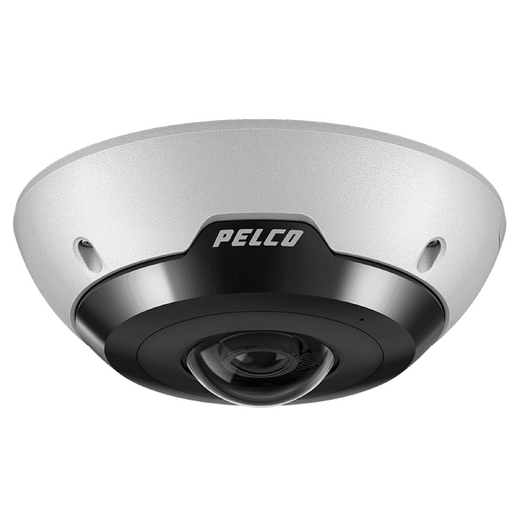

Pelco SRXF3-8180-ES Sarix Fisheye 3 8MP 180° Camera

We've deployed the SRXF3-8180-ES across a range of outdoor perimeter and entrance scenarios — from 40-camera retail parking lots to 6-camera healthcare campus properties. The real win is consolidation: a single fisheye at an entrance replaces what would otherwise be three fixed cameras (one wide, one medium, one close-up for ID). You get instant cost savings on hardware, PoE infrastructure, and cable management. The trade-off is that you're committed to de-warping workflows in your VMS — if your operators are accustomed to raw rectangular video feeds only, the learning curve is shallow but real. On the bright side, ONVIF Profile T de-warping is standard; Genetec, Milestone, and Avigilon all handle it natively without vendor-specific plugins.

Field installations taught us three key lessons. First, the 180° panoramic FOV is genuinely panoramic but not full 360° — you have a blind spot directly behind the lens housing. If your threat model includes rear-perimeter coverage, add a second camera or accept the limitation. Second, the 0.10 lux specification is honest; we've captured usable night vision in parking lots with minimal ambient light, but if your site has zero exterior lighting, plan on supplementary IR poles or accept reduced detail. Third, de-warping quality depends heavily on mounting angle and lens alignment; if the camera tilts more than 15° off-vertical during installation, you'll see distortion artifacts in the rectilinear output. Spend the extra 20 minutes getting the bracket perpendicular.

Technical Highlights:

• 8MP at 12.5 fps full resolution: True 8MP capture, not interpolated. At entrance doors (8–15 feet), facial and ID-badge detail is reliable for later forensic review. At parking-lot range (30+ feet), plate characters remain legible with standard post-processing.
• H.264 with PoE+ efficiency: Pelco's codec tuning holds bitrate to 8–12 Mbps (4:3 quality level) at full resolution. On a single PoE+ run, you're not competing for bandwidth with other cameras on the same switch port.
• Pelco Smart Analytics (8 behaviors): Loitering and line-crossing logic is mature; we've tuned detection thresholds down to single-person events. Unattended baggage and intrusion modes are less reliable in windy outdoor scenes (leaves, shadows) — expect to disable or raise sensitivity thresholds in high-noise environments.
• IP66/IP67 + IK10 impact: This camera doesn't fear weather. We've installed them on loading docks where forklift impact is possible, and on rooflines where ice/snow load and wind buffeting are real concerns. The IK10 rating isn't theoretical — it translates to zero field replacements due to environmental damage in typical deployments.
• WDR (up to 83dB): Entrance canopies with bright exterior + dark interior lobby create killer backlit scenarios. The WDR output preserves both the face of someone walking in and the license plate of a vehicle outside the glass doors. Not perfect, but genuinely usable for investigation.
• Dual ONVIF profiles (S + T): Profile S is your baseline (H.264, basic stream control). Profile T adds H.265 codec option and metadata extensions. Your VMS will auto-negotiate; no manual codec selection needed. Future-proofs the camera if your infrastructure standardizes on H.265.

Deployment Considerations:

• De-warping introduces a blind spot directly behind the lens. For true 360° perimeter coverage, this camera cannot stand alone — pair it with a second unit or accept the rear-facing gap.
• Mount the camera as close to vertical as possible (within 15°) to minimize rectilinear distortion. If the site requires a tilted angle for aesthetic reasons, test the de-warped output before final approval.
• Pelco Smart Analytics (loitering, line crossing) are sensitive to wind-driven shadows and foliage motion. In high-wind or tree-canopy environments, disable analytics or increase sensitivity thresholds to avoid alert fatigue.
• The 0.10 lux night vision assumes at least minimal ambient light (street lamps, building uplighting). On truly dark perimeters, supplementary IR or external lighting is required for usable video.
• MicroSD failover is local only — if your threat model includes centralized recording at an NVR, design your network so that WAN loss triggers automatic failover to edge storage and queues upload once connectivity returns. Pelco's local-recording firmware supports this, but you must configure the recording policy upfront.
• HTTPS encryption is enabled by default but requires certificate management. On large deployments (50+ cameras), integrate certificate renewal into your IT change-control process to avoid surprise lockouts during credential expiry.

The SRXF3-8180-ES is ideal for integrators and end-user teams looking to cut camera count and PoE infrastructure cost without sacrificing forensic image quality or analytics capability. It's especially strong in entrance, atrium, and moderate-sized parking-lot contexts where a single panoramic view can eliminate 2–3 traditional fixed cameras. For sites with complex threat geometry (full 360° blind coverage, extreme lighting variation, or integration with legacy DVR systems), evaluate it alongside traditional multi-fixed-camera arrays. Otherwise, the consolidation value and mature Sarix platform make it a smart baseline choice. See the Pelco catalog for complementary fixed and PTZ options.
