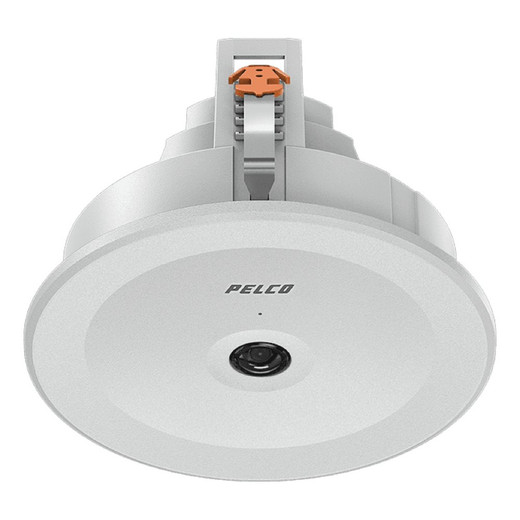

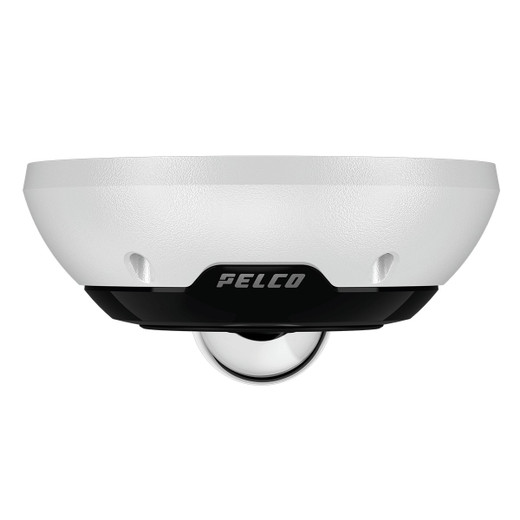

Pelco SRXF3-12360-I 12MP Fisheye 360° Indoor Camera
The Pelco SRXF3-12360-I delivers complete panoramic surveillance from a single ceiling-mounted point without the cost and complexity of deploying three to four separate fixed cameras. This 12MP fisheye camera captures full 360° coverage in well-lit indoor environments, with the option to configure 180° and 360° field-of-view layouts depending on your monitoring needs. The 3840 × 2160 resolution ensures identification-grade detail across the entire de-warped or quad-view presentation—a critical factor when you need to zoom into specific areas of a captured panorama without losing usable pixel density.
Key Features
- 12MP Sensor at 3840 × 2160 Resolution: Identification-grade clarity across the full panoramic field. When de-warped or split into quad-view layouts, you retain enough pixel density to recognize individuals or read license plates—unlike lower-resolution fisheye alternatives that force you to choose between coverage and detail.
- Full 360° Panoramic Coverage from Single Ceiling Mount: Replaces three to four fixed-camera deployments in lobbies, retail floors, and open-plan warehouses. One cable, one power connection, one analytics configuration—substantially lower installation labor and ongoing management overhead than a multi-camera array.
- 2.7mm f/2.5 Fixed Lens with 0.10 Lux Sensitivity: The wide aperture and low-light threshold allow the SRXF3-12360-I to operate in moderately dim indoor spaces (offices with ambient overhead lighting, warehouse aisles with standard illumination). No integrated IR emitter, so pitch-black or unlit areas require external light or a different model family—plan accordingly if you're deploying in 24/7 controlled-darkness environments.
- PoE+ Power (Class 3): Draws a modest power budget over standard Ethernet—one cable to the switch eliminates separate power injectors or hardwired AC outlets. Simplifies ceiling installations where running multiple lines would add cost and complexity.
- H.264 Compression at 12.5 fps Full Resolution: Standard codec trades ease of decoder compatibility against slightly higher bandwidth than H.265 would require. For most IP camera deployments with mainstream VMS software, H.264 is proven and widely supported; storage efficiency is acceptable for panoramic streams if you run adequate NVR capacity.
- IP52 and IK10 Ratings: IP52 blocks dust and water spray from fire suppression or washing—sufficient for protected indoor environments. IK10 impact resistance handles accidental contact from falling objects or rough handling during maintenance without requiring a protective cage or housing.
- ONVIF Profile S and Profile T Compliance: Ensures compatibility with mainstream VMS platforms (Milestone, Genetec, Hanwha SmartVMS, and others that support ONVIF discovery and streaming). Reduces vendor lock-in and simplifies future integrations.
- Pelco Smart Analytics with 8 Configurable Behaviors: On-camera intelligence processes the full panoramic field without demanding external edge servers or high-bandwidth integration back to a central analytics appliance. Behaviors include perimeter detection, loitering, direction detection, and crowd monitoring—useful for retail floor analysis, access control lobbies, and warehouse traffic patterns without pushing all processing load to your recording infrastructure.
- microSD Local Storage Support: Complements your central NVR with on-device emergency buffer storage. If your network connection drops briefly, the camera continues recording locally—reduces the risk of losing critical footage during brief WAN outages or switch reboots.
- Day/Night Capability with WDR Support: Handles transitions between bright and low-light zones in the same frame—particularly valuable in indoor spaces with mixed ambient light (large skylights next to interior walls, or transitions from bright corridors to darker alcoves). WDR balances exposure across the panoramic field so you don't lose detail in either bright or shadowed regions.
- HTTPS Encryption and Secure Boot: Protects credential and video data in transit. Industry-standard for regulated environments and corporate deployments where cyber hygiene is non-negotiable.
Deployment Context
The SRXF3-12360-I is purpose-built for indoor spaces with reliable, consistent ambient illumination—retail floors with standard fluorescent or LED overhead systems, office lobbies, warehouse picking areas, and distribution centers with maintained lighting. Avoid deploying this model in unlit or variable-light environments (parking garages, outdoor entries, loading docks) unless you add external supplementary lighting. The fixed 2.7mm lens means no zoom capability; if your use case requires closer detail in specific areas, plan a hybrid deployment with fixed panoramic cameras for overview coverage and additional high-zoom or high-resolution fixed units for targeted zones.
Panoramic video streams consume significant bandwidth, particularly at 12.5 fps 4K—ensure your network switch and NVR recording subsystem can sustain the bitrate for continuous recording. Most H.264 4K panoramic streams sit in the 8–15 Mbps range depending on scene complexity and motion; plan storage accordingly using the datasheet estimates or request sample footage from your integrator.
When to Choose a Different Model

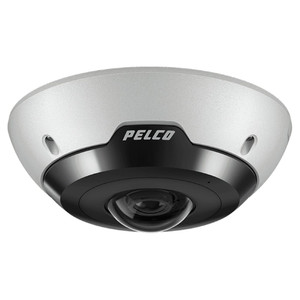

If your environment requires integrated infrared illumination or full night-vision operation without external light, consider an IR-equipped variant in the Sarix Fisheye series or a traditional fixed camera with tunable lens and powerful IR for the same coverage area. If you need motorized zoom or the ability to follow moving subjects, a PTZ camera family will serve better, though it introduces mechanical complexity and higher power draw. For outdoor or semi-outdoor panoramic monitoring (building entries, loading dock overhangs), evaluate Pelco's outdoor-rated fisheye or panoramic lines that include IP67 and higher impact ratings.
Frequently Asked Questions
Q: Does the SRXF3-12360-I require external IR illumination for night operation?
A: Yes. The SRXF3-12360-I does not include integrated IR emitters. It relies on ambient light for day/night operation. In low-light or dark environments, you must provide external supplementary lighting or consider an IR-equipped alternative.
Q: What is the typical bandwidth requirement for continuous 12MP recording?
A: H.264 compression at 12.5 fps typically consumes 8–15 Mbps depending on scene complexity, motion, and encoder settings. High-motion retail or warehouse scenes may trend toward the higher end. Verify with your NVR documentation and test with sample footage before final deployment.
Q: Is the SRXF3-12360-I compatible with Milestone XProtect or Genetec Security Center?
A: Yes. ONVIF Profile S and Profile T compliance ensures compatibility with Milestone XProtect, Genetec, Hanwha SmartVMS, and other mainstream VMS platforms that support ONVIF device discovery and streaming. Verify your specific VMS version in the release notes, as very early versions of some platforms have limited ONVIF support.
Q: Can the camera be wall-mounted, or is it ceiling-only?
A: The SRXF3-12360-I is designed for ceiling mounting to capture the full 360° panoramic field effectively. Wall mounting would restrict the field of view and defeat the primary coverage advantage. Consult the mounting template in the datasheet for ceiling installation specifications.
Q: What warranty does Pelco provide on the SRXF3-12360-I?
A: Pelco includes a 5-year warranty on the SRXF3-12360-I. Verify current terms with your specialty distributor or reseller.
Q: Does the camera support NDAA Section 889 compliance?
A: The product evidence does not specify NDAA Section 889 compliance. Contact Pelco or your distributor directly to confirm compliance status if required for government or federal procurement.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SRXF3-12360-I (often searched as SRXF3 12360 I) is a single-point-of-presence solution for environments where traditional multi-camera grids create integration overhead and redundant blind spots. The 12MP sensor at 3840 × 2160 is the deciding factor—it delivers enough pixel density that when you de-warp the panoramic feed or split it into quad-view panels, you still retain identification-grade detail. That's not true of 5MP or 8MP fisheye alternatives, which force you into uncomfortable trade-offs between coverage and usable zoom.
Technical Highlights:
- 0.10 Lux Minimum Illumination: Paired with the f/2.5 aperture, this allows operation in moderately dim indoor spaces—offices with standard overhead lighting, warehouses with ambient illumination. It's a sweet spot for controlled indoor environments; it won't rescue a pitch-black loading dock or unlit parking structure, so don't force it into those roles.
- 12.5 fps at Full 4K Resolution: Smooth motion rendering for retail floor traffic, warehouse picking activity, and lobby monitoring. Not cinema-frame rates, but sufficient for behavior analytics and incident reconstruction. If you need 30 fps at this resolution, you're looking at significantly higher bandwidth consumption and storage costs—verify your NVR is sized for that before committing.
- PoE+ Class 3 Power Budget: The camera draws under 25W via standard 802.3at injection, which most contemporary switches support without strain. No separate 12VDC supplies, no power-budget arguments with your network team—straightforward deployment economics.
Deployment Considerations:
- The fixed 2.7mm lens means zero optical zoom—if your monitoring strategy includes detailed close-ups of specific zones (faces at an entry point, barcode reading at a receiving dock), you'll need supplementary fixed or zoom cameras positioned for those roles. Panoramic overview + targeted detail is the right hybrid model.
- Lack of integrated IR is a hard stop for unlit or low-ambient-light environments. Adding external light fixtures changes the architectural footprint and maintenance burden of your deployment. Plan for ambient-light-dependent spaces only, or budget external LED supplementation upfront.
- H.264 at 12.5 fps 4K typically sustains 8–15 Mbps depending on scene motion and complexity. On a 24/7 recording model, a single SRXF3-12360-I will consume roughly 0.9–1.6 TB per month. Factor that into your NVR retention policy and storage expansion plan before you sign off on the architecture.
The SRXF3-12360-I shines in retail floor layouts, warehouse interiors, and office lobbies where a single overhead mount replaces a grid of separate cameras and where ambient lighting is reliable and consistent. For entry points, outdoor approaches, or dark environments, redirect to Pelco's infrared-equipped options or a traditional camera family with selectable lens and light output.
