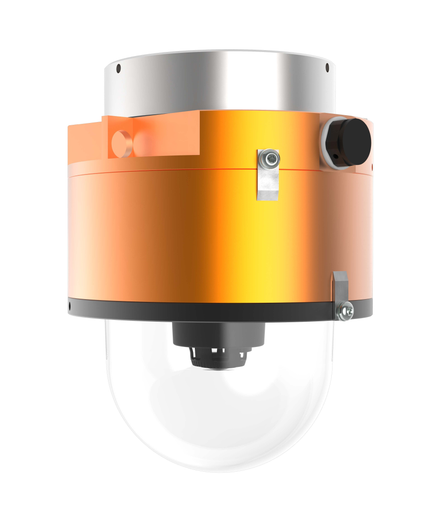

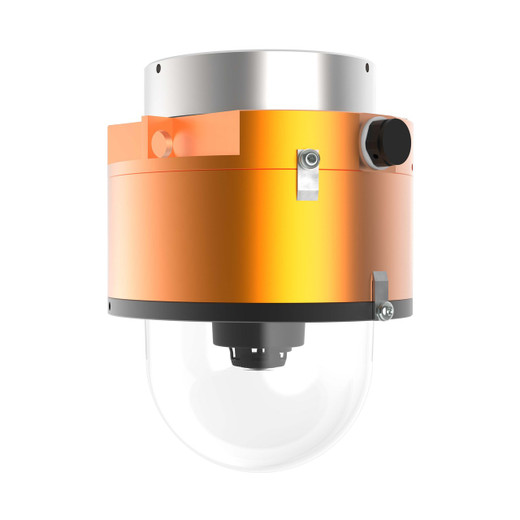

Hanwha TNM-XNF9013EPT3-Z Explosionproof Fisheye IP Camera

Hanwha TNM-XNF9013EPT3-Z Explosionproof Fisheye IP Camera

The TNM-XNF9013EPT3-Z is a purpose-built explosionproof fisheye camera for Class I, II, and III Division 1 hazardous locations where standard surveillance is not legally or operationally viable. It delivers 8MP resolution in a compact form factor certified to cFMus, IECEx, and ATEX standards—meaning you can deploy it in petrochemical plants, grain elevators, pharmaceutical manufacturing, and other combustible atmospheres without sacrificing image quality or analytics capability.

Key Features

• 8MP fisheye sensor with 209° horizontal field of view: Eliminates blind spots inherent to fixed-lens cameras in tight industrial spaces. Original View mode captures full 3008×3008 resolution; panoramic modes (Double/Single/Quad) reframe the image to fit standard monitoring workflows without losing detail.
• H.265 compression with intelligent codec adaptation: Reduces storage consumption roughly 40–60% versus H.264 depending on scene complexity—a significant factor when recording 24/7 across multiple hazardous zones where local storage (microSD) or bandwidth-constrained links are the only option.
• Extreme 120dB WDR with AI-powered Wise NR noise reduction: Handles simultaneous bright and dark areas (e.g., sunlit windows and shadowed equipment) without washing out detail. Noise reduction preserves edges in low-light scenes, cutting false motion alerts in dynamic industrial environments.
• AI object detection and analytics: On-camera detection of persons, vehicles, faces, and license plates reduces server load and enables immediate alerting at the source. Supports people counting, heatmaps, queue management, loitering, and virtual line crossing—useful for monitoring confined spaces or restricted zones in hazardous areas.
• PoE+ power with 12VDC fallback: Draws 9.4–13W typical operation via standard 802.3at PoE+, eliminating separate power runs to intrinsically safe-rated installations. Dual-power option supports legacy 12VDC infrastructure if PoE infrastructure is unavailable.
• Integrated IR illumination (8m range) with color at 0.39 Lux (F2.2): Maintains color recognition in low-light industrial settings; IR mode provides coverage during complete darkness without requiring external lighting (which may be impractical in hazardous locations).
• Dual microSD/SDHC/SDXC slots supporting up to 1TB total: Enables local edge recording independent of network connectivity—critical for sites where centralized NVR deployment would require costly hazardous-area wiring certification.
• IP66/IK10 environmental sealing with anodized aluminum (RAL 9003 white): Withstands direct spray, dust, and moderate impact in petrochemical and chemical processing plants. Corrosion-resistant finish extends service life in corrosive atmospheres.
• Operating range -40°C to +60°C at up to 95% RH: Handles extreme temperature swings in outdoor or uncontrolled industrial spaces without performance degradation. No derating required at typical plant operating conditions.
• ONVIF Profile S/G/T/M compliance with full IPv4/IPv6: Integrates with standard VMS platforms (Milestone, Genetec, etc.) without proprietary gateways. Metal-shielded RJ-45 Ethernet resists EMI from heavy industrial equipment.
• Multiple authentication and security hardening: HTTPS, 802.1X, IP filtering, and device certificates protect against unauthorized access. Supports up to 8 motion detection zones and 32 privacy masking regions for regulatory compliance (e.g., personnel privacy in shared work areas).

Integration & Compatibility

The TNM-XNF9013EPT3-Z integrates with any ONVIF-compliant network video recorder or Hanwha IP cameras ecosystem. Dual audio I/O (microphone input, line input/output) supports two-way communication or integration with industrial alarm systems. Firmware updates and remote management via RTSP, HTTP, and ONVIF ensure long-term supportability. For PoE switch and cabling planning, verify your network infrastructure supports 802.3at PoE+ (minimum 30W per port) and confirm hazardous-area wiring certification requirements with your systems integrator.

Frequently Asked Questions

Q: Is the TNM-XNF9013EPT3-Z certified for use in Division 2 hazardous locations?

A: The TNM-XNF9013EPT3-Z is certified for Class I/II/III Division 1 and IECEx/ATEX Zone 1/21 only. Division 2 and Zone 2 installations require a different product family. Consult with your authority having jurisdiction (AHJ) or certification body if your facility is classified as Division 2 or Zone 2.

Q: Can I use standard PoE (802.3af) with this camera?

A: No. The TNM-XNF9013EPT3-Z requires PoE+ (802.3at, 30W minimum). Standard 802.3af (15.4W) will not supply sufficient power. A 12VDC power supply is an alternative if PoE+ infrastructure is unavailable.

Q: What is the maximum frame rate at full 8MP resolution?

A: The camera delivers 30fps at full 3008×3008 resolution using both H.265 and H.264 codecs.

Q: Does the TNM-XNF9013EPT3-Z support local edge recording?

A: Yes. Dual microSD/SDHC/SDXC slots support up to 512GB per slot (1TB total). This enables standalone recording independent of network connectivity, a practical feature for sites where centralized NVR deployment is impractical or cost-prohibitive.

Q: Which VMS platforms are compatible with the TNM-XNF9013EPT3-Z?

A: Full ONVIF Profile S, G, T, and M compliance ensures compatibility with Milestone XProtect, Genetec Security Center, and other standards-based VMS. Verify specific plugin availability with your VMS vendor for fisheye de-warping and panoramic view support.

Q: What happens if my facility temperature exceeds 60°C?

A: The TNM-XNF9013EPT3-Z is rated to +60°C maximum. Exposure above this temperature may cause component failure or certification voidance. If your facility regularly exceeds this, consult the manufacturer for alternative solutions or thermal management strategies (e.g., shaded mounting, ventilation enclosures).

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TNM-XNF9013EPT3-Z represents a genuinely rare product category: an explosionproof camera that doesn't force you to choose between safety compliance and imaging performance. Most hazardous-area equipment trades detail for certification. This one doesn't. The 8MP fisheye (209° H-FOV) eliminates the typical blind-spot problem in confined industrial spaces, and the H.265 codec with Wise NR noise reduction delivers usable video at 0.39 Lux—meaningful in petrochemical plants where you can't install additional lighting.

Technical Highlights:

• H.265 with WiseStream adaptive bitrate: 40–60% storage reduction versus H.264 is not theoretical—it's the difference between needing 2TB and 1TB of microSD in your dual slots. Over a 3–5 year deployment, that's a real operational cost savings.
• 120dB WDR plus AI-powered Wise NR: Industrial environments are noisy (literally and digitally). The combination handles glint off metal equipment and shadows under ductwork without generating false motion zones. Object detection (person/vehicle/face) runs on-device, cutting unnecessary bandwidth to your NVR.
• PoE+ at 13W max typical operation: You're not forcing hazmat-certified electricians to run new 12VDC lines through intrinsically safe conduit. PoE+ is standard infrastructure at most industrial sites. The 12VDC fallback is a safety net, not the primary path.
• 1TB microSD capacity (dual slots): Edge recording is mandatory for sites where centralized NVR deployment requires separate certification. One TB buys you 5–7 days of continuous 8MP H.265 recording at 30fps—enough for shift-based incident review without dependent on network uptime.

Deployment Considerations:

• Confirm your PoE switch supports 802.3at (30W minimum per port). Undersized infrastructure is the most common integration failure in hazardous-area builds.
• The camera is certified for Zone 1/21 (explosive gas/dust present under normal operation). If your facility is classified as Division 2 or Zone 2, this is overkill—a standard IP camera will save money and integrate easier into your existing VMS.
• Dual fisheye de-warping and panoramic view modes are powerful, but your VMS must support ONVIF Profile T (PTZ control) to expose them cleanly. Test with your Milestone or Genetec instance before full deployment.
• Operating range maxes at +60°C. Rooftop or direct-sun mounts in hot climates may require thermal management or relocation to shaded surfaces.

Position this in petrochemical, grain handling, pharmaceutical manufacturing, and mining sites where Class I/II/III Division 1 is non-negotiable and a single camera must cover a large area without blind spots. The explosionproof certification cost is real, but the imaging and analytics performance justify it in mission-critical hazmat deployments.
