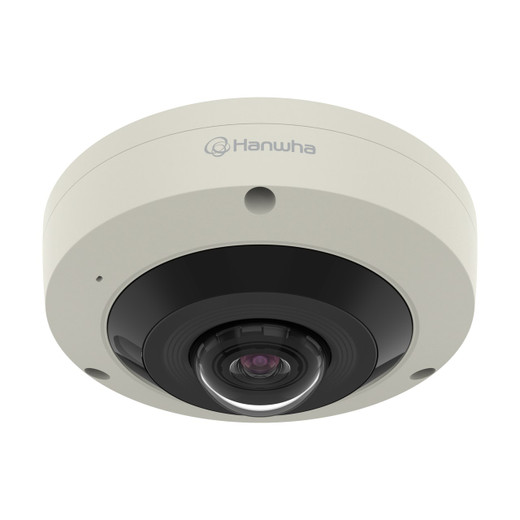

Hanwha XNF-8010RV 6MP 360° Fisheye IP Camera

Hanwha XNF-8010RV 6MP 360° Fisheye IP Camera

The Hanwha XNF-8010RV is a professional 6MP panoramic fisheye IP camera engineered for outdoor surveillance deployments where complete area coverage is mandatory. Its 360° field of view eliminates blind spots and significantly reduces the number of cameras required — a real cost lever in large-scale installations. Built to the IP66 / IK10 rating standard, it handles direct rain, dust, and vandal impact without performance loss. If you're deploying multiple single-view cameras to cover the same area, the XNF-8010RV's panoramic perspective often cuts that count in half.

Key Features

• 6MP 1/1.8" CMOS Sensor: Captures exceptional detail across the 360° panoramic view — meaningful when you're relying on a single camera to replace two or three conventional narrow-angle units. The 6MP baseline supports zoom-in on recorded footage without excessive pixelation.
• 360° Panoramic Field of View: Delivers 192° horizontal, vertical, and diagonal coverage in a single device. This geometry reduces deployment points and simplifies camera-to-door/window alignment — no more arguing about mount height and azimuth to cover two zones simultaneously.
• Advanced Day/Night Capability: Automatic ICR (Infrared Cut-off Removal) switching paired with 15m infrared range and 0.1 Lux color sensitivity keeps the image usable 24/7. The 15m range is practical for parking lots and building perimeters but won't reach across a warehouse floor — plan accordingly.
• 120dB Wide Dynamic Range (WDR): HLC, BLC, and WDR processing keep facial or vehicle detail readable in high-contrast scenes — important when a single camera must capture both shadowed entry points and bright exterior zones. SSNR V noise reduction further cleans the image in low-light conditions.
• H.265 and H.264 Compression: H.265 cuts storage requirements roughly 40–60% compared to H.264 on the same scene complexity, a substantial savings when recording 24/7 across dozens of panoramic cameras. Falls back to MJPEG for specific integration scenarios or legacy VMS systems.
• PoE (IEEE 802.3af) Power: Draws 12.95W maximum — sits comfortably within standard PoE budgets (15W per port) and eliminates the need for separate power supplies. Simplifies outdoor cable runs to a single Ethernet drop.
• IP66 / IK10 Durability: IP66 means direct spray and dust ingress won't be an issue; IK10 rating handles moderate vandal impact (roughly 20 joules). This pairing is standard for outdoor dome cameras — skip this unit only if you need full submersion (IP67 or higher) or face higher impact environments.
• Intelligent Analytics: Motion detection, loitering, intrusion, virtual line crossing, tampering detection, and audio classification run on-device. No separate license or GPU cluster required. Business intelligence features include people counting, queue management, and heatmap visualization — useful for parking utilization or crowd-flow analysis in urban environments.
• Multiple View Output Formats: Original panoramic, single panorama, double panorama, and quad views up to 2048x2048 resolution allow different zones or operators to consume the same camera feed in different layouts — flexible for multi-site monitoring where one team watches crowds and another watches perimeter.
• Edge Storage: Dual microSD/SDHC/SDXC slots supporting up to 512GB per slot give you 1TB local backup on the camera itself. Meaningful if your NVR goes offline — 24–48 hours of 24/7 H.265 recording is often achievable.
• Network Security: SSL/TLS encryption, IP address filtering, digest authentication, and 802.1X EAP support meet enterprise policy baselines. IPv4/IPv6 dual-stack support simplifies future-proofing.

Integration & Compatibility

The XNF-8010RV supports ONVIF Profiles S, G, and T — a broad compatibility band that includes Milestone Xprotect, Axis Camera Station, Hanwha network video recorders, and most third-party NVR platforms. The SUNAPI HTTP API and Wisenet Open Platform provide vendor-native deeper integration if you're building on Hanwha infrastructure. Wired Ethernet only — no WiFi variant exists.

Audio input (selectable microphone or line) supports G.711, G.726, and AAC-LC compression. Useful for coupling with entry-door audio or perimeter alarm integration.

Operating temperature range of -40°C to +55°C with <90% relative humidity covers most outdoor geographies except sub-Arctic winters (storage rated to -50°C). If you're deploying in a freezer or heated warehouse interior, confirm ambient range first.

Ideal Deployment Scenarios

The XNF-8010RV excels in large outdoor environments where reducing camera count is a priority: parking facilities, transportation hubs, city centers, campuses, industrial perimeters, and critical infrastructure sites. Its panoramic geometry and on-board analytics make it equally suitable for security surveillance and operational metrics (crowd density, dwell time, queue length). If you need wall-mount coverage of a narrow hallway or a tight building corner, a conventional narrow-angle unit will serve better.

Frequently Asked Questions

Q: What's the maximum infrared range on the XNF-8010RV?

A: 15 meters (49 feet). Practical for parking lots and building perimeters but insufficient for warehouse or long-distance perimeter coverage. Plan accordingly for larger outdoor sites.

Q: Can I use the XNF-8010RV with standard ONVIF VMS platforms like Milestone Xprotect or Genetec?

A: Yes. The XNF-8010RV supports ONVIF Profiles S, G, and T. Most major VMS platforms support ONVIF ingestion; confirm your specific VMS version with the publisher before deployment.

Q: Does the XNF-8010RV support edge recording if the network fails?

A: Yes. Dual microSD/SDHC/SDXC slots support up to 512GB per slot (1TB total). 24/7 H.265 recording yields roughly 24–48 hours of local backup depending on frame rate and scene complexity.

Q: What's the power consumption, and will it strain my PoE switch?

A: Maximum 12.95W via standard IEEE 802.3af PoE. Well within the 15W per-port budget of any Class 3 PoE switch. No additional power supply required.

Q: How does the 360° panoramic view work in a VMS? Do I see distortion?

A: The camera outputs the raw 360° panoramic image at up to 2048x2048 resolution. Your VMS can display the original panoramic view, single panorama (unwrapped), double panorama, or quad view depending on configuration. Panoramic formats do include some edge distortion — typical of any wide-angle optic. Test the output format with your intended VMS before full deployment.

Q: Is the XNF-8010RV suitable for sub-zero outdoor climates?

A: Operating range is -40°C to +55°C. The lower limit meets most temperate and subarctic climates. However, extreme sub-zero environments (below -40°C) exceed specification. Confirm local ambient minimums before ordering for cold-region deployments.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNF-8010RV represents a mature, field-proven implementation of panoramic fisheye technology for outdoor surveillance. Its 360° capture and flexible output formats (original, panorama, quad) solve a genuine operational problem: replacing 2–3 narrow-angle cameras in high-value sites while keeping deployment complexity manageable. The combination of 6MP resolution, 120dB WDR, and on-board analytics (motion, loitering, people counting) makes it genuinely useful for both security and operational intelligence — parking utilization, crowd flow, perimeter breach detection. This is a unit where the specification complexity pays real dividends on site.

Technical Highlights:

• H.265 compression: Cuts storage 40–60% versus H.264 on the same bitrate — material savings across a multi-camera 24/7 deployment. 1TB microSD edge storage (dual 512GB slots) gives you 24–48 hours of H.265 backup if your NVR goes dark.
• 15m IR range: Adequate for parking and building perimeter but won't reach deep into large outdoor areas. If your site requires 30m+ IR illumination, test with an additional narrow-angle IR-capable unit in shadowed zones.
• 120dB WDR + SSNR V: Delivers legible facial and vehicle detail in mixed-light scenes — the perimeter entry at dusk with bright sky behind it. Without this, that zone would be silhouette; with it, you get usable footage.
• 12.95W PoE draw: Fits any standard Class 3 switch without per-port power haggling. A 48-port PoE switch can handle 20+ XNF-8010RV units on sustainable power budget.

Deployment Considerations:

• Panoramic output creates edge distortion, especially at extreme angles — inherent to fisheye optics. Familiarize your VMS output mode (quad view, panorama, or original) in a test environment before site-wide rollout.
• ONVIF ingestion is rock-solid, but Hanwha Hanwha IP cameras in the Wisenet ecosystem gain deeper native integration (firmware updates, bulk configuration, advanced analytics). If you're committed to Hanwha backend, this unit becomes more valuable.
• Outdoor wall or pendant mount only — no ceiling-dome variants exist. Ensure your chosen mount location allows 360° unobstructed view; even partial occlusion (like a corner eave) defeats the panoramic advantage.
• microSD write speed matters for H.265 reliability — use Class 10 or higher cards. Budget $300–500 per 512GB card if edge recording is mandatory.

The XNF-8010RV is the right call for parking facilities, campus quads, industrial perimeters, and city centers where you need complete exterior coverage with minimal camera footprint and analytics-ready footage. If you need deep hallway monitoring or sub-zero Arctic deployment, look elsewhere. If you need to consolidate 3 cameras into 1 and get crowd metrics as a bonus, this unit justifies its cost.
