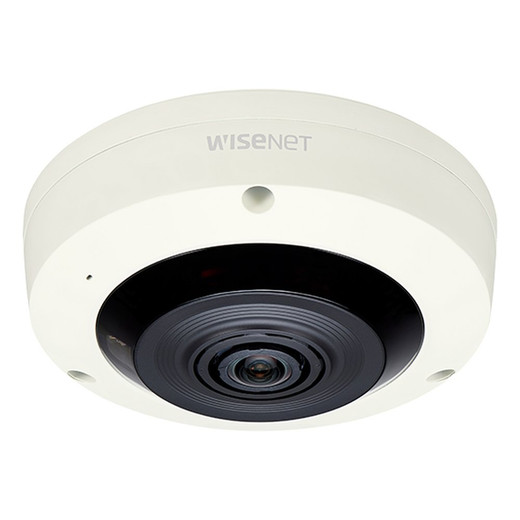

Hanwha XNF-8010R 6MP 360° Panoramic Fisheye Camera

Hanwha XNF-8010R 6MP 360° Panoramic Fisheye Camera

The XNF-8010R delivers complete 360° panoramic surveillance in a single compact device, eliminating blind spots across large interior spaces. With its 6-megapixel 1/1.8" CMOS sensor, 192° field of view across all axes, and fixed 1.6mm F1.6 lens, this fisheye camera captures expansive retail floors, lobbies, office atriums, and public venues with exceptional clarity. The compact 146mm dome form factor simplifies mounting on ceiling or wall while maintaining full hemispherical coverage—meaning a single camera can replace multiple fixed units in the same location, directly reducing equipment and installation costs.

Coverage & Image Quality

The 6MP resolution (2048×2048 per panoramic view) and F1.6 aperture work together to deliver bright, detailed imagery even in mixed lighting or dim conditions without relying on external supplemental lighting. The 120dB Wide Dynamic Range (WDR) combined with HLC (highlights compensation), BLC (backlight compensation), and SSDR (smart sensor dynamic range) allows the camera to handle challenging scenes—for example, a retail floor with bright storefront windows and dark interior aisles simultaneously. This matters because it reduces the need for manual iris adjustment or frequent ROI-based exposure tweaking during commissioning.

Night vision employs 15m IR illumination paired with 0.1 Lux color sensitivity, meaning useful color footage is available at lighting levels that would require thermal or monochrome-only cameras from competitors. The electronic shutter (2 to 1/12,000 seconds) provides fine-grained motion blur control for fast-moving subjects in retail or warehouse settings without sacrificing frame rate.

Output Flexibility & Streaming

The XNF-8010R (often searched as XNF 8010R) supports multiple simultaneous output modes: original fisheye view, single panorama, dual panorama, or quad panorama. This flexibility means a single camera stream can be displayed as a full 360° view in one dashboard window, or dewarped into standard rectilinear imagery for investigators reviewing recorded footage. The camera delivers up to 10 concurrent streams at 30fps full resolution, with H.265 and H.264 compression options. H.265 reduces storage consumption roughly 40–60% versus H.264 depending on scene complexity—a significant factor when deploying multiple panoramic feeds to a 24/7 NVR.

WiseStream II smart codec further optimizes bitrate by reducing bandwidth on static or low-motion zones while preserving detail in high-activity areas, extending recording retention on fixed storage budgets.

Analytics & Business Intelligence

Built-in analytics include motion detection, directional motion detection, loitering detection, tampering alerts, virtual line crossing, and sound classification. Business intelligence tools—people counting, queue management, and heatmap visualization—provide immediate operational insights without requiring external analytics servers or plugins. These tools are useful for retail loss prevention (identify high-traffic areas and behavioral patterns), hospitality (monitor occupancy and guest flow), and logistics (queue depth alerts).

Privacy masking supports 32 quadrangle zones with multiple colors for flexible coverage compliance. Motion detection zones are configurable with 8-point polygonal boundaries, allowing you to isolate alert regions and reduce false alarms in mixed-use spaces.

Integration & Connectivity

The camera is fully enterprise-ready: IPv4/IPv6, ONVIF Profile S/G/T compliance, HTTPS/SSL encryption, and 802.1X authentication. Integrated audio I/O with selectable microphone or line input (and built-in microphone option) enables two-way communication or event-triggered audio alerts. Dual microSD/SDHC/SDXC slots support up to 512GB total edge storage for local video backup or failover recording when network connectivity is temporarily lost.

Power is straightforward: IEEE 802.3af PoE Class 3 (~13W typical draw), so standard PoE switches and midspan injectors deliver full power without dedicated 12VDC supplies. Operating temperature range is -10°C to +55°C, suitable for climate-controlled indoor environments such as retail, office, and hospitality venues.

When to Choose a Different Model

The XNF-8010R is purpose-built for indoor panoramic coverage. If your deployment requires outdoor weatherproofing (IP67 or higher) or significantly higher resolution (beyond 6MP per view), evaluate alternative form factors or higher-megapixel IP cameras from the same Hanwha line. For applications requiring PTZ (pan-tilt-zoom mechanical movement) rather than fixed panoramic coverage, consider a dedicated motorized PTZ camera instead.

Frequently Asked Questions

Q: Does the XNF-8010R support dewarping to standard rectilinear video?

A: Yes. The camera outputs multiple simultaneous modes including dewarped single-view, dual-view, and quad-view panoramas alongside the original fisheye feed. You can configure which streams your NVR or VMS receives.

Q: What is the maximum storage capacity with the microSD slots?

A: The dual microSD/SDHC/SDXC slots support up to 512GB total, allowing local edge recording for failover or temporary network outages.

Q: Is the XNF-8010R ONVIF compliant?

A: Yes, it supports ONVIF Profile S, G, and T, enabling integration with third-party VMS platforms and NVRs that conform to the open standard.

Q: Can the XNF-8010R be powered by standard 802.3af PoE?

A: Yes. The camera draws approximately 13W (Class 3 PoE), so it operates on standard 802.3af-compliant switches and injectors without additional power supplies.

Q: What is the IR range, and does it work in complete darkness?

A: The camera provides 15m IR illumination with 0.1 Lux color sensitivity, meaning it captures usable color video at very low light levels. In complete darkness, IR illumination activates automatically (subject to IR LED output and distance limitations).

Q: Are the panoramic outputs suitable for forensic-level detail?

A: The 6MP resolution and dewarping modes provide reasonable investigative clarity for facial recognition at close range and clothing/vehicle details at medium distances, typical of retail and lobby deployments. For critical forensic detail on specific regions, consider supplementing with higher-resolution fixed cameras at key entry/exit points.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNF-8010R represents a mature, practical approach to panoramic surveillance—combining proven fisheye optics with granular analytics and edge processing. The 6MP resolution balances expansive coverage against usable investigative detail, and the flexible output modes (panorama, dewarped single/dual/quad views) address the real-world challenge that not every analyst wants to watch a 360° fisheye view all day. WiseStream II codec is a quiet efficiency win: it cuts bandwidth 40–60% versus H.264 on typical retail or lobby scenes, which matters when you're managing multiple panoramic streams on a modest NVR.

Technical Highlights:

• 120dB WDR + 0.1 Lux color sensitivity: Retail and lobby deployments routinely face mixed lighting (bright windows, dim aisles, spotlights). This combination delivers usable color video in both extremes without constant manual tweaking or scene-dependent recording profiles.
• 15m IR with F1.6 optics: The aperture and IR range work together to provide reliable nighttime coverage without external supplemental lighting—important for facilities where IR retrofitting isn't practical or where you want to minimize IR spill into adjacent spaces.
• People counting + heatmap analytics: Built-in, not cloud-dependent. Retail loss-prevention and warehouse-occupancy teams can leverage these immediately without spinning up a separate analytics appliance.
• ~13W PoE draw: Standard 802.3af switches handle this without power budget anxiety. Simplifies cabling and reduces cost compared to higher-wattage PoE+ cameras.

Deployment Considerations:

• The 6MP panoramic resolution is solid for retail and common entry/exit investigation, but don't expect forensic-grade facial recognition at 30 feet—pair with supplemental fixed high-megapixel cameras at critical zones if that's a requirement.
• Dual microSD slots are genuinely useful for edge failover, but they're not a substitute for centralized NVR storage on a multi-camera system. Use them for temporary buffer or isolated site recording only.
• IR range is 15m in optimal conditions; actual useful range indoors is typically 8–12m depending on ceiling height and reflectivity. Don't expect reliable IR coverage across a warehouse floor without intermediate placement.

This camera excels in retail loss-prevention and hospitality lobby monitoring where comprehensive single-point coverage and business intelligence (people counting, queue depth, traffic heatmaps) justify the panoramic form factor. It's also a solid fit for small-to-medium office atriums and conference-area overviews. Avoid it if your site demands outdoor weatherproofing or if you need mechanical PTZ.
