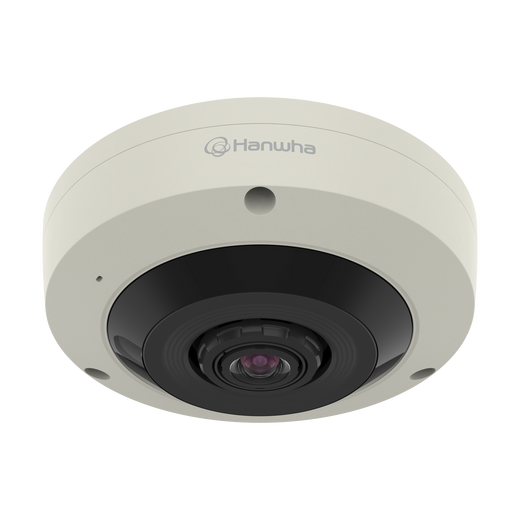

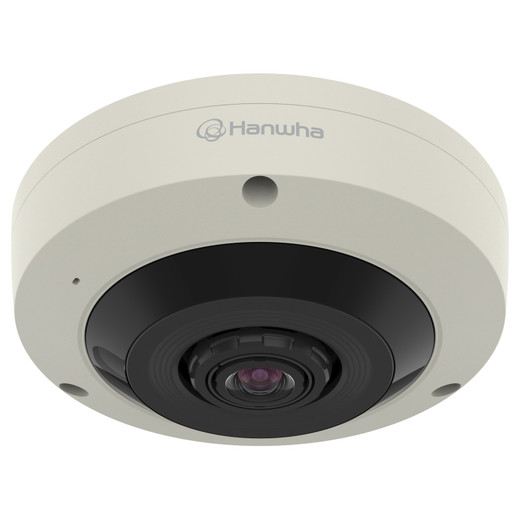

Hanwha XNF-8010RVB 6MP Panoramic Fisheye Camera
The Hanwha XNF-8010RVB is a 6MP outdoor fisheye network camera purpose-built for panoramic surveillance in harsh, high-vandalism environments. Built on the Hanwha Wisenet X platform, this camera delivers 2048x2048 resolution at 30fps with a 1.6mm fixed lens providing an expansive 192° field of view. Engineered for perimeter security, parking facilities, and facility-wide monitoring, the XNF-8010RVB combines robust vandal-resistant construction with intelligent video analytics to maximize coverage while minimizing blind spots.
Key Features
- 6MP CMOS sensor with 2048x2048 @ 30fps panoramic imaging
- 1.6mm fixed lens with 192° field of view (fisheye)
- IP66 weatherproof rating for outdoor deployment
- IK10 vandal-resistant construction for high-abuse areas
- PoE (802.3af) and 12VDC power options
- H.265, H.264, and MJPEG codec support with WiseStream II optimization
- IR night vision with 49-foot effective range
- 120dB Wide Dynamic Range (WDR) for challenging lighting conditions
Technical Highlights
The XNF-8010RVB leverages advanced imaging technologies to deliver reliable surveillance in demanding environments. Its 120dB WDR capability handles high-contrast scenes with bright objects and backlit conditions, while IR illumination ensures clear monitoring in low-light and nighttime scenarios. The camera supports triple video codecs, with H.265 compression enabling efficient bandwidth and storage utilization through WiseStream II technology.
Intelligent features include defog detection, Digital Image Stabilization (DIS), and Highlight Compensation (HLC) for optimal image quality across varying conditions. Business analytics and video/sound classification capabilities enable automated event detection and proactive alarm triggering.
Installation is streamlined with dual SD card slots for local recording backup, USB connectivity, and flexible power options. Operating across a wide temperature range of -40°C to +55°C, the camera performs reliably in extreme climates.
Applications
- Perimeter and facility-wide surveillance
- Parking lot and vehicle monitoring
- Industrial and warehouse security
- Campus and property protection
- High-vandalism outdoor environments
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The XNF-8010RVB is positioned as a premium panoramic solution for organizations prioritizing coverage efficiency and durability. Its 192° fisheye perspective eliminates traditional multi-camera setups, reducing deployment complexity and cost while simplifying integration with modern Wisenet X platforms. The IK10 rating and IP66 sealing address critical needs in harsh outdoor environments where weather and vandalism present ongoing challenges.
The H.265 codec support is particularly valuable for large-scale deployments, as bandwidth savings compound across multiple cameras. Advanced video analytics and intelligent codec switching through WiseStream II provide flexibility for varied monitoring scenarios—from continuous recording to event-triggered capture.
This camera is best suited for security teams with established Hanwha/Wisenet infrastructure seeking high-impact panoramic coverage in outdoor, high-risk areas. Its combination of robustness, analytics, and efficiency makes it a strong choice for enterprise facility security.
