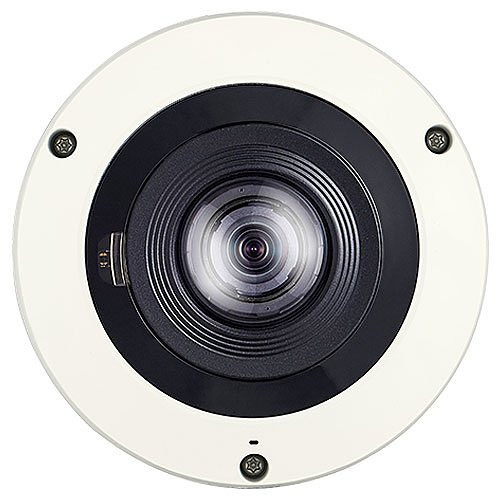

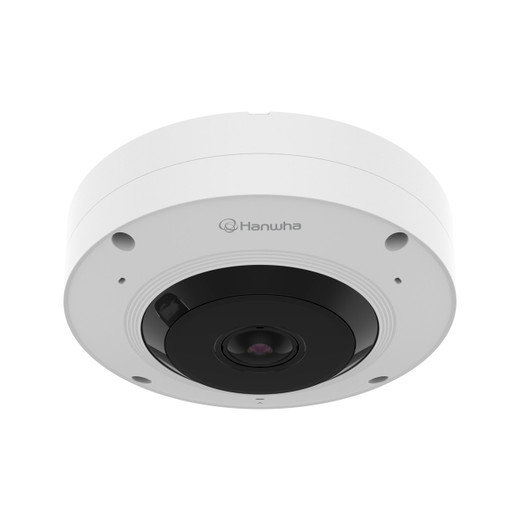

Hanwha XNF-A8014R 6MP Panoramic Fisheye Camera
The Hanwha XNF-A8014R is an indoor AI-powered panoramic fisheye camera engineered for comprehensive 360-degree surveillance coverage in low-light and dark environments. Featuring a 1.76mm fixed fisheye lens with 185° horizontal and vertical field of view, this camera delivers immersive situational awareness in a single compact form factor, ideal for monitoring large interior spaces such as retail stores, warehouses, and facilities where expansive coverage is critical.
Key Features
- 6MP resolution with 2048×2048 format for exceptional panoramic detail capture
- 1.76mm stereographic fisheye lens with 185° panoramic field of view
- Built-in IR illumination with 0.5m range for reliable low-light and night surveillance
- Extreme WDR (120dB) for balanced exposure in high dynamic range scenes
- H.265, H.264, and MJPEG codec support with bandwidth optimization
- Day/Night mode with automatic switching for continuous operation
- PoE+ (802.3at) power delivery for simplified installation
- IP42 rated enclosure with dust and splash resistance
- MicroSD card slot supporting up to 1TB local storage
- ONVIF compatibility for open-platform integration
- HTTPS encryption for secure video transmission
Technical Specifications
The XNF-A8014R operates over standard Ethernet connectivity with PoE+ Class 3 power, eliminating the need for separate power lines. Its advanced imaging pipeline includes WDR processing and AI-based noise reduction, ensuring clean, usable video in challenging lighting conditions. The camera supports multiple video codecs, allowing operators to balance quality and bandwidth requirements based on network capacity and storage constraints. With microSD card support, on-board recording provides a redundancy layer for critical surveillance applications.
Applications
- Large retail and shopping mall environments requiring expansive single-camera coverage
- Warehouse and distribution center monitoring with minimal blind spots
- Transportation hubs and public facility surveillance
- Building lobbies and entrance monitoring with comprehensive angular coverage
- Facilities where panoramic scene reconstruction and forensic review are required
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
The XNF-A8014R leverages fisheye optics to deliver unmatched field-of-view coverage in applications where multiple standard cameras would be required. The 2048×2048 resolution format maximizes pixel density across the panoramic image sphere, and the 1.76mm lens provides minimal distortion while maintaining the 185° horizontal and vertical coverage that defines panoramic surveillance. The combination of built-in IR, extreme WDR, and AI-based noise reduction ensures the camera performs across diverse lighting conditions—critical for 24/7 indoor monitoring where lighting may vary significantly throughout the day.
PoE+ power simplifies deployment and reduces installation costs, while IP42 protection provides adequate ingress resistance for indoor environments. The ONVIF-compliant architecture ensures vendor flexibility and integration compatibility with third-party VMS platforms and analytics systems.
