Hanwha XNF-8010R RB 6MP Panoramic Fisheye Camera

Hanwha XNF-8010R RB 6MP Panoramic Fisheye Camera

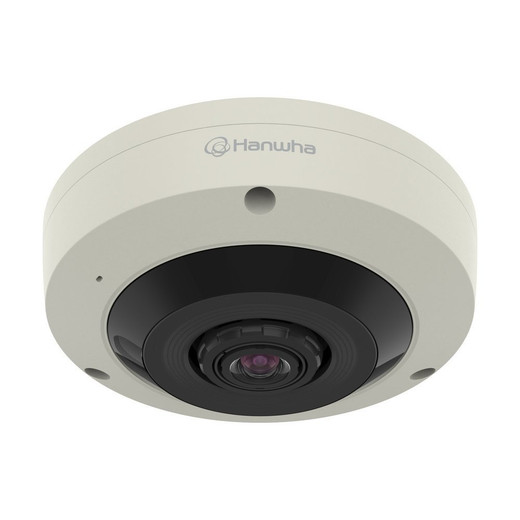

The Hanwha XNF-8010R RB is a 6MP panoramic fisheye IP camera designed to deliver comprehensive single-camera coverage in indoor environments. Built on Wisenet X architecture with Wisenet 5 intelligence, this camera provides 360° panoramic field of view when ceiling-mounted, eliminating blind spots and reducing the number of cameras needed for full-area surveillance. The fixed 1.6mm lens captures crisp imagery at 2048×2048 resolution and 30 fps, making it ideal for retail spaces, warehouses, facilities, and large open areas requiring complete monitoring from a single vantage point.

Key Features

• 6MP 1/1.3" CMOS Sensor — Large-format sensor captures fine detail across the panoramic field of view, supporting forensic-quality image review and identity confirmation at distance.
• H.265 Video Compression — Advanced codec reduces bandwidth and storage overhead while maintaining image quality, with H.264 and MJPEG fallback support for broad VMS compatibility.
• 120dB Wide Dynamic Range (WDR) — Forensic-grade WDR enables clear imagery in mixed lighting conditions, capturing detail in both bright and shadowed areas simultaneously without washout.
• High-Powered IR Night Vision (49 ft Range) — Optimized IR technology delivers reliable low-light and night vision coverage, extending surveillance capability beyond daylight hours without supplemental lighting.
• PoE Powered — Powered via standard PoE, eliminating the need for separate power infrastructure and simplifying installation.
• Dual microSD Card Slots — On-board storage provides edge recording capability for redundancy and local backup.
• Sound Classification & Business Analytics — Built-in audio intelligence and advanced analytics enable proactive monitoring and operational insights.
• Ceiling Mount Design — Optimized form factor for flush ceiling installation, delivering true panoramic coverage in compact spaces.
• ONVIF Compliance — Full compatibility with ONVIF-compliant VMS platforms ensures seamless integration into existing security ecosystems.

Technical Specifications

• Resolution: 6MP at 30 fps
• Lens: Fixed 1.6mm fisheye
• Image Sensor: 1/1.3" CMOS
• Video Compression: H.265 (H.264, MJPEG supported)
• IR Range: 49 feet
• WDR: 120dB
• Power: PoE
• Storage: Dual microSD card slots
• Mount Type: Ceiling

Ideal Applications

• Retail stores and shopping centers requiring comprehensive floor coverage
• Warehouses and logistics facilities needing panoramic monitoring
• Office lobbies, atriums, and open-plan facilities
• Banks, casinos, and high-security environments with forensic recording requirements
• Public facilities and transportation hubs

Ted Perry

The XNF-8010R RB stands out in the fisheye category for its large 1/1.3" sensor and aggressive 1.6mm lens, delivering higher pixel density across the panoramic field than competitive offerings. The 120dB WDR is particularly valuable in retail and mixed-lighting environments where traditional WDR implementations struggle. H.265 codec support is critical for organizations managing bandwidth constraints across multiple locations.

The dual microSD slots and edge analytics (sound classification, business metrics) position this camera as a complete surveillance solution rather than a simple panoramic capture device. Ceiling mount optimization makes installation straightforward while maximizing spatial efficiency. PoE power delivery simplifies infrastructure requirements.

ONVIF compliance ensures vendor flexibility and future-proof integration. The 49-foot IR range provides reliable night vision coverage in most interior spaces without supplemental lighting.
