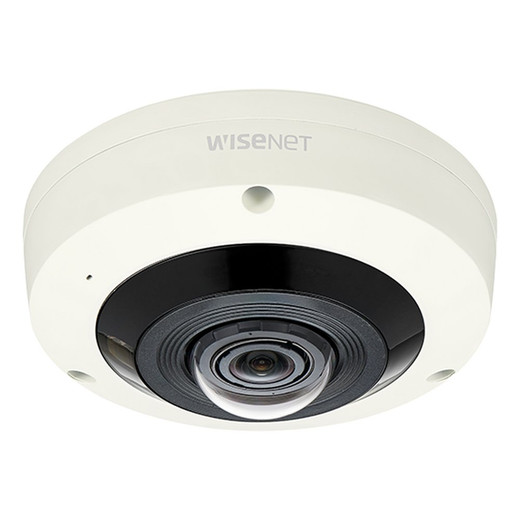

Hanwha XNF-8010RVM 6MP 360° Fisheye IP Camera

The Hanwha XNF-8010RVM is a 6MP panoramic fisheye camera engineered for deployments where a single compact sensor must cover expansive outdoor areas without the cost and complexity of multi-camera arrays. Its 1/1.8" CMOS sensor and 192° horizontal, vertical, and diagonal field of view deliver genuine 360° surveillance, eliminating the blind-spot problem that typically requires three or more conventional cameras. The XNF-8010RVM outputs multiple view formats—original circular, single/double panorama, and quad-view—so you can optimize the image for your VMS or monitoring workflow without hardware changes.

Key Features

• 360° Panoramic Coverage: A single 6MP sensor captures the full hemisphere, reducing camera count and installation labor in perimeter, parking, and facility-wide deployments.
• Flexible Output Formats: Original circular view, single panorama (2048×512 max), double panorama (2048×1024 max), and quad-view modes let you choose the aspect ratio that works best for your storage and display strategy.
• Exceptional Low-Light Performance: Rated 0.1 Lux color at F1.6 and 0 Lux with IR enabled—critical for outdoor sites with minimal ambient light. 15-meter IR illumination range with 120dB Wide Dynamic Range ensures the camera doesn't wash out when viewing toward bright areas like parking-lot lighting.
• Rugged Outdoor Build: IP66 weatherproof and IK10 vandal-resistant housing withstands direct rain, dust, and heavy impact. Operating range of −40°C to +55°C covers cold industrial facilities and hot sun-exposed areas.
• PoE-Only Power Delivery: Draws approximately 13W via standard IEEE 802.3af PoE over M12 Ethernet connector—no separate 12VDC or AC power supply required, simplifying cabling and reducing single points of failure.
• H.265 and H.264 Compression: Dual-codec support with WiseStream II smart codec reduces bandwidth and storage costs by up to 50% compared to standard H.264—a meaningful savings when recording 24/7 across dozens of cameras on a shared NVR.
• On-Camera Analytics: Motion detection across 8 polygonal zones, directional detection, loitering alerts, tampering detection, virtual line crossing, audio detection, and people counting eliminate the need for separate edge or server-based analytics in many scenarios.
• Edge Recording Capacity: Dual microSD/SDHC/SDXC slots support up to 512GB total—useful for failover recording or off-network storage when your NVR is unavailable.
• 30fps Streaming: Delivers smooth motion at full frame rate across up to 10 simultaneous profiles, supporting both live monitoring and archival recording without frame-rate negotiation.
• Network Interoperability: ONVIF Profile S/G/T compliance ensures integration with third-party VMS platforms like Milestone XProtect, Genetec, and others. Native Wisenet integration for Hanwha ecosystem deployments.
• Integrated Audio: Selectable microphone, line, and built-in microphone inputs with G.711/G.726 compression support two-way communication or event-triggered audio logging.
• Security Hardening: HTTPS/SSL encryption, IP filtering, 802.1X EAP authentication, and digest authentication protect against unauthorized access and network eavesdropping.

Integration & Compatibility

The XNF-8010RVM ships with M12 Ethernet connectivity standard, compatible with any IP camera management system that supports ONVIF Profile S or Wisenet protocols. Consult your NVR or VMS vendor's camera-compatibility matrix before purchase to confirm codec and analytics pass-through support. Fixed 1.6mm focal length with remote network focus control eliminates mechanical focus drift common in motorized lenses—set once during commissioning and do not revisit.

Deployment Scenarios

Ideal for critical infrastructure perimeter monitoring, campus security, logistics hubs, outdoor event coverage, and any environment requiring panoramic surveillance without multiple camera installations. The 146mm diameter form factor and 790g weight mount easily on poles, walls, or ceilings using standard VESA or pendant adapters. Refer to surveillance system design guides for PoE switch planning, as even light PoE loads accumulate across dozens of cameras.

Frequently Asked Questions

Q: How does the XNF-8010RVM compare to deploying three conventional 2MP cameras?

A: A single XNF-8010RVM eliminates installation labor, cabling, and power redundancy management, but the fisheye output modes trade spatial resolution for coverage breadth. Single-panorama 2048×512 output distributes 6MP across a stretched horizontal plane, delivering effective pixel density comparable to 2–3MP conventional cameras. Choose the XNF-8010RVM if coverage area and camera count matter more than zoomed object detail; choose multi-camera arrays if you need high resolution in specific zones.

Q: What is the maximum PoE power consumption, and will a standard 95W PoE injector handle multiple units?

A: The XNF-8010RVM draws approximately 13W under typical operation, well within IEEE 802.3af limits. A single 95W PoE injector can support roughly six cameras plus switch overhead. For larger deployments, use a managed PoE switch with per-port monitoring to avoid brownouts.

Q: Does the panoramic output work with Milestone XProtect or Genetec SecurityCenter?

A: Yes. The camera supports ONVIF Profile S and delivers raw 2048×2048 circular frames plus panoramic re-mappings through standard ONVIF video stream protocols. Both VMS platforms accept ONVIF streams, though panoramic transformation plug-ins may be required for specialized viewing. Test with your VMS vendor's integration lab before production deployment.

Q: What is the IR illumination range, and does it cause glare or washout in narrow corridors?

A: 15-meter (49 ft) IR range is appropriate for wide-open areas like parking lots and perimeters; expect reduced effectiveness in enclosed spaces. The 120dB WDR compensates for bright ambient light but does not prevent local IR glare if the camera is mounted too close to reflective surfaces. Plan IR throw distance during site survey.

Q: Can I record video locally to the microSD card if my NVR fails?

A: Yes. Dual microSD slots support up to 512GB total capacity. Configure the camera's on-board storage settings via the web interface or management software to enable continuous or event-triggered local recording as a failover—review retention math (24/7 6MP H.265 footage consumes 20–40 GB per day depending on scene complexity) before relying on this for long-term archive.

Q: Is the XNF-8010RVM TAA or NDAA-compliant?

A: Not confirmed in the available evidence. Contact your Hanwha regional representative or reseller to confirm Section 889 compliance status for federal/defense procurement.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNF-8010RVM solves a specific problem: organizations need 360° coverage without the cost and installation complexity of multi-camera deployments, but they must accept a hard tradeoff in spatial resolution. The fisheye architecture delivers single-sensor efficiency, but understand what that means operationally. When you use panoramic output modes—which is the practical way to exploit the 360° field—you're distributing 6MP across a stretched horizontal plane. The single-panorama 2048×512 format delivers effective pixel density comparable to 2–3MP conventional cameras. This is not a limitation of the camera; it's inherent to how fisheye and panoramic remapping work. For perimeter monitoring, parking-area patrol, and facility-wide situational awareness, the tradeoff is favorable. For license-plate capture or facial identification at distance, deploy conventional turrets or PTZs instead.

Technical Highlights:

• 0.1 Lux @ F1.6 Color + 0 Lux IR: Dual operating modes cover day-to-night transitions without manual switching or frame-rate penalties. The 15-meter IR throw is suitable for perimeter and parking deployments but not long-range outdoor sites; plan distance during site survey.
• 120dB WDR with ICR + BLC/HLC: Prevents backlight washout when the camera views toward parking-lot lighting or building facades. Forensic image recovery is better than single-exposure competitors in high-contrast scenes.
• H.265 with WiseStream II Codec: Storage reduction of 40–60% versus H.264 is material on 24/7 multi-camera NVRs. At 30fps full-resolution, expect 20–40 GB per day per camera depending on motion complexity; the codec savings extend retention by roughly one-third on fixed storage budgets.
• 13W PoE (802.3af): Standard-class power means no dedicated PSU, no extra cabling, and no single point of failure related to AC mains. Fits comfortably on any managed switch without overload risk.

Deployment Considerations:

• Panoramic output requires VMS software that understands ONVIF panoramic stream formats or vendor-specific transformation APIs. Test compatibility with your VMS before committing to large rollouts.
• The fixed 1.6mm lens eliminates motorized focus drift, but there is no zoom or lens adjustment after installation. Field-of-view is locked at capture time; on-sensor digital zoom is available but reduces effective resolution further.
• IR glare is possible if the camera is wall-mounted near reflective surfaces (white paint, metal, glass). Orient and elevate the camera to minimize reflection into the lens during commissioning.
• Fisheye distortion remains visible in circular-view formats. Some operators find the panoramic reprojection modes more intuitive, but this requires compatible VMS plug-ins or custom integration.

Position the XNF-8010RVM in perimeter monitoring (fence lines, building rooflines), large-area parking facilities, warehouse entry canopies, and campus-wide overwatch where coverage breadth and camera count reduction outweigh fine-detail resolution. Pair with a capable NVR that supports ONVIF Profile S and H.265 decoding, and confirm your network infrastructure plan includes PoE power budgeting across all cameras. Not suitable for applications requiring facial ID, license-plate OCR, or tight object zoom at distance.

Key Specifications:
Field of View: H: 192˚ / V: 192˚ / D: 192˚
Color: White
