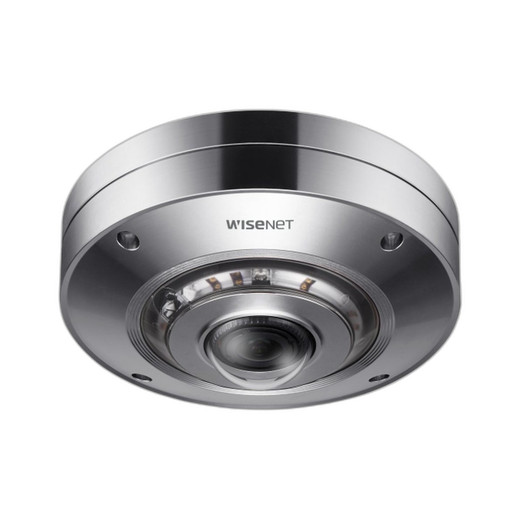

Hanwha XNF-9010RS 12MP Outdoor IR Fisheye Camera

Hanwha XNF-9010RS 12MP Outdoor IR Fisheye Camera

The Hanwha XNF-9010RS is a 12MP outdoor fisheye IP camera built for comprehensive 360-degree panoramic surveillance. Its 1/2.3" 12MP CMOS sensor and advanced optics deliver a 187° horizontal, vertical, and diagonal field of view—meaning a single installation point replaces multiple fixed cameras, reducing hardware count and simplifying cable routing. The XNF-9010RS offers four viewing modes (original fisheye, single panorama, double panorama, quad view), so operators extract multiple perspectives from one camera feed without wasting resolution.

Key Features

• Panoramic Coverage & Viewing Modes: 187° field of view with selectable fisheye, single panorama, double panorama, and quad view outputs—consolidates what would traditionally require 2–3 fixed cameras into one installation, shrinking your bill-of-materials and simplifying cable runs, especially in tight ceiling or wall-mounted scenarios.
• 12MP Resolution with H.265 Compression: H.265 encoding cuts bandwidth and storage consumption roughly 40–60% compared to H.264 on the same scene—a significant operational win if you're running 24/7 recording or streaming multiple panoramic feeds simultaneously. WiseStream II further optimizes bitrate dynamically based on motion and scene complexity, so static zones don't waste storage.
• Extreme WDR (120dB) & Low-Light Performance: 120dB wide dynamic range handles mixed-light scenes (bright windows + dark interiors) without excessive overexposure or shadow loss. F2.2 aperture and 0.39 Lux color sensitivity ensure usable daytime color video even in dim conditions. When darkness falls, IR illumination reaches 8 meters (26.25 feet), pushing true night vision without relying on external lighting.

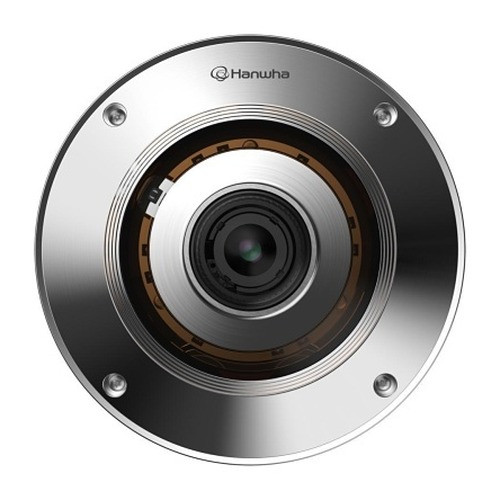

• IP66/IP67/IK10+ Weatherproof & Vandal-Resistant Construction: Stainless steel (SUS316L) housing and nylon dome dome withstand direct rain, dust storms, and high-pressure water jets (IP6K9K rated). IK10+ rating absorbs 40-joule impacts—suitable for high-traffic outdoor environments (airports, transit hubs, parking structures). Operating temperature range of -40°C to +50°C supports arctic and desert deployments without thermal issues.
• PoE (IEEE 802.3af) Powered with Minimal Energy Draw: Draws under 13W via standard PoE, so it won't strain switch power budgets and eliminates the need for separate power supplies at the installation point—meaningful savings on site wiring and UPS costs across large deployments.
• Advanced On-Camera Analytics: Includes people counting, queue management, heatmaps, motion detection (8 configurable zones), defocus detection, directional detection, appear/disappear, enter/exit, loitering, tampering, virtual line crossing, and audio detection. These run locally on the camera, offloading processing from your VMS and enabling real-time alerts without additional edge compute hardware.
• Dual SD Card Slot (Up to 1TB Local Edge Storage): Supports dual SD cards for redundant local recording, so brief network outages don't erase footage. Critical for retail loss prevention, parking enforcement, or remote sites with unreliable connectivity.
• Multi-Codec & Streaming Flexibility: Supports H.265, H.264, and MJPEG—accommodates legacy VMS systems and modern codec-agnostic platforms. Up to 10 simultaneous streaming profiles with unicast and multicast distribution to 20 users allows operators, remote analysts, and archived feeds to coexist on a single camera without network bottlenecks.
• Enterprise Security & ONVIF Compliance: HTTPS/SSL encryption, 802.1X authentication, IP filtering, and digest login protect credentials. Full ONVIF Profile S/G/T compliance and SUNAPI support ensure seamless integration with IP cameras management platforms and NVRs from vendors like Milestone, Genetec, and Hanwha's own platform.

When to Choose the XNF-9010RS

This model excels in retail loss prevention (wide aisles and checkout), transportation hubs (boarding areas, platforms), airports (departure lounges, concourses), and industrial facilities (warehouse floors, parking lots) where panoramic coverage reduces blind spots and camera footprint. The 360° panoramic design is also ideal for sites with challenging cable routing—fewer drops to the ceiling means lower installation labor and hidden cable runs.

If your primary need is fixed, narrow-angle surveillance in a single direction, or if you require extreme zoom capability (40x+), consider a traditional bullet or turret camera or PTZ camera in the same Hanwha IP camera family instead. Fisheye panoramic designs excel at coverage density, not zoom depth.

Integration & Compatibility

The XNF-9010RS integrates directly with any ONVIF-compliant network video recorder, VMS, or management platform. Hanwha's WiseStream technology can be managed through SmartVMS, and the camera's edge analytics feed business intelligence directly into retail intelligence, crowd management, and security operations workflows. For help determining integration fit with your NVR or VMS, consult your platform's compatibility matrix or reach out to your systems integrator.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNF-9010RS is a genuine consolidation play—it trades zoom reach for panoramic density. If you're accustomed to deploying 3–4 fixed 5MP cameras per large room or corridor, the XNF-9010RS (often searched as XNF 9010RS) cuts that to one 12MP install point, and the quad-view mode lets operators pick any quadrant they need without re-positioning hardware. The 120dB WDR is the standout here: backlit glass doors and high-contrast warehouse floors stop being a tuning nightmare.

Technical Highlights:

• H.265 Codec with WiseStream II: 40–60% storage reduction versus H.264 at equal visual quality. On a 30-camera 24/7 deployment, that's the difference between a 36TB and 60TB NVR—budget and power draw matter.
• 8-Meter IR Range: Covers most warehouse aisles and outdoor loading docks without ambient light. Beyond 8m, fallback to white lighting or accept grayscale mode; the camera won't overexpose nearby subjects trying to light distant ones.
• IP67 Submersion Rating (in Addition to IP66): Often overlooked—IP67 means temporary submersion to 1 meter for up to 30 minutes. Handhose washdowns won't kill it, but extended flooding will. Stainless steel housing resists salt spray and chemical washdown environments common in food processing.
• PoE Efficiency (Sub-13W Draw): Low power budget frees up PoE supply overhead for downstream cameras and edge devices. Useful when you're running a long cable run or stacking multiple cameras on a single PoE switch.

Deployment Considerations:

• Fisheye optics introduce barrel distortion in the original fish view—operators unfamiliar with panoramic modes may find the raw feed disorienting. Always configure your VMS to display panoramic or quad mode by default, not fisheye.
• Panoramic stitching quality depends on scene texture and motion. Fast-moving subjects crossing seams can appear warped or doubled in single/double panorama modes. Test quad view or accept minor artifacts in high-motion zones.
• The 187° field doesn't cover the full 360°—roughly 173° behind the dome is blind. Mount accordingly; don't assume a single XNF-9010RS covers an entire room if the rear wall matters.

Best fit: mid-to-large retail floors, airport concourses, and warehouse receiving areas where you need panoramic coverage without the complexity of PTZ, and where bandwidth/storage optimization directly cuts operating costs. Pair with an edge-analytics-capable NVR to automate heatmap reporting and people counting for store operations teams.

Frequently Asked Questions

Q: What is the actual horizontal field of view, and does the XNF-9010RS provide true 360° coverage?

A: The XNF-9010RS delivers 187° horizontal field of view, which covers most of the front and sides but not the full 360° behind the camera. Plan mounting to ensure rear areas are either out of scope or covered by a separate camera.

Q: How does H.265 compression reduce storage costs, and is it compatible with older VMS systems?

A: H.265 (HEVC) uses roughly 40–60% less space than H.264 at equivalent visual quality, so you either record longer on the same storage or shrink the NVR footprint. Older VMS platforms may not decode H.265 natively; check your platform's codec support. The XNF-9010RS also supports H.264 and MJPEG as fallback codecs, so legacy systems remain compatible.

Q: What is the effective IR illumination range, and will it work in complete darkness?

A: The built-in IR illumination extends to 8 meters (26.25 feet) in total darkness. Beyond 8 meters, IR will be insufficient; you'll need ambient light or external IR supplementation. The camera operates at 0 Lux with IR enabled, so it functions in complete darkness but is range-limited.

Q: Is the XNF-9010RS waterproof, and can it survive outdoor washdowns?

A: The camera holds both IP66 (dust and water spray) and IP67 (temporary submersion) ratings, plus IP6K9K (high-pressure water jets up to 80–100 bar). It will survive standard washdowns but not prolonged flooding or submersion beyond 1 meter depth. Verify your specific washdown pressure with the installer—excessive force can degrade seals over time.

Q: Can I mount the XNF-9010RS on a wall, or does it require ceiling installation?

A: The camera is designed for both wall and ceiling mounting. Wall mounting narrows the effective coverage area (you lose the upper viewing angle), so ceiling mounting is preferred for maximum panoramic coverage. Consult the mounting template and bracket options for your chosen installation orientation.

Q: What VMS platforms are compatible with the XNF-9010RS?

A: The XNF-9010RS supports ONVIF Profile S, G, and T compliance, meaning it integrates with any ONVIF-compliant VMS (Milestone XProtect, Genetec Security Center, etc.). It also supports Hanwha's proprietary SUNAPI protocol for tighter integration with SmartVMS and other Hanwha ecosystems. Verify your specific VMS and NVR model's support before purchase.
