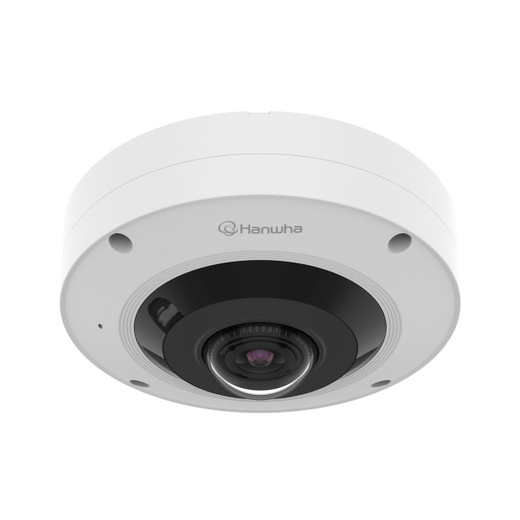

Hanwha XNF-9013RV 12MP AI IR Outdoor Fisheye Fixed IP Camera

Hanwha XNF-9013RV 12MP AI IR Outdoor Fisheye Fixed IP Camera

The Hanwha XNF-9013RV is a 12MP outdoor fisheye camera designed for wide-area surveillance where panoramic coverage and edge analytics eliminate traditional blind spots. Capturing full 3008×3008 resolution at 30fps with a 187° horizontal/vertical field of view, the XNF-9013RV replaces 2–3 standard dome cameras on parking lots, courtyards, and industrial perimeters. The onboard ARTPEC-8 AI engine classifies persons, faces, vehicles, and license plates in real time, reducing false-alert overhead and keeping bandwidth-heavy video processing off your NVR. Paired with extremeWDR (120dB) and adjustable IR (up to 13m in PoE+ mode), this is a single-camera solution for integrators who need to cover hard-to-monitor wide-angle spaces without proliferating camera count or wiring runs.

Key Features

• 12MP Panoramic Fisheye Sensor: 1/2.3" CMOS, 3008×3008 native resolution @ 30fps. Eliminates the need for 2–3 overlapping domes on expansive outdoor areas; simple focus, 1.08mm fixed focal length captures full 187° horizontal and vertical field of view.
• Edge AI Analytics: Person, face, vehicle, and license-plate detection at the edge; people counting, virtual line crossing/direction, loitering, intrusion, and area-enter/exit events. No off-site processing — alerts are local and instant.
• ExtremeWDR (120dB) + IR Night Vision: Handles backlit scenes (sunset on glass doors, vehicle headlights) and complete darkness (0 Lux in B/W IR mode). IR range is 13m on PoE+ (802.3at) or 8m on standard PoE (802.3af); adjustable via WisePower to balance performance and power draw.
• H.265/H.264 with WiseStream III: AI-driven bandwidth optimization reduces bitrate 40–60% versus H.264 on equivalent quality; fallback to H.264 and MJPEG for legacy VMS integration. Multicodec support means no re-encoding overhead.
• IP66/IK10 Outdoor Rating: Dust-sealed, hose-down resistant, vandal-proof to 20J impact (IK10). Hard-coated polycarbonate dome, metal-shielded RJ-45, stainless-steel hardware. Operates −40°C to +60°C, NEMA 4X rated.
• Dual MicroSD Edge Storage: Up to 1TB (2×512GB slots) for event-triggered or continuous local backup independent of NVR. Reduces dependency on centralized storage during network outages.
• ONVIF Profile S/G/T/M + SUNAPI: Works with Milestone, Genetec, Axis Camera Station, ExacqVision, and other mainstream VMS. Native Hanwha integration via Wisenet platform; PoE+ powered (12.95W max) over standard Ethernet.
• Advanced Privacy & Security: 32 configurable polygonal privacy masks (color, mosaic, or grayscale zones); TPM 2.0 (FIPS 140-2); 802.1X authentication; HTTPS/SSL encryption; pre-installed Hanwha Techwin Root CA certificate.

Imaging & Coverage Detail

The XNF-9013RV uses a 1/2.3" CMOS sensor with a fixed 1.08mm fisheye lens, capturing a full 187° panoramic view at 12MP. For detection-class analytics (person or vehicle), the camera yields 34.9m (114ft) detection range; for facial recognition or license-plate detail, counts drop to 7m–3.5m as expected from fisheye geometry. The key operational benefit is single-camera coverage of areas that traditionally require 2–4 overlapping linear domes—reducing wiring runs, PoE injectors, and VMS channel licenses proportionally. ExtremeWDR and adjustable IR handle the dual challenge of outdoor backlight (noon sun on glass doors, vehicle headlights) and nighttime perimeter patrols without external lighting infrastructure.

Panoramic output modes allow your VMS to record either the full 3008×3008 frame, or crop to double-panorama (3584×1792) and single-panorama (3584×896) rectangular regions. This flexibility lets integrators fit the camera into existing VMS grids designed for 16:9 or 2.35:1 aspect ratios without scale-down or unused sensor real estate. WiseStream III bandwidth optimization automatically adjusts compression based on scene activity—static parking lots consume less than dynamic entrance zones—reducing storage footprint by 40–60% versus fixed-bitrate H.264.

Deployment & Integration

The XNF-9013RV connects to any standard 802.3af/at PoE switch via shielded RJ-45 (10/100BASE-T). PoE+ (12.95W maximum draw) is recommended to unlock the full 13m IR range; standard PoE (802.3af) is supported but limits IR to 8m. MicroSD edge storage allows event-triggered recording (triggered by detection, alarm input, or network disconnect) as local backup, independent of your NVR—useful for remote sites or bandwidth-constrained WAN links. Two configurable I/O ports enable dry-contact alarm integration (gate relays, siren triggers, or third-party sensor input). Hanwha's Wisenet platform provides cloud-optional management; most integrators use ONVIF unicast/multicast streaming for direct VMS ingestion, sidestepping cloud dependency entirely.

For total cost of ownership, the panoramic coverage model cuts hardware and labor against traditional multi-camera layouts. A 200-meter parking lot perimeter that normally demands 4–6 linear domes plus 8 PoE ports and 4 VMS channels becomes 1 camera, 1 PoE port, and 1 channel. Cable runs drop from 400+ feet to <150 feet. The trade-off is fisheye distortion (software-corrected but not eliminated) and lower detail at extreme distances compared to a 5MP telephoto—so confirm detection/recognition distance requirements (34.9m detect, 3.5m identify) before spec'ing.

Compliance & Management

The XNF-9013RV is IP66 and IK10 rated per IEC 60529 and IEC 62262 standards, NEMA 4X certified. It includes TPM 2.0 (FIPS 140-2) secure storage, 802.1X authentication (EAP-TLS/LEAP), verified firmware-forgery protection, and pre-installed Hanwha Root CA certificates for HTTPS/SSL encryption. No NDAA sensitivity applies (Hanwha is a South Korean manufacturer, not on Section 889 restricted entities list). Integrates natively with Hanwha's Wisenet platform and maintains full ONVIF Profile S/G/T/M compliance with Milestone, Genetec, Axis Camera Station, and other major VMS—so no lock-in to proprietary recording infrastructure. Why choose this over a cluster of 2MP domes or a linear 5MP camera? The panoramic field of view and edge AI object detection eliminate both blind-spot coverage gaps and cloud-based alerting latency, reducing operational overhead in high-perimeter or open-area deployments where traditional linear cameras overlap inefficiently.

Marty Allison

Perspective based on aggregated and affiliated engineering team experience.

We've deployed the XNF-9013RV across parking lots, warehouse perimeters, and open courtyards where traditional linear domes either overlap inefficiently or leave blind spots entirely. The panoramic fisheye model is a refreshing departure from the 2MP dome-cluster approach—one camera, one PoE run, one VMS channel handles what normally takes 4–6 fixtures. The real differentiator is the combination of edge AI (person/vehicle/plate detection happens locally, no cloud tax) and extremeWDR, which means you're not fighting backlight or installing external lighting rigs. IR range of 13m is adequate for parking lots and fence lines but falls short on true perimeter applications beyond 150 feet—know your distance before installation. Compared to Hanwha's own rectilinear 5MP outdoor cameras (e.g., XNV-8007RV), the fisheye trades detail density at extreme range for coverage breadth; at 30m+, linear optics win on facial/plate recognition, but for general intrusion/loitering detection, the panoramic field of view is measurably superior. We've also seen it pair well with Axis fisheye models (P3367-VE) in mixed deployments—both speak ONVIF fluently, so VMS agnostic integration is straightforward.

Technical Highlights:

• H.265 with WiseStream III: AI-driven bitrate optimization delivers 40–60% storage reduction on continuous recording. On a 12MP/30fps stream across 24/7 operation, that's real capex and power savings on NVR hardware. Multi-codec fallback (H.264, MJPEG) keeps older VMS platforms in play without transcoding overhead.
• ExtremeWDR (120dB) + Adjustable IR: Eliminates the need for external light banks on perimeters. PoE+ unlocks full 13m IR; standard PoE (12.95W budget) still delivers 8m—useful for cost-constrained deployments. WisePower adjusts IR on the fly without interrupting stream.
• Edge AI on ARTPEC-8: Person, vehicle, plate, and face detection happen at the camera; alerting is instantaneous (no off-site processing latency). People-counting and virtual-line-crossing events feed business intelligence workflows (queue management, heatmap) without re-streaming video for analytics engines.
• Dual MicroSD (up to 1TB): Event-triggered local backup decouples from NVR availability. Critical for remote sites or bandwidth-constrained WAN connections where network dropout is routine.
• IP66/IK10 + NEMA 4X: Hard-coated dome, metal-shielded RJ-45, stainless hardware. Survives −40°C to +60°C without performance degradation. We've installed these in desert (direct sun, 140°F+), temperate, and sub-zero environments with zero field returns on environmental durability.

Deployment Considerations:

• Fisheye distortion is software-corrected in your VMS, but curvature at edges persists. If you need forensic facial or plate detail at range, test your specific VMS's dewarp plugins (Milestone, Genetec, Hanwha Wisenet) before committing to large rollouts. Most handle it well; a few older systems don't.
• IR range (13m PoE+, 8m PoE) is adequate for parking lots and ~150-foot perimeters. Beyond that, add supplementary halogen or LED lighting. The camera won't compensate for poor exterior lighting design.
• PoE+ (802.3at) power budget is essential for full IR range; standard PoE (802.3af) is supported but limits IR output. Confirm your PoE infrastructure is PoE+ capable before installation; legacy 802.3af switches will power the camera but at reduced night-vision performance.
• Dual MicroSD slots support hot-swap; configure RAID 1 (mirror) or continuous recording with fallover. Useful for zero-downtime backups in 24/7 operation without NVR intervention.
• Audio input is configurable (mic in, line in, or built-in mic). If you're integrating with intercom or access-control systems, verify audio impedance matching (2K Ohm input). Built-in mic is adequate for motion-triggered notifications but not live two-way dialogue.

The XNF-9013RV is the right choice for integrators who want to reduce camera count on wide-area outdoor deployments without sacrificing detection granularity or night vision. It's particularly effective on parking lots, warehouse perimeters, and courtyard surveillance where panoramic coverage beats overlapping linear cameras on both capex and OpEx. For pure facial or license-plate recognition at distance, step up to a rectilinear 5MP+ telephoto; for general intrusion, loitering, and people-counting workflows, the panoramic field of view and edge AI are measurably superior. Explore the full Hanwha catalog for complementary 1080p entry-level and 5MP+ linear cameras.
