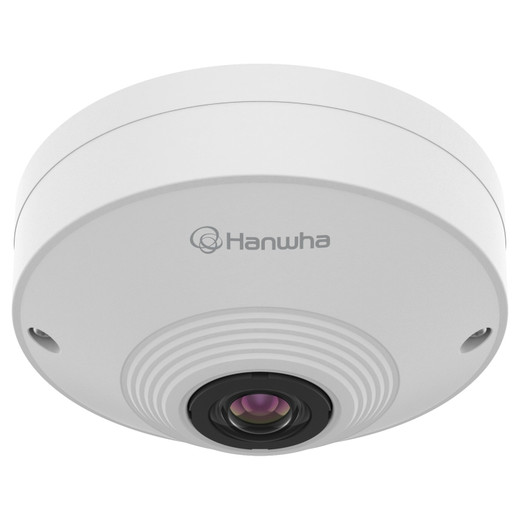

The Hanwha XNF-9010RS/KUS delivers comprehensive 360° panoramic coverage in a compact, ultra-durable stainless steel form factor designed for the most demanding surveillance environments.
With 12MP resolution and advanced Wide Dynamic Range (WDR) processing, this fisheye camera captures exceptional detail across scenes with extreme lighting contrasts. The integrated IR illumination at 850nm enables clear night vision performance in complete darkness, while H.265, H.264, and MJPEG codec support ensures flexible bandwidth optimization and broad system compatibility. A built-in microphone with selectable mic/line-in input provides audio capture capabilities for multimedia event documentation.
Built for harsh environments, the XNF-9010RS/KUS combines stainless steel (STS316L) construction with a nylon dome housing to deliver IP66 protection against water jets and dust ingress, complemented by IK10 impact resistance rated to withstand vandalism and mechanical shock. The rugged design meets NEMA 250 Type 4X standards and ISO 20653 IP6K9K specifications, making it ideal for corrosive, high-pressure wash, and coastal installations where standard cameras fail.
Powered by standard PoE (802.3af), the camera integrates seamlessly into any 10/100BASE-T Ethernet network without requiring dedicated electrical infrastructure. ONVIF compliance across Profiles G, T, and S ensures interoperability with thousands of third-party VMS and analytics platforms, while encrypted firmware and secure boot architecture protect against unauthorized access and firmware tampering.
Available in multiple color options including gray, mosaic, green, red, blue, white, and black, the XNF-9010RS/KUS adapts to diverse architectural and aesthetic requirements. With 4GB RAM and 512MB onboard storage, the camera supports advanced video processing and local event buffering for critical applications.
Deployment scenarios include transit hubs, parking facilities, manufacturing floors, food processing plants, chemical storage areas, and any location requiring 360° coverage with superior corrosion and impact resistance.
- 12MP fisheye resolution with WDR for high-contrast environments
- IP66 + IK10 rated stainless steel construction for harsh conditions
- IR night vision (850nm) with edge-based analytics capability
- PoE powered; ONVIF G/T/S compliant for open ecosystem integration
- H.265/H.264/MJPEG codec flexibility; 4GB RAM for processing
- Available in 7 color finishes for design flexibility
The XNF-9010RS/KUS is purpose-built for operators who need panoramic coverage in corrosive or high-impact environments. The STS316L stainless steel construction and IK10 rating eliminate the need for expensive protective enclosures, while the IP66 rating and NEMA 4X compliance make this a solid choice for washdown facilities, coastal installations, and chemical plants. Standard PoE power and ONVIF support keep integration costs low, and the 12MP resolution combined with WDR handles both detail capture and difficult lighting scenarios effectively.
