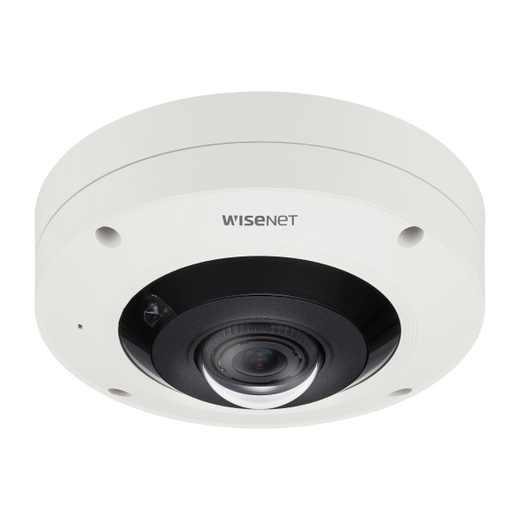

Hanwha XNF-9010RVM 12MP Outdoor Fisheye Network Camera

Hanwha XNF-9010RVM 12MP Outdoor Fisheye Network Camera

The Hanwha XNF-9010RVM is a premium 12-megapixel outdoor fisheye network camera engineered for comprehensive 360° surveillance coverage. Built on a 1/2.3" 12MP CMOS sensor with a 1.08mm fixed focal length, this camera delivers exceptional image clarity with minimal distortion across its expansive 187° horizontal, vertical, and diagonal field of view. Its ability to operate at up to 30fps in H.265/H.264 codec at full 3008×3008 resolution ensures smooth, bandwidth-efficient video streaming without compromising detail.

Key Features

• 12MP 1/2.3" CMOS imaging sensor with 3008×3008 original resolution
• 187° horizontal, vertical, and diagonal field of view for complete area coverage
• Multiple viewing modes: original fisheye, single/double panorama, quad view, and quadrant modes
• 10-meter IR illumination with Wise IR technology for zero-light operation
• Extreme Wide Dynamic Range (120dB) with HLC, BLC, WDR, and SSDR for challenging lighting
• H.265/H.264/MJPEG video compression with WiseStream II smart codec
• On-board dewarping and digital PTZ with preset and group support
• IP66, IK10, NEMA 4X, and EN50155 class T3 certifications for mobile and outdoor resilience

Advanced Analytics and Intelligence

The XNF-9010RVM incorporates sophisticated built-in analytics including motion detection, defocus and tampering detection, directional detection, virtual line crossing, appear/disappear, enter/exit, and loitering detection. Business intelligence features encompass people counting, queue management, and heatmap generation—ideal for retail, transportation, and public safety applications. Audio capabilities include selectable microphone input, line-in, and built-in microphone support with G.711 and G.726 compression formats.

Connectivity and Security

The camera features a metal-shielded M12 connector for industrial-grade Ethernet connectivity and supports dual micro SD/SDHC/SDXC card slots with up to 1TB edge storage capacity. Network security is reinforced through HTTPS/SSL, 802.1X authentication, digest login, IP filtering, and device certificates. Full ONVIF Profile S/G/T compatibility ensures seamless integration with third-party VMS platforms. Alarm triggering supports analytics events, network disconnect detection, and multiple alarm output actions including file upload, email notification, and PTZ preset handover.

Durability and Environmental Performance

Engineered for harsh outdoor conditions, the XNF-9010RVM operates reliably across -40°C to +60°C temperature ranges with less than 95% relative humidity tolerance. Its aluminum housing with hard-coated dome, combined with IP66 dust/water protection and IK10 impact resistance, ensures long-term durability in mobile, railway, and demanding industrial environments. PoE and 12VDC power options provide flexible deployment, with typical power consumption of 11W on PoE and 9.1W on 12VDC.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNF-9010RVM stands out for its exceptional combination of 12MP resolution, 360° coverage, and mobile-rated durability. The extreme WDR (120dB) paired with Wise IR technology delivers exceptional low-light performance—a critical advantage in 24/7 outdoor deployments. Dual panorama and quad view modes provide flexibility for different operational needs without requiring multiple cameras.

The EN50155 and NFPA130 certifications specifically target railway and transit applications where equipment reliability is non-negotiable. Integration of business intelligence analytics—people counting and heatmaps—elevates this beyond basic motion detection, enabling data-driven facility management. The 4GB RAM and WiseStream II codec optimization ensure stable performance during high-bitrate streaming to multiple concurrent users.

For organizations requiring robust outdoor surveillance with embedded analytics, mobile certification, and extended environmental tolerance, this camera represents a premium investment with proven industrial-grade durability.

Available in White.
