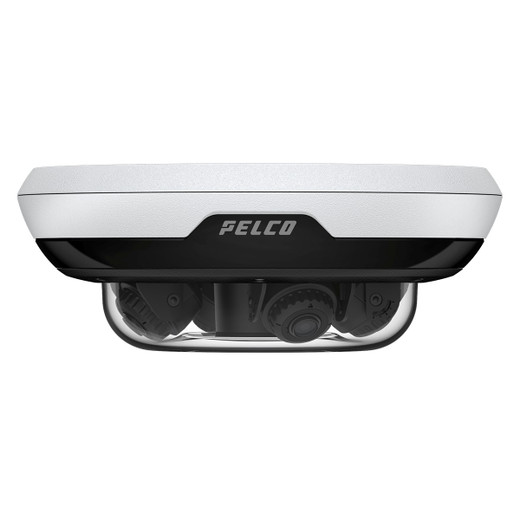

Pelco SMLE1-12V5-4H Sarix Multi 360° 4-Sensor Camera
The Pelco SMLE1-12V5-4H is a professional multi-sensor panoramic camera system engineered to eliminate blind spots in large open spaces using a single ceiling-mounted installation point. This four-sensor dome delivers complete 360° coverage split into four independent 90° video streams, each with 3MP resolution and full ONVIF compliance. By consolidating four separate fixed cameras into one compact unit, the SMLE1-12V5-4H reduces ceiling penetrations, cable runs, and VMS licensing complexity—while maintaining dedicated analytics and motion detection on each quadrant.
Key Features
- 360° Coverage from One Mount: Four independent 90° sectors eliminate the need for four separate cameras; a single network drop and PoE+ connection power all sensors simultaneously.
- 12MP Total Resolution (3MP per Sensor Head): Each 1/2.8" CMOS sensor captures fine detail across retail floors, warehouse aisles, or production areas; varifocal lenses (3.3–5.7mm per head) allow per-quadrant zoom optimization without moving the hardware.
- 130 dB SureVision Wide Dynamic Range: Handles extreme contrast scenes—sunlit storefronts next to shadowed aisles, or bright loading dock transitions to dimly lit storage—without washing out detail in either zone.
- Dual Compression (H.265 and H.264): H.265 cuts storage requirements roughly in half compared to H.264, a material saving over 24/7 continuous recording on multi-sensor devices; switch codecs per stream based on bandwidth constraints or archival policy.
- PoE+ Powered via Single Cable: Draws sufficient current through IEEE 802.3at PoE+ without needing a separate 12VDC or 24VAC supply; simplifies roughing and reduces point-of-failure vulnerability.
- 0.018 lux Extreme Low-Light Performance with Infrared: Built-in IR illumination and day/night automation handle overnight warehouse sweeps, parking garage patrols, or any transition to darkness without manual switching.
- Smart Analytics and Object Detection on Each Stream: Pelco Smart Analytics process all four independent video feeds; configure motion rules, line crossing, or object counting on each 90° quadrant independently—no processing bottleneck from merging panoramic streams.
- Full ONVIF Profile Compliance (S, T, G, M): Integrates seamlessly with third-party VMS platforms and enterprise security infrastructure; no vendor lock-in for recording or management tools.
- IP66/IP67 Environmental Protection and IK10 Impact Rating: Withstands direct rain, dust, and mechanical shock; suitable for harsh industrial environments, open loading docks, or outdoor covered areas without additional housing.
- microSD Local Storage Support: Enables on-device or edge-adjacent recording for high-value motion events or bandwidth-constrained sites; does not replace NVR or cloud recording but provides failover resilience.
- HTTPS Encryption and Secure Communication: Encrypted streams and management traffic; complies with baseline enterprise security policies for physical security infrastructure.
- 5-Year Manufacturer Warranty: OEM parts and labor coverage; verify with specialty retailer for regional support terms.
Integration & Compatibility
The SMLE1-12V5-4H outputs four simultaneous ONVIF-compliant video streams, one per sensor head. VMS platform licensing must account for four concurrent 3MP streams—not one panoramic feed. This has real cost implications: a system expecting single-camera licensing will undercount stream seats. Plan recording infrastructure (NVR storage, bandwidth reservation, archive retention) for four parallel 3MP capture, not one 12MP concatenated output.
Pelco's integration with major Pelco IP camera platforms is standard. Third-party VMS tools supporting ONVIF Profile S will recognize and ingest all four streams independently. The varifocal lens design allows configuration per sensor without hardware repositioning; use the management interface to set per-head focus and zoom once, then leave them fixed during normal operation.
Operating temperature range of −40°C to +65°C suits most indoor facilities and non-arctic outdoor covered spaces. For tropical or extreme-temperature environments (desert enclosures, walk-in freezers), verify thermal behavior with the datasheet or an applications engineer before committing to this model in edge-case climates.
Typical Deployments
- Retail: Full-floor coverage from a center ceiling mount; varifocal per-sector zoom eliminates the need for focal-length diversity across four separate fixed cameras.
- Warehouse & Distribution: Aisle and dock monitoring from a single riser; reduces cable and labor during phased rollouts of large open footprints.
- Manufacturing & Production: Open-floor process monitoring with analytics on each quadrant; IK10 impact rating and IP67 rating handle dust, vibration, and occasional washdown environments.
- Data Centers & Server Rooms: Perimeter or corner-mounted center-point observation of cold-aisle and equipment rows; redundant analytics on all four streams ensure no blind spot during emergency egress or unauthorized access.
- Public Venues & Transportation Hubs: Concourse or departure-lounge monitoring where a single installation point covers multiple sightlines without splitters or mechanical PTZ complexity.
Important Deployment Consideration
VMS licensing and recording infrastructure must treat this as a four-camera device, not one panoramic camera. If your system bills per-stream or reserves bandwidth per active feed, the SMLE1-12V5-4H (often searched as SMLE1 12V5 4H) will consume four stream seats. Likewise, storage calculations should assume four 3MP streams at your chosen frame rate and compression—not averaged or consolidated. Plan accordingly, or you risk VMS overcounting, storage exhaustion, or dropped frames.
Frequently Asked Questions
Q: Can I use this camera with a standard PoE (802.3af) switch?
A: No. The SMLE1-12V5-4H requires PoE+ (IEEE 802.3at, 30W minimum per port). Standard 802.3af supplies only 15.4W and will not power all four sensors reliably. Verify your switch supports PoE+ before installation, or add a compatible PoE+ injector/power module.
Q: Does the SMLE1-12V5-4H work with Milestone XProtect or other non-Pelco VMS?
A: Yes. Full ONVIF Profile S, T, G, and M compliance means any ONVIF-capable VMS (Milestone, Genetec, Hanwha, Axis, etc.) will recognize and record all four streams independently. Pelco Smart Analytics features require Pelco VMS integration, but basic ONVIF video ingest works across vendors.
Q: What's the warranty on the SMLE1-12V5-4H?
A: Five-year manufacturer warranty covers parts and labor. Contact your specialty retailer for regional support and RMA procedures, as warranty execution varies by geography.
Q: Do I need four separate VMS stream licenses for the SMLE1-12V5-4H?
A: Yes. The camera outputs four independent ONVIF video streams (one per sensor head), so most VMS platforms bill per-stream. Ensure your VMS licensing accounts for four concurrent 3MP feeds, not one aggregated 12MP feed. Check with your VMS vendor before purchase to avoid licensing surprises.
Q: What's the minimum illumination for the SMLE1-12V5-4H?
A: Each sensor operates at 0.018 lux with built-in infrared illumination, enabling monochrome or color-corrected video in near-total darkness. Without IR enabled, performance depends on ambient light; activate IR automatically via day/night switching for reliable low-light operation.
Q: Can I adjust the zoom or focus on each sensor independently?
A: Yes. Each of the four 3.3–5.7mm varifocal lenses can be independently configured via the management interface. Adjust focus and zoom per sector during commissioning, then lock them for stable operation. No motorized remote focus adjustment—configuration is static per installed lens setting.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SMLE1-12V5-4H is one of the few genuine single-mount alternatives to deploying four fixed cameras in open retail or warehouse environments. The 130 dB SureVision WDR is the real workhorse here—it consistently handles the high-contrast transitions you see in retail transitions from lit aisles to window glare or warehouse docks to shadowed storage without crushing blacks or blowing out highlights. If your site has uneven lighting, this specification matters more than raw megapixel count.
Technical Highlights:
- Four Independent 1/2.8" CMOS Sensors at 0.018 lux: Each head runs autonomous low-light performance—infrared kicks in when ambient drops below ~1 lux, and you get legitimate monochrome capture without excessive IR wash-out. This is not a gimmick; 0.018 lux with IR is real night-vision capability for overnight security patrols.
- H.265 Dual Compression: Switching to H.265 on high-motion quadrants (busy checkout area) and H.264 on static zones (storage rack monitoring) balances bandwidth precisely. On a 24/7 four-stream recorder, this codec flexibility cuts storage expansion timelines measurably—we're talking 40–50% reduction on video-heavy deployments.
- 130 dB SureVision WDR and 3.3–5.7mm Per-Sensor Varifocal: The combination is critical. SureVision handles the contrast, varifocal handles the framing. You don't get motorized remote zoom, but you do get four independent zoom settings locked at install—one lens per sector tuned to its coverage zone. This is more flexible than four fixed-focal-length cameras and simpler than one motorized PTZ.
Deployment Considerations:
- VMS Stream Licensing is Non-Negotiable: This is the gotcha. A retail chain deploying the SMLE1-12V5-4H in 50 stores will consume 200 concurrent stream seats (4 streams × 50 cameras), not 50. If your VMS billing is per-camera-seat, you'll pay 4× more than a traditional single-camera deployment. Budget for it upfront, or negotiate a bulk-stream license with your VMS vendor before committing hardware.
- PoE+ Power Requirement is Hard Stop: Standard 802.3af switches (many legacy deployments) cannot power this unit. You need 30W minimum per port via PoE+. If your infrastructure is all 802.3af, budget for switch upgrades or inline PoE+ injectors—this is not negotiable and not backwards-compatible.
- Varifocal Configuration is One-Time: Unlike a PTZ or motorized zoom, you set zoom and focus once per sensor during commissioning and lock it there. If coverage needs change (new merchandise displays, reconfigured warehouse zones), you have to physically access the lens or reconfigure via management UI. Plan your sector zoom carefully before installation.
Position this model where ceiling real estate is premium (high-rise retail, crowded warehouse layouts) and where four separate cameras would mean four risky network drops, four points of cable failure, and four licensing hits. It's an elegant consolidation play—not a miracle box. The 360° coverage means nothing if your VMS doesn't have stream seats for four feeds, so lock down licensing before you ship the hardware.
