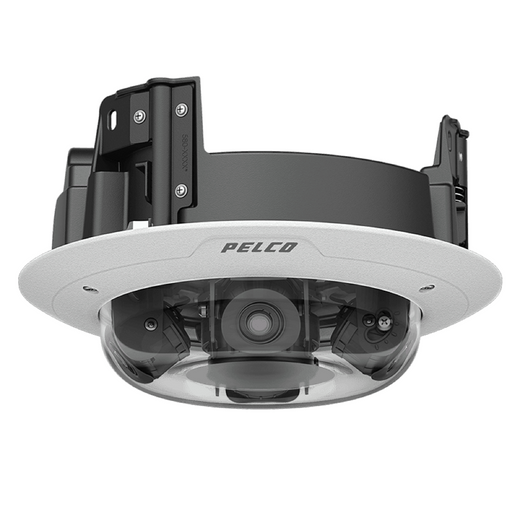

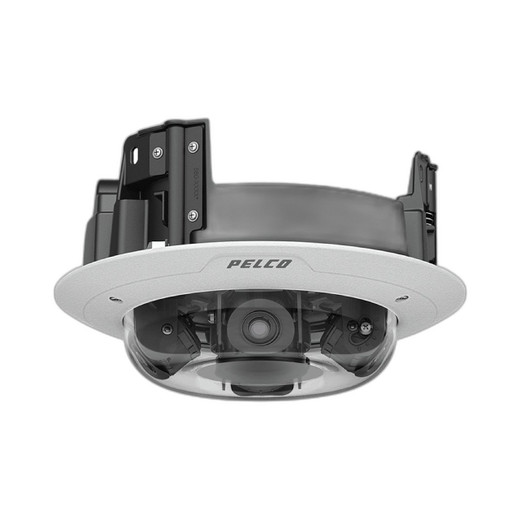

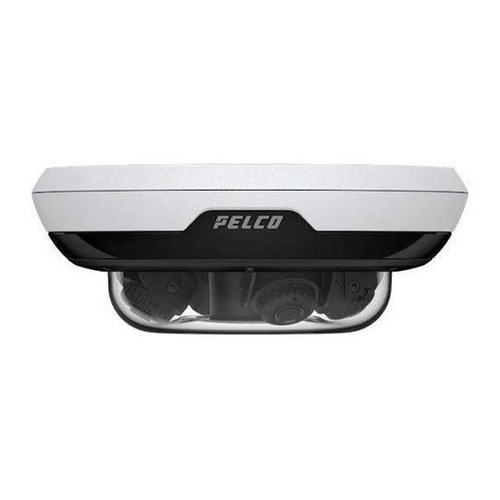

Pelco SMLE1-15V5-3H Sarix Multi Enhanced 3-Sensor 270° Panoramic Camera
The Pelco SMLE1-15V5-3H is a three-sensor panoramic camera from the Sarix Multi Enhanced 1 series designed to deliver 270° horizontal coverage—three independent 90° sectors—from a single installation point. Each of the three 5MP sensor heads produces a separate video stream with onboard Pelco Smart Analytics, totaling 15MP of simultaneous resolution. This modular three-head design is purpose-built for warehouses, large open-floor retail, parking structures, and industrial facilities where a single vantage point must cover most or all of a space without blind zones in critical directions.
Key Features
- 270° Panoramic Coverage (3 × 90°): One installation point replaces three separate single-sensor cameras—fewer mount points, fewer cable runs, simpler wiring topology. The 270° arc leaves one 90° sector unobserved; position the housing so that blind sector faces a wall or non-critical zone.
- 5MP per Sensor Head: Each head delivers 5MP video, yielding forensically-usable identification-grade detail for zoom and evidence review. Total 15MP resolution provides substantially higher per-sector detail than the 3MP-per-head SMLE1-9V5-3H variant in the same family.
- Three Independent Streams: Each sensor produces its own video stream; your VMS must license and process three concurrent 5MP feeds. Total bandwidth is equivalent to three simultaneous 5MP streams—a real factor in bandwidth-constrained networks. Each stream can be configured independently for frame rate, resolution, and analytics rules.
- H.265 & H.264 Compression: H.265 reduces storage and bandwidth requirements by roughly 40–60% compared to H.264 on the same scene complexity. Useful for 24/7 recording across multiple camera sectors. Fall back to H.264 if your NVR or VMS does not yet support H.265 decoding.
- PoE+ Power (802.3at): Powered entirely via a single PoE+ sourced Ethernet run—no separate 12VDC power supply required. Verify your PoE+ switch has sufficient per-port budget; the SMLE1-15V5-3H draws close to the PoE+ maximum.
- 130 dB SureVision Wide Dynamic Range (WDR): Handles scenes with extreme lighting contrast—backlit doorways, parking lots at dusk, loading docks with bright overhead lights and dark shadows. WDR preserves detail in both bright and dark areas simultaneously.
- ONVIF Compliance (Profile S, T, G, M): Full ONVIF Profile compliance ensures compatibility with third-party VMS platforms (Milestone XProtect, Genetec Security Center, etc.) as well as Pelco systems. Profile G and Profile M enable advanced metadata and analytics interoperability.
- 3.3–5.7mm Varifocal Lens per Head: Each sensor head includes its own varifocal lens, allowing independent zoom and focus adjustment per sector. Field-adjustable focal length lets you optimize coverage for different sector priorities without swapping hardware.
- IP66 & IP67 Environmental Ratings: IP66 means dust and rain jets won't degrade the housing; IP67 (if selected variant) allows brief submersion. Suitable for outdoor, semi-outdoor, and harsh indoor (wet/dusty) environments. Operating temperature range -40°C to +65°C covers most climates.
- IK10 Impact Rating: Resistant to deliberate physical tampering and accidental bumps—important in accessible areas like parking garages or retail floors where camera housings may be struck or tested by intruders.
- NDAA Section 889 Compliance: Meets U.S. government supply-chain security mandates. Required for federal, state, and regulated commercial contracts (healthcare, financial services).
Integration and Compatibility
The SMLE1-15V5-3H integrates with Pelco IP cameras and third-party ONVIF-compliant VMS platforms. Three simultaneous streams require corresponding VMS user licenses and NVR storage channels. Typical deployment pairs this unit with a network video recorder (NVR) capable of ingesting three 5MP H.265 streams at desired frame rates (8–30 fps per stream). Wired Ethernet connectivity via PoE+ eliminates wireless complications. Smart Analytics metadata (motion, object classification, zone events) flows to VMS rule engines for alerting and automation.
For full 360° coverage without any blind sector, upgrade to a four-sensor SMLE1 variant. For bandwidth-constrained or lower-priority zones, the three-head SMLE1-9V5-3H (3MP per head, 9MP total) covers the same 270° arc at reduced bitrate and storage overhead.
Frequently Asked Questions
Q: Does the SMLE1-15V5-3H support integration with Milestone XProtect or Genetec Security Center?
A: Yes. Full ONVIF Profile S, T, G, and M compliance ensures seamless integration with third-party VMS platforms including Milestone and Genetec, as well as native Pelco systems.
Q: What is the warranty on the SMLE1-15V5-3H?
A: Pelco backs the SMLE1-15V5-3H with a 5-year warranty supported by Pelco's global service network and specialty distributor channels. Enterprise customers receive priority technical support and streamlined RMA processes.
Q: Can I use standard PoE (802.3af) or do I need PoE+?
A: You must use PoE+ (802.3at) or higher. The three-sensor head configuration draws power close to the PoE+ maximum; standard 802.3af will not suffice. Verify your switch provides sufficient per-port wattage.
Q: Does the SMLE1-15V5-3H record three separate video files, or one combined stream?
A: Three independent streams—one per sensor head. Your VMS ingests and records three concurrent 5MP feeds. Each stream can have independent resolution, frame rate, and analytics configuration.
Q: Is the SMLE1-15V5-3H suitable for outdoor use?
A: Yes. IP66 and IP67 environmental ratings and -40°C to +65°C operating temperature support outdoor and semi-outdoor deployment. Mounting orientation should position the 90° blind sector away from critical coverage zones.
Q: What is the difference between the SMLE1-15V5-3H and the SMLE1-9V5-3H?
A: Both deliver 270° coverage from three sensors. The -15V5- model has 5MP per head (15MP total); the -9V5- has 3MP per head (9MP total). The 15MP variant provides higher identification-grade detail per sector and scales to larger coverage areas; the 9MP variant uses less bandwidth and storage for lower-priority or bandwidth-limited installations.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Pelco SMLE1-15V5-3H (often searched as SMLE1 15V5 3H) is a purpose-built three-head panoramic camera that solves a real problem: replacing three separate single-sensor installations with one. Three independent 5MP streams totaling 15MP means you get identification-grade detail across 270° from a single mount point, single cable run, and single power feed. The tradeoff is real—you're ingesting three simultaneous streams into your VMS, which requires three licenses and three NVR channels.
Technical Highlights:
- H.265 Compression: Cuts storage and bandwidth consumption 40–60% versus H.264 on identical scene complexity. Meaningful when you're managing three concurrent 5MP streams 24/7—your NVR and network will notice.
- 130 dB SureVision WDR: Handles extreme lighting swings—think loading dock with bright overhead lights, deep shadows, and a backlit entrance door all in frame. Preserves usable detail in both extremes without tone-mapping artifacts.
- PoE+ Requirement: Draws near the PoE+ maximum. Standard 802.3af is insufficient. Audit your switch capacity before deploying—one under-provisioned port kills the entire unit.
- Three Independent Varifocal Lenses (3.3–5.7mm): Each head adjusts independently. You can optimize one sector for vehicle license plates, another for pedestrian face recognition, and a third for general perimeter awareness without hardware swaps.
- IK10 Impact Rating: Resists deliberate tampering and accidental collision—critical in accessible areas where intruders or facility users may target cameras.
Deployment Considerations:
- Blind Sector Positioning: The 270° arc leaves one 90° sector unobserved. Orientation matters. Mount it so the blind sector faces a wall, stairwell, or non-critical zone. Blind spot pointing at your main entrance is a deployment failure.
- VMS Licensing and Storage: Three 5MP streams at 15 fps (typical) consume roughly 3.5 Mbps per stream, or ~10.5 Mbps total. At H.265 with motion-adaptive frame rate, expect 15–25 TB per year per SMLE1-15V5-3H unit for 24/7 retention. Plan NVR capacity accordingly, and confirm your VMS has three simultaneous stream licenses available.
- ONVIF Profile Completeness: Profiles S, T, G, and M support nearly all major VMS platforms, but verify your specific platform version and profile support before committing to procurement.
The SMLE1-15V5-3H is ideal for large-floor retail, warehouse pick/pack areas, parking structure entry points, and industrial facilities where one vantage point can cover most or all of the critical zone. It is not a cost-saving replacement for three cheap cameras—you're paying for integration simplicity, intelligent 5MP detail across sectors, and ONVIF interoperability. Bandwidth and licensing are the real constraints; if your network or VMS cannot handle three concurrent 5MP streams, drop to the SMLE1-9V5-3H (3MP per head) and accept lower zoom-in forensic quality per sector.
