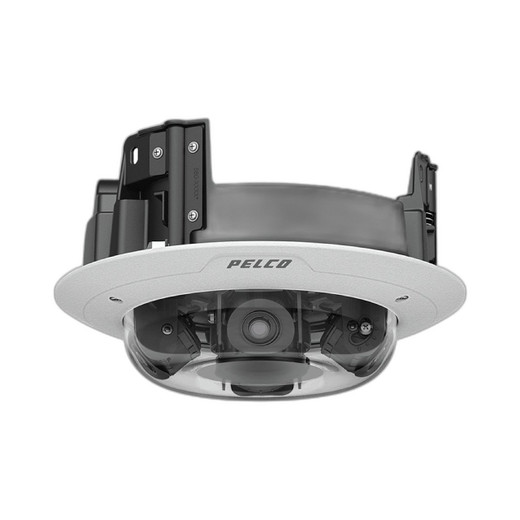

Pelco SMLE1-9V5-3H Sarix Multi Enhanced 3-Sensor 270° Panoramic Camera
The Pelco SMLE1-9V5-3H is a three-sensor panoramic camera engineered to replace three fixed cameras at building corners, T-junctions, and wide-arc coverage zones. It delivers 270° of continuous coverage (three 90° sectors) from a single installation point and one network drop. Total output is 9 MP—three independent 3 MP streams, each with Pelco Smart Analytics, compressed via H.265 to cut storage overhead roughly in half compared to H.264 encoding.
Key Features
- 270° Coverage, Three Sensor Heads: Three independent 3 MP sensors eliminate blind spots across wide-arc zones. Position the uncovered 90° sector toward a wall or non-critical area. VMS licensing must account for three simultaneous video streams from the single camera body.
- 9 MP Total Output with H.265 Compression: H.265 encoding reduces stored bitrate by 40–60% versus H.264 on equivalent scenes—meaningful when centralizing 24/7 recording across dozens of multi-sensor installations. Standard H.264 also supported.
- 3.3–5.7 mm Varifocal Lens per Head: Each sensor adjusts focal length in-field without lens replacement, allowing fine-tuning of coverage depth and zoom ratio per sector without additional hardware swaps.
- PoE+ Powering: Single PoE+ (802.3at) feed powers all three heads and analytics processing. Verify switch capacity—three concurrent streams plus motor/analytics processing may approach 25 W under load depending on scene complexity.
- IP66 and IP67 Environmental Ratings: IP66 withstands direct rain and dust without ingress. IP67 rating on some configurations adds brief submersion tolerance (check mount location specifics). Operating range spans −40 °C to +65 °C, covering indoor climate-controlled to unheated outdoor enclosures.
- 130 dB SureVision Wide Dynamic Range: High WDR capability suppresses backlight washout—critical when mounting against windows or in mixed indoor/outdoor transition zones where two or more sensor heads see vastly different lighting conditions simultaneously.
- ONVIF Profile S, T, G, M: Multi-profile compliance ensures VMS integration across Milestone XProtect, Genetec, and Pelco's own VideoXpert without custom drivers. Profile G adds metadata; Profile M handles mobile client transcoding.
- IK10 Impact Rating: Extremely robust construction resists vandalism and accidental impact—useful in warehouses, loading docks, and retail environments where bumps from equipment are routine.
Integration & Compatibility
The SMLE1-9V5-3H integrates seamlessly with enterprise network video recorders and Pelco surveillance platforms. NDAA Section 889 compliant for government and regulated procurement workflows. Five-year warranty supported through authorized channels.
Bandwidth planning: three concurrent 3 MP streams at H.265 typically consume 8–15 Mbps aggregate depending on motion and scene detail. Confirm PoE switch capacity and network uplink before deployment, especially in multi-camera consolidation scenarios.
For deployment contexts requiring higher per-sector resolution, the SMLE1-15V5-3H variant upgrades each head to 5 MP (15 MP total output). For full 360° coverage, the SMLE1-12V5-4H adds a fourth sensor head.
When to Choose a Different Model
If your mounting location can accommodate a full 360° view and four-way visibility is critical, evaluate the four-head panoramic variant in the same family. If per-sector detail resolution (faces, license plates) is higher priority than wide-arc coverage, a set of individual fixed 5 MP or 8 MP cameras with narrower lenses may deliver better focal-length efficiency, though at the cost of additional wiring and mounting points.
Frequently Asked Questions
Q: Does the SMLE1-9V5-3H work with Milestone XProtect?
A: Yes. ONVIF Profile S and T compliance ensures integration with Milestone. Three simultaneous streams appear as a single multi-sensor device or three separate logical cameras depending on VMS configuration. Confirm your Milestone version supports multi-sensor ONVIF devices in your licensing tier.
Q: What is the 270° blind spot limitation?
A: The camera covers three 90° sectors only, leaving one 90° sector unobserved. Position the unmonitored quadrant toward a wall, ceiling corner, or non-critical zone during installation. This is a physical constraint, not a fault.
Q: Is the SMLE1-9V5-3H NDAA Section 889 compliant?
A: Yes. This model is NDAA compliant for government and regulated agency procurement.
Q: What is the warranty term?
A: Five-year manufacturer warranty. Support and RMA processing through specialty reseller partners.
Q: How much network bandwidth does the SMLE1-9V5-3H consume?
A: H.265 compressed streams typically 8–15 Mbps aggregate for three concurrent 3 MP sensors, depending on motion and scene complexity. H.264 will consume roughly double. Test your specific scene in a staging environment before large-scale deployment.
Q: Can I adjust the focal length per sensor head?
A: Yes. Each head carries a 3.3–5.7 mm varifocal lens—adjustable in-field without replacing the lens assembly, allowing you to fine-tune sector coverage depth independently.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SMLE1-9V5-3H (often searched as SMLE1 9V5 3H) solves a real integration headache: replacing three corner-mounted fixed cameras with one device, one cable, and one mounting point. The three independent 3 MP sensor streams and H.265 compression are the key differentiators—you're not sacrificing resolution or analytics, just eliminating redundant infrastructure.
Technical Highlights:
- H.265 Compression Efficiency: Expected 40–60% bitrate reduction versus H.264 on typical retail or warehouse scenes. On a 24/7 multi-camera recorder with 20+ SMLE1 devices, that compounds into meaningful storage savings and lower NVR CPU load for motion detection and analytics playback.
- 130 dB SureVision WDR: Exceptional—handles the common panoramic gotcha: one head facing a bright window while another views a darker interior hallway. Without aggressive WDR, the sunny sector bleaches out and analytics fail. This rating keeps all three sectors usable simultaneously.
- 3.3–5.7 mm Varifocal per Head: Flexibility to zoom each sector independently means you can optimize sector 1 for hallway detail, sector 2 for wide lobby coverage, and sector 3 for entry-point facial recognition—without lens changes or optics waste.
- ONVIF Multi-Profile Support: Profile G metadata and Profile M mobile transcoding are often overlooked but critical for mid-to-large deployments running Milestone or VideoXpert with mobile client access and alarm analytics tunneling.
Deployment Considerations:
- VMS Licensing Gotcha: Three streams from one camera body. Some VMS licensing models charge per-stream, not per-device. Confirm your Milestone or Genetec contract covers three simultaneous streams before purchase. Cheaper to clarify now than redeploy.
- The 270° Blind Spot Is Non-Negotiable: You cannot software-stitch or rotate a fourth virtual view. If your deployment truly needs 360° with zero gaps—warehouse perimeter, high-security doorway—step up to the four-head SMLE1-12V5-4H variant or stay with three fixed cameras on a different plane.
- Bandwidth Planning for PoE+: H.265 keeps per-stream bitrate modest, but three concurrent streams plus analytics processing can approach the upper end of a 25 W budget on high-motion scenes. Old or budget PoE+ switches rated for only 15 W per port will struggle. Test with a real NVR and target motion content before committing 20 units.
Ideal fit: retail T-junction corridors, warehouse loading-dock corners, and parking structure entry ramps where one panoramic camera eliminates messy three-camera angles and cabling runs. Less ideal for sites needing per-head zoom independence or true omnidirectional monitoring—those still want discrete fixed or PTZ units positioned separately.
