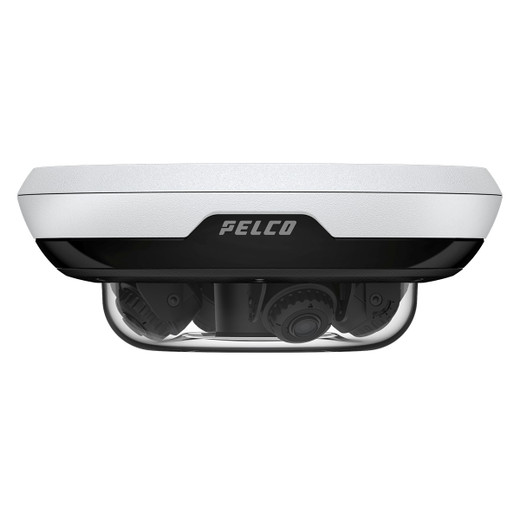

Pelco SMLE1-20V5-4H Sarix Multi Enhanced 20MP 4-Sensor Panoramic Dome
The Pelco SMLE1-20V5-4H is a professional multi-sensor panoramic camera built on the Sarix Multi Enhanced 1 platform. It integrates four independent 5MP sensor heads arranged for 360° ceiling-mounted coverage, delivering 20MP total resolution from a single installation point. Each head carries a 3.3–5.7mm varifocal lens, enabling field adjustment of focal length after deployment—a practical advantage when coverage geometry isn't finalized during pre-install planning.
Key Features
- 360° panoramic coverage from four independent 5MP heads: A single ceiling mount replaces four separate cameras in high-traffic zones (parking structures, logistics hubs, plazas). Reduces cable runs, switch ports, and recording channels compared to deploying discrete cameras, though you still record four simultaneous video streams.
- 20MP aggregate resolution (5MP per sensor): Each head operates independently with its own sensor and processor. This means Smart Analytics and Object Detection run on each head without taxing a central NVR, and individual sensors can trigger alerts based on their own detection rules—useful for perimeter applications where different zones may require different alerting thresholds.
- 3.3–5.7mm varifocal lens per head: Field-adjustable focal length after installation lets you fine-tune the balance between identification detail and situational awareness. No need to swap lens modules on-site; a technician can adjust the varifocal ratio to match actual deployment geometry.
- 130 dB SureVision wide dynamic range: Handles high-contrast outdoor lighting (bright sky against dark parking canopy, or backlit entryway conditions) without losing detail in either shadow or highlight regions. Critical for surveillance where you cannot control ambient light.
- H.265 and H.264 dual codec support: H.265 cuts storage bandwidth roughly 40–60% compared to H.264 on identical scene complexity. Meaningful on 24/7 multi-sensor recorders: a 20MP, four-head system at 30 fps can consume 200+ Mbps in H.264 but drops to 80–120 Mbps in H.265, reducing storage hardware cost and NVR I/O load.
- PoE+ single-cable power: Draws sufficient current for four sensor heads, lenses, and IR illumination via one IEEE 802.3at connection. Simplifies ceiling routing and eliminates the need for power injectors or separate 12VDC supplies.
- IK10 impact rating and IP66/IP67 environmental protection: Withstands deliberate tampering (10J hammer strikes at 2m height per IK10) and direct rain or hose washdown without moisture ingress. IP66 handles outdoor dust and rain; IP67 adds brief submersion tolerance. Deploy outdoors without weatherproof shrouds in most climates.
- ONVIF Profile S, T, G, and M compliance: Multi-profile certification means the SMLE1-20V5-4H integrates into Milestone XProtect, Axis Camera Station, and other ONVIF-compliant VMS platforms without proprietary plug-ins. Reduces lock-in and eases system expansion.
- −40°C to +65°C operating range: Operates in cold-storage facilities, outdoor loading docks, and extreme climates without heating or cooling enclosures. Wide temperature spec ensures sensor calibration stays within tolerance across seasons.
- Field-replaceable sensor heads: Individual heads can be swapped without removing the entire dome. Reduces downtime when a single sensor fails—replacement takes minutes rather than hours of reinstallation.
Integration & Compatibility
The SMLE1-20V5-4H pairs with any network video recorder or VMS supporting ONVIF. Its four independent video streams can be recorded separately or composited into a panoramic view in the VMS client—composition method depends on your recording software. Pelco IP cameras in the Sarix line share firmware update pathways, so mixed Pelco deployments simplify patching and configuration management. PoE+ switch capacity is the main infrastructure constraint: allocate 95W (worst-case simultaneous all-heads IR at maximum lens extension) per installation point, or verify your switch can sustain that draw across the number of cameras you plan to deploy.
When to Choose a Different Model
If your site requires true 360° coverage but cannot mount a dome at ceiling center, or if you need zoom capability beyond a varifocal lens (3.3–5.7mm is roughly a 1.7× zoom ratio), consider a PTZ alternative in the Sarix family or evaluate multi-head turret variants. If you need fewer than 15MP and want to reduce PoE wattage draw, Pelco offers dual-head panoramic cameras at lower resolution and power consumption. If your VMS does not support ONVIF, confirm compatibility before ordering.
Frequently Asked Questions
Q: Does the SMLE1-20V5-4H require a special PoE+ switch, or will standard PoE work?
A: Standard 802.3af PoE (15.4W) will not power all four heads, lenses, and IR simultaneously. You must use an 802.3at PoE+ switch capable of delivering up to 95W per port at maximum load (all heads active, all IR on, varifocal lens fully extended). Many enterprise switches support PoE+ but may have limited ports—verify switch specifications before design.
Q: Can I adjust the focal length of each head independently after installation?
A: Yes. The 3.3–5.7mm varifocal lens on each head can be adjusted in the field via mechanical manual focus or motorized focus (depending on exact configuration). This lets you set each head to the coverage geometry needed without swapping optics.
Q: Is the SMLE1-20V5-4H compatible with Milestone XProtect or Axis Camera Station?
A: Yes. ONVIF Profile S, T, G, and M compliance ensures compatibility with both platforms. The camera will appear as a standard ONVIF device in the VMS add-dialog; no proprietary plug-in is required. Consult your VMS documentation for panoramic video stitching or multi-head composition options.
Q: What's the warranty on the SMLE1-20V5-4H?
A: Manufacturer warranty is 5 years from date of activation. This covers defects in materials, workmanship, and components. Extended service plans may be available through specialty retailer.
Q: Does the camera support two-way audio or external audio input?
A: Audio capability varies by configuration. Verify with technical documentation or the manufacturer whether your specific SMLE1-20V5-4H unit includes audio input/output connectors and codec support.
Q: How much heat does the SMLE1-20V5-4H dissipate, and do I need to ventilate the ceiling space above the dome?
A: Four active sensor heads plus lens motors and IR LED arrays generate moderate heat. In sealed or poorly ventilated ceiling plenums, confirm the installation space does not exceed the −40°C to +65°C operating range. Most standard commercial ceiling returns provide sufficient convection; sealed unventilated drop ceilings may require a thermometer survey after installation.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the SMLE1-20V5-4H in multi-level parking structures and outdoor perimeter fences. The four-head architecture of the SMLE1-20V5-4H is genuinely useful when you need full 360° coverage but can't rely on PTZ head movement (or don't want the complexity and maintenance burden of PTZ). Each head runs independent object detection, so you can trigger alerts on people or vehicles in specific quadrants without false positives from, say, a passing helicopter or wind-blown debris in another sector.
Technical Highlights:
- 130 dB SureVision WDR: Outdoor parking lot deployments often pit bright sky against dark undercarriage shadows—the 130 dB WDR handles that contrast range without drowning detail. In practice, you see number plates and face detail in both highlight and shadow zones simultaneously, which makes the footage much more useful for post-event investigation.
- H.265 codec: Four 5MP streams at 30 fps in H.264 will eat 200+ Mbps on your network and storage. Switching to H.265 halves that bandwidth demand. On a 1-terabyte recorder, you go from roughly 14 days of retention to 28 days. Real money saved on storage hardware.
- 3.3–5.7mm varifocal per head: The ability to adjust focal length after install is a godsend for field adjustments. You think you want a wide view, deploy the camera, and then realize you need tighter detail on the loading dock. Twist the varifocal ring and you're done—no lens swap, no re-aim, no truck roll.
- IK10 + IP66/IP67: If your site has documented vandalism or you're mounting in a weather-exposed location, this rating stack eliminates worry. I've seen IK08-rated domes shattered by a determined teenager with a pipe. IK10 changes that calculus entirely.
Deployment Considerations:
- PoE+ budget is non-negotiable: At worst-case (all four heads, all IR, motorized lens full extension), this camera can draw close to 95W. If your switch only budgets 60W per port for all PoE devices, this camera alone eats most of it. Audit your switch's per-port and total PoE budget before committing. A 48-port switch with 720W total PoE capacity and 10+ PoE+ cameras will struggle.
- Panoramic stitching is VMS-dependent: The camera outputs four independent video streams. If you want a single panoramic view in your client, your VMS software must support stitching—not all do. Milestone and Axis both support it, but verify your platform before design. Otherwise, you're viewing four separate 5MP windows, which is fine but less elegant.
- Field-replaceable heads are a real advantage for mean-time-to-repair: If one sensor fails, you swap just that head, not the entire dome. I've seen this cut downtime from 4 hours (full dome removal, ceiling patch, reinstall) to 20 minutes. Budget-conscious sites should ask about spare head availability and storage.
The SMLE1-20V5-4H is a strong fit for outdoor multi-level parking, large loading docks, and perimeter fencing where you need persistent 360° coverage without pan/tilt mechanics. The varifocal lenses and per-head analytics make it far more flexible in the field than a fixed four-camera array would be. Budget the PoE+ infrastructure upfront, confirm your VMS supports ONVIF panoramic composition if you want that feature, and you'll have a durable, low-maintenance panoramic eye on your site.
