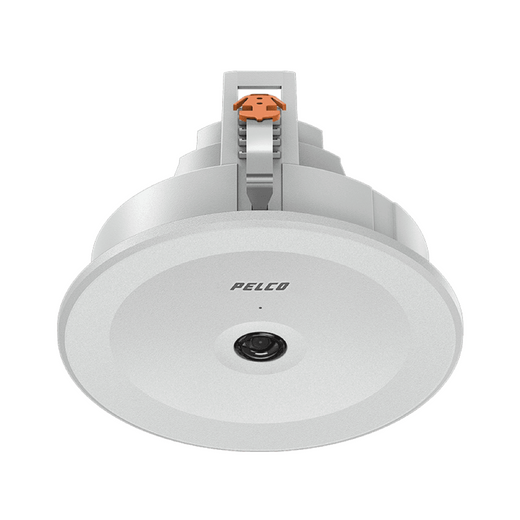

Pelco IMF82-1I Sarix Fisheye 3 8MP 360° Indoor Camera
The Pelco IMF82-1I is an 8MP fisheye camera built to replace multiple fixed cameras with a single ceiling-mounted unit. Part of the Sarix Fisheye 3 series, this design eliminates blind spots in open areas—lobbies, retail floors, warehouses, and open-plan offices—by delivering continuous 360° panoramic coverage. The camera captures the full field at 3264 × 2448 resolution, meaning you get complete area awareness without angular gaps.
Key Features
- 8MP 360° Fisheye Lens (2.7mm f/2.5): Captures the entire scene from one ceiling position. Replaces 3–5 conventional fixed cameras, reducing installation points, network complexity, and overall system cost. The 180° fisheye angle means no setup-time wasted on pan/tilt calibration—it's already looking everywhere.
- 12.5 fps at Full Resolution: Adequate for area surveillance and behavior analysis in retail, lobby, and warehouse environments. Not intended for high-speed motion capture; if you need 30 fps across multiple angles, this isn't the model.
- Pelco Smart Analytics with 8 Integrated Behaviors: Detects object movement, loitering, line crossing (beam crossing), and crowd buildup—all processed on the camera itself. Reduces NVR load and false-alarm overhead compared to server-side analytics. Useful for drift detection and unauthorized zone entry.
- H.264 Video Compression: Proven, widely compatible codec. Requires roughly double the storage versus H.265, but ensures compatibility with any ONVIF-capable VMS or legacy recorder without transcoding overhead.
- PoE+ Power (802.3at): Draws under 13W typical, so standard PoE+ switches handle it without power-budget strain. Single Ethernet cable eliminates separate 12VDC runs—less conduit clutter and faster deployment in retrofit scenarios.
- 0.10 lux Low-Light Performance with WDR: Handles day-into-dusk transitions and mixed-lighting retail floors. Wide Dynamic Range smooths bright skylights against dark shelving. Not a night-vision camera—no integrated IR. Requires ambient light or supplemental IR panels if 24/7 operation is needed.
- IP52 Ingress Protection & IK10 Impact Rating: IP52 keeps dust and light splash away; adequate for indoor climate-controlled spaces, but skip this if washdown or direct spray is expected—those need IP66 or higher. IK10 means it handles bumps and accidental impacts from warehouse equipment or rough handling during installation.
- MicroSD Local Storage: Records directly to onboard microSD card (capacity not specified in evidence), providing offline failover if the network drops. Useful for high-security scenarios where you cannot afford to lose footage during connectivity issues.
- ONVIF Profile S & T Compliance: Integrates with Milestone XProtect, Genetec, Axis Camera Station, and other ONVIF-compliant systems. No proprietary VMS lock-in—you can swap platforms without replacing hardware.
- HTTPS & Encryption: Secure transmission protects credentials and video streams from casual eavesdropping. Standard practice, but worth confirming on any network camera before deployment.
- Operating Range −10°C to +60°C: Handles unheated warehouses and sun-exposed ceiling cavities without performance degradation. Outside that window (freezers, outdoor installations), this camera is not rated.
Integration & Compatibility
The IMF82-1I connects via standard Ethernet and draws power from PoE+ infrastructure. Its ONVIF Profile S and T support means it works with any modern VMS—Milestone, Genetec, Axis Camera Station, or vendor-agnostic open systems. De-warping tools in compatible platforms let you extract rectilinear, virtual PTZ, and multi-pane views from the raw fisheye stream, turning one physical camera into multiple virtual angles for operator convenience.
When to Choose a Different Model
If you need true 24/7 night vision without ambient light, this camera's lack of integrated IR makes it unsuitable—consider an outdoor-rated Pelco fisheye with active IR. If the space requires greater than IP52 protection (washdown, moisture-heavy environments), step up to an IP66-rated variant. If you need per-pixel facial detail or license-plate legibility, 8MP fisheye resolution doesn't scale; a dedicated 4–8MP fixed bullet or box camera with appropriate lens will outperform. If your NVR or VMS predates 2015 or lacks ONVIF support, verify firmware compatibility before ordering.
Frequently Asked Questions
Q: Does the Pelco IMF82-1I require a separate power supply?
A: No. The IMF82-1I draws PoE+ power via standard Ethernet. Any PoE+ switch (802.3at or 802.3bt) supplies the ~13W it needs. No separate 12VDC supply required.
Q: Can I use this camera outdoors?
A: No. The IMF82-1I is rated IP52 and lacks integrated IR, making it unsuitable for outdoor exposure, rain, or nighttime. Pelco offers outdoor-rated fisheye variants in the Sarix Fisheye line if you need panoramic outdoor coverage.
Q: What video management systems work with the IMF82-1I?
A: Any VMS supporting ONVIF Profile S or Profile T—Milestone XProtect, Genetec, Axis Camera Station, and others. ONVIF compliance ensures broad ecosystem support without vendor lock-in.
Q: Does the camera have infrared night vision?
A: No. The IMF82-1I has no integrated IR illumination. It requires ambient light (natural or supplemental lighting) to perform. If 24/7 coverage in dark areas is essential, you'll need external IR panels or a different model with onboard IR.
Q: How much storage does the microSD card support?
A: The specification indicates microSD support, but maximum capacity is not listed in available documentation. Check the full datasheet or contact the manufacturer for microSD capacity limits.
Q: Is the IMF82-1I NDAA Section 889 compliant?
A: Compliance information is not present in the available specification evidence. Verify directly with Pelco if NDAA compliance is a procurement requirement.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The IMF82-1I trades per-pixel sharpness for coverage density. At 8MP across a 360° field, you're distributing resolution across a much larger angular range than a conventional 4MP bullet camera. That matters: facial recognition and license-plate capture don't happen at this zoom level. What does happen is reliable area presence—loitering detection, crowd buildup alerts, line-crossing triggers—all processed locally on the camera via Pelco Smart Analytics. The 0.10 lux low-light ceiling means it handles retail lighting and lobby fluorescents without complaint, but it needs light. No IR means no dark warehouse 24/7 capability.
Technical Highlights:
- 12.5 fps at 8MP: Frame rate is video-quality sufficient for motion detection and analytics, but not high-action sports or vehicle tracking. At full 3264 × 2448 resolution, you're trading frame-rate fluidity for resolution density—a reasonable tradeoff for stationary area surveillance.
- H.264 + 8 Integrated Analytics Behaviors: On-camera processing means the NVR doesn't waste CPU on fisheye stream analysis. Loitering, beam crossing, object detection, and crowd detection run at the edge, reducing bandwidth consumption and alert latency compared to cloud-based or server-side systems.
- PoE+ at ~13W: Minimal power footprint means you can daisy-chain these across a single PoE+ switch without capacity planning overhead. A Cisco or Arista PoE+ stack can handle 8–12 of these without exhausting power budget.
- IP52 + IK10: Indoor-rated protection stops dust ingress and light moisture, and IK10 means warehouse bumps from pallet jacks or forklift vibration won't crack the dome. Don't mount this in a car wash or humid plant floor without supplemental dehumidification.
Deployment Considerations:
- No IR Fallback: This is the gotcha. If the space has unpredictable lighting—loading docks at dusk, intermittent skylights, outdoor-adjacent openings—you'll either need supplemental fixtures or accept blind hours. Budget for lighting infrastructure if you're replacing an IR-capable camera.
- De-Warping Workload: Virtual PTZ and multi-pane extraction happen in the VMS or client, not on the camera. That shifts CPU load to the recorder and workstation. On large multi-camera deployments, rendering real-time de-warping views for 6+ fisheye cameras can bog down aging NVR hardware.
- Ceiling-Only Mounting: This is designed for center-ceiling deployment in open spaces. Corner mounts or wall-facing angles waste the 360° advantage. Plan your camera layout around that constraint.
Deploy the IMF82-1I in climate-controlled retail floors, indoor lobbies, warehouses with adequate overhead lighting, and open-plan offices where you need to cover 1000+ square feet from a single point without angular blind spots. It's not a night-vision camera and not a detail-capture camera—it's a cost-efficient area-awareness platform.
