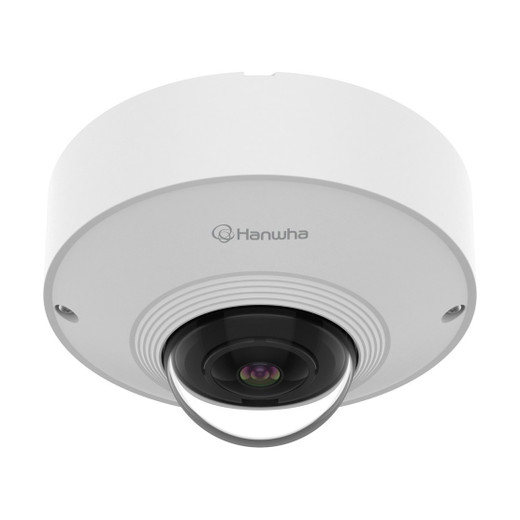

Hanwha QNF-C9010V 12MP Outdoor AI Fisheye Camera
The Hanwha QNF-C9010V is a purpose-built outdoor fisheye camera that delivers complete 185° panoramic coverage from a single mounting point. Built around a 12-megapixel sensor with a fixed 1.76 mm focal length and F1.8 aperture, this camera captures 3008 × 3008 resolution at 20 fps—genuine forensic-grade detail, not interpolated upsampling—making it suitable for facial recognition, vehicle plate identification, and incident reconstruction across large exterior areas.
Why This Camera Matters
Traditional multi-camera panoramic deployments require geometric stitching, overlapping fields of view, and synchronization complexity. The QNF-C9010V eliminates those tradeoffs: a single outdoor IP camera covers what would typically require three to four overlapping units. This reduces installation labor, simplifies cable runs, lowers power consumption, and removes the blind spots and distortion artifacts inherent in stitched arrays. For warehouse perimeters, parking facilities, and industrial sites where a single vantage point can oversee large areas, this is a significant operational advantage.
The 12MP fisheye sensor paired with H.265 compression cuts storage bandwidth by roughly 40–60% compared to H.264 on the same resolution—a real factor when recording 24/7 across a multi-camera deployment. H.264 and MJPEG codecs are also supported if you need backward compatibility or specific codec-based analytics.
Key Features
- 185° panoramic field of view: Eliminates blind spots in a single installation and reduces the need for pan-tilt repositioning or overlapping multi-camera coverage.
- 12MP fisheye sensor at 3008 × 3008 resolution, 20 fps: Delivers forensic-grade image quality for evidence preservation and attribute-based search—essential for high-security perimeter and facility monitoring.
- Fixed 1.76 mm focal length, F1.8 aperture: Optimized for wide-area capture; the wide aperture collects more light in low-illumination outdoor conditions, reducing reliance on IR and improving color rendition during twilight hours.
- H.265, H.264, and MJPEG codec support: H.265 reduces storage overhead significantly on 24/7 recordings; H.264 and MJPEG options ensure compatibility with legacy network video recorders and VMS platforms.
- AI-powered object detection: Embedded analytics classify people, vehicles, and behavioral attributes in real-time, reducing false alerts and accelerating forensic search by indexing events by object type rather than forcing manual review of continuous footage.
- CloudConnector integration: Native support for OnCloud and SightMind cloud platforms simplifies multi-site management and eliminates dependency on on-premises NVR infrastructure for small to mid-sized deployments.
- Outdoor-rated design: Engineered for unattended exterior mounting across industrial, logistics, and municipal environments.
Integration & Deployment
The QNF-C9010V integrates with Hanwha surveillance systems and third-party ONVIF-compatible network video recorders and VMS platforms. CloudConnector support positions this camera for cloud-first architectures where on-premises storage is not required. If you are standardizing on edge-based analytics or require local PoE-powered recording, the camera outputs standard RJ-45 IP streams compatible with most enterprise video management software.
This is a fixed-lens camera—there is no optical zoom, motorized focus, or lens adjustment. Field of view is predetermined by the 1.76 mm focal length. If you need adjustable coverage or pan-tilt functionality, consider a PTZ model from the Hanwha lineup instead. The 185° panoramic design is optimal when a single, stationary wide-area view meets your coverage requirement.
Applications
- Perimeter security for large outdoor facilities, campuses, and industrial complexes
- Parking lot and open-area surveillance
- Transportation and logistics terminals
- Warehouse exterior and loading dock monitoring
- Smart city and municipal surveillance infrastructure
- High-security outdoor environments requiring forensic-grade evidence capture
When to Choose a Different Model
If your deployment requires optical zoom, pan-tilt repositioning, or a narrower field of view optimized for distant targets (e.g., perimeter fence line monitoring at 100+ meters), evaluate a PTZ camera variant within the Hanwha family. If you need infrared illumination beyond passive ambient light collection, confirm IR range specifications in the camera's datasheet. If your facility requires submersible or fully potted construction (IP67/IP68 immersion rating rather than IP66 splash-proof design), discuss specialized variants with your systems integrator.
Frequently Asked Questions
Q: Does the QNF-C9010V support PoE power?
A: Yes. The camera draws power via standard PoE (IEEE 802.3af), eliminating the need for separate power supplies and simplifying outdoor cable runs. Confirm your switch's PoE budget for multi-camera deployments.
Q: Can I integrate the QNF-C9010V with my existing Milestone or Axis-based VMS?
A: The QNF-C9010V is ONVIF-compliant and integrates with third-party VMS platforms that support ONVIF Profile S. Check with your VMS vendor for certified driver support and any analytics-specific integration limitations.
Q: Is there a narrow-field or mid-range fisheye variant available if 185° is too wide for my use case?
A: The QNF-C9010V is fixed at 185°. If you need a narrower field of view or adjustable coverage, a traditional fixed-lens outdoor camera or PTZ model may be more suitable—consult your integrator for alternatives within the Hanwha catalog.
Q: How does H.265 compression impact bandwidth and storage on a 24/7 recording setup?
A: H.265 reduces bitrate by roughly 40–60% compared to H.264 at equivalent resolution and quality. For a 12MP camera recording 24/7, this can reduce storage cost significantly. However, ensure your NVR or cloud platform supports H.265 decoding and playback before standardizing on this codec.
Q: What is the minimum illumination the QNF-C9010V requires for color video?
A: Refer to the manufacturer's detailed specifications. The F1.8 aperture provides good light collection in twilight and low-ambient outdoor conditions, but color performance in very dim lighting depends on scene-specific factors. Contact the manufacturer or your integrator for typical operating lux requirements.
Q: Does the QNF-C9010V support remote firmware updates or secure boot?
A: Refer to the manufacturer's security datasheet for cybersecurity features, including firmware signing, secure boot, and remote management capabilities. These details are essential for critical infrastructure and NDAA-compliance scenarios.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The QNF-C9010V represents a significant operational advantage over traditional multi-camera panoramic solutions. By delivering full 185° coverage from a single mounting point, it reduces installation labor, simplifies cable management, and eliminates the geometric distortion and overlap challenges inherent in stitched multi-camera arrays. The 12MP sensor provides genuine forensic resolution—not interpolated—essential for facial recognition and vehicle plate identification at distance.
Technical Highlights:
- 12MP (3008 × 3008) at 20 fps: Genuine forensic-grade detail ensures that a single fisheye installation captures the image quality typically required for evidentiary use and attribute-based search without multi-camera stacking complexity.
- H.265 codec efficiency: Reduces bandwidth and storage requirements by 40–60% compared to H.264 at equivalent resolution—meaningful on 24/7 multi-camera recorders where storage cost is cumulative.
- F1.8 aperture with fixed 1.76 mm focal length: Wide aperture maximizes light collection in outdoor twilight and low-ambient conditions, improving color rendition and reducing IR dependency compared to smaller apertures at the same focal length.
- Embedded AI analytics: Real-time people, vehicle, and attribute classification accelerates forensic search by index rather than manual clip review—essential in high-volume surveillance where false alerts consume security staff time.
Deployment Considerations:
- Fixed lens, no zoom: The 185° field of view is static. If your deployment requires adjustable coverage, distant target focus, or pan-tilt repositioning, a traditional fixed-lens or PTZ camera is a better fit.
- Fish-eye distortion is intrinsic: 185° panoramic coverage introduces natural barrel distortion—standard for fisheye optics. If your use case requires undistorted imagery or forensic line-measurement, this may not be the right model.
- PoE power budget: Confirm your switch supports the QNF-C9010V's power draw across your full camera count. A single camera typically draws under 15W via 802.3af, but multi-camera sites should budget PoE capacity carefully.
The QNF-C9010V is positioned for large outdoor facilities—campuses, warehouse perimeters, parking lots, logistics terminals—where a single wide-area vantage point and forensic-grade resolution justify the fixed panoramic design. It is not a zoom camera and not a replacement for PTZ or narrow-field coverage; it is a purpose-built tool for monitoring wide exterior areas without multi-camera installation overhead.
