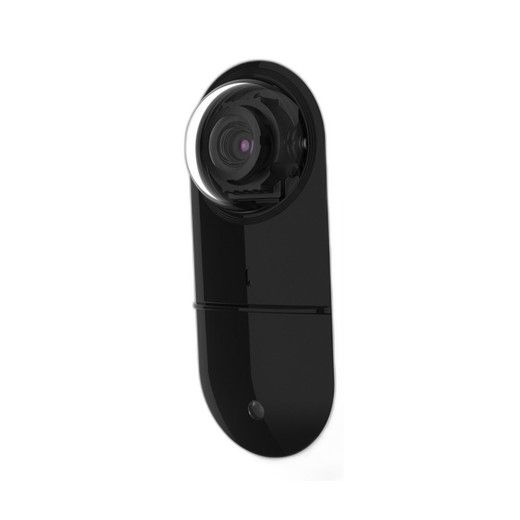

Hanwha TNV-C8011RW 5MP AI IR Panoramic Network Camera

Hanwha TNV-C8011RW 5MP AI IR Panoramic Network Camera

Overview

The TNV-C8011RW is a wall-mount panoramic IP camera built to replace multiple traditional fixed cameras in open spaces where a single wide-angle view eliminates blind spots. With a 175° horizontal field of view and 125° vertical coverage, this Hanwha IP camera captures expansive retail aisles, warehouse floors, parking facilities, and airport terminals with 5MP clarity — all from one mounting location. The 1.6mm F1.6 fixed lens, combined with 15m IR illumination and 120dB wide dynamic range, delivers consistent performance from dawn through pitch-black conditions without requiring separate lighting infrastructure.

Key Features

• 5MP 2592×1944 CMOS sensor at 30 fps: Full resolution capture eliminates the need for pan-tilt-zoom repositioning — the entire scene is already recorded in frame. For a 100-meter warehouse aisle, this means you avoid the cost and complexity of multiple cameras or motorized lens mechanisms.
• 175° horizontal / 125° vertical panoramic field of view: Single wall or ceiling mount covers what would normally require 3–5 traditional fixed cameras. Reduces infrastructure cost, cabling runs, and NVR channel licensing proportionally.
• 1.6mm F1.6 fixed focal length with superior low-light sensitivity: Captures color images at 0.038 Lux and black-and-white at 0.0038 Lux — meaningful when dealing with dimly lit warehouse racks or retail stockrooms where lighting budgets are tight. Electronic shutter from 1/5 to 1/12,000 seconds adapts exposure across dynamic lighting without frame rate loss.
• 15m IR illumination with 850nm long-life LED: Passive IR extends night-vision range without external floodlights. On-camera IR preserves the panoramic advantage — no separate IR projectors to mount and aim.
• 120dB Wide Dynamic Range (WDR): Handles high-contrast scenes like storefronts with bright windows behind a dark interior, or warehouse bays with sunlight streaming through loading doors. Maintains face and object detail across the entire tonal range.
• H.265 compression with WiseStream adaptive bitrate: H.265 typically cuts storage volume 40–60% versus H.264 on equivalent quality targets. Across 24/7 recording and multi-camera deployments, this directly reduces NVR/SAN capacity and bandwidth consumption — measurable operational savings.
• AI-powered on-camera analytics: Object classification (person, face, vehicle) with attribute recognition (vehicle type), motion detection across 8 polygonal zones, virtual line crossing, and intrusion detection. Business intelligence includes people counting, vehicle counting, queue management, and heatmapping. Reduces server-side processing load and enables forensic queries on-edge without re-scanning raw footage.
• Advanced noise reduction: SSNR V and WiseNR II: AI-based algorithms suppress background noise while preserving object sharpness — important for maintaining readable facial features or license plates across low-light and night transitions.
• Privacy masking with 32 quadrangle zones: Obscure sensitive areas (restrooms, executive offices, medical imaging) without hardware reconfiguration. GDPR and other privacy frameworks benefit from on-camera enforcement.
• IP66 / IK10 environmental ratings: IP66 means rain, dust, and spray don't threaten operation — suitable for covered loading bays or outdoor vestibules. IK10 withstands impacts (3 Joules) from accidental bumps or intentional tampering. Aluminum hard-coated dome resists scratches from debris and weathering.
• Operating temperature −30°C to +55°C (−22°F to +131°F): Handles extreme outdoor and unheated indoor environments. Cold-weather logistics facilities and southern sun-exposed facades stay within spec.
• 802.1X network authentication, HTTPS/SRTP encryption, signed firmware, secure boot, and SD card encryption: End-to-end security prevents unauthorized access and firmware tampering. Critical for financial institutions, healthcare, and sensitive logistics.
• microSD card slot supporting up to 256GB edge storage: Local recording for critical events or failover when network is unavailable. Encrypted partitions isolate sensitive recordings.
• ONVIF Profile compliance with HTTP API: Integrates with NVRs and VMS platforms already deployed in your infrastructure. No vendor lock-in to proprietary systems.
• Up to 20 simultaneous unicast connections: Multiple analysts, control rooms, or branch offices can stream simultaneously without compromising image quality or frame rate.

Integration & Compatibility

The TNV-C8011RW supports ONVIF Profile S, T, and G, making it compatible with Milestone XProtect, Genetec, Hanwha SmartCCTV, and other standards-compliant VMS platforms. Edge metadata (object detection events, line crossing) can be exported via ONVIF or HTTP webhooks for integration into business intelligence dashboards or security event management systems. Power consumption averages well within standard 802.3af PoE budgets, so no high-power PoE+ infrastructure is required — existing PoE switches will suffice for most deployments.

When to Choose a Different Model

If your application requires 360° coverage or remote pan-tilt-zoom capability, consider a PTZ camera from the Hanwha lineup instead. For applications where sub-5MP resolution is acceptable and cost minimization is the sole driver, a lower-megapixel fixed camera may reduce upfront expense, though the panoramic coverage advantage will be lost. If you need multi-sensor (fisheye-based) cylindrical panoramic output, Hanwha offers variants; the TNV-C8011RW is strictly a single-sensor panoramic design.

Common Applications

• Retail: Wide aisle views for customer behavior and merchandise monitoring with minimal camera footprint.
• Warehousing & Logistics: Comprehensive floor overview, pallet tracking, and worker safety — single mount covers entire bay or mezzanine section.
• Parking Facilities: Multi-level parking structures benefit from reduced blind spots; license plate capture remains viable across 5MP resolution.
• Transportation Hubs: Airport terminals, bus stations, and train platforms deploy fewer cameras for equivalent FOV coverage.
• Financial Institutions: Bank lobbies and teller areas receive full panoramic context without specialized multi-camera arrays.
• Border & Perimeter Security: Long fence lines or perimeter checkpoints reduce camera count and associated mounting/cabling labor.
• Queue Management & Crowd Analytics: People counting and queue-length metrics inform staffing decisions in real time.

Frequently Asked Questions

Q: Does the TNV-C8011RW support integration with Milestone XProtect or other third-party VMS platforms?

A: Yes. The camera conforms to ONVIF Profiles S, T, and G, ensuring compatibility with Milestone, Genetec, Hanwha SmartCCTV, and other standards-compliant systems. Metadata (analytics events) can be exported via ONVIF and HTTP API for integration into your existing infrastructure.

Q: What is the maximum IR range, and does it cover the full panoramic field of view?

A: The camera delivers 15m (49 ft) of effective IR illumination. Because the lens is fixed at 1.6mm with a wide field of view, IR coverage extends across the panoramic FOV but naturally falls off at the extreme edges due to lens angle. For maximum range, position the camera to prioritize the area requiring nighttime surveillance.

Q: How much storage would a 24/7 recording deployment consume, and does H.265 provide a meaningful savings over H.264?

A: At 5MP, 30 fps, and H.265 compression, typical bitrate ranges from 4–8 Mbps depending on scene complexity and WiseStream settings. H.265 reduces file size 40–60% versus H.264 at equivalent quality, meaning a 100-camera 24/7 installation could save 10–20 TB per month in storage. Over a 12-month retention period, this directly reduces NVR/SAN capacity and cost.

Q: Is the TNV-C8011RW rated for outdoor mounting, and what environmental protections does it offer?

A: Yes. The camera carries IP66 and IK10 ratings — IP66 means complete dust ingress protection and ability to withstand high-pressure water jets. IK10 provides impact protection equivalent to 20 Joules (a significant blow). The aluminum hard-coated dome resists UV degradation and scratching. Operating temperature range is −30°C to +55°C (−22°F to +131°F), suitable for unheated outdoor and indoor facilities.

Q: What are the power requirements, and will the camera operate on standard PoE?

A: The TNV-C8011RW draws power via 802.3af PoE and requires under 13W typical operation. Standard PoE switches support this without strain, eliminating the need for high-power PoE+ infrastructure in most deployments.

Q: Can I use local edge storage for backup recording or failover?

A: Yes. The camera includes a microSD card slot supporting up to 256GB capacity. Recordings are encrypted and stored locally, providing failover capability when network connectivity is interrupted or for preserving high-priority forensic events without relying solely on centralized NVR storage.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TNV-C8011RW represents a genuine architectural shift in how you approach wide-area surveillance. Rather than clustering 3–5 traditional fixed cameras to cover a warehouse floor or retail space, you mount one panoramic unit and let the 175° horizontal FOV do the heavy lifting. The 5MP sensor captures enough detail that you're not sacrificing recognition capability — faces and vehicle plates remain legible — while the panoramic geometry eliminates the geometric distortion and coverage gaps you'd face with multiple overlapping cameras.

Technical Highlights:

• 175° horizontal field of view: Eliminates blind spots in open layouts. A single TNV-C8011RW installation replaces what typically costs 3–5 camera licenses, cabling runs, and NVR channels. The math is compelling for large retail or warehouse footprints where coverage is the constraint, not resolution.
• H.265 compression at 5MP, 30 fps: Bitrate typically hovers 4–8 Mbps depending on scene complexity. H.265 cuts storage versus H.264 by 40–60%, so a 100-unit 24/7 deployment saves roughly 10–20 TB monthly — thousands of dollars in SAN capacity annually. WiseStream adaptive bitrate further optimizes for static zones (warehouse racks) versus dynamic zones (aisle traffic).
• 15m IR with 850nm LED: On-board IR eliminates the need for external floodlights in parking facilities or nighttime warehouse operations. Panoramic geometry means the LED doesn't need aiming precision — the wide lens distributes IR across the entire FOV.
• 0.038 Lux (color) / 0.0038 Lux (B&W) sensitivity with F1.6 aperture: Dim retail stockrooms, underground parking, and unlit warehouse sections remain visible without supplemental lighting. Electronic shutter range (1/5 to 1/12,000 second) handles harsh transitions from sunlit loading doors to interior shadows.
• IP66 / IK10 ratings: Outdoor loading bays and weathered exterior vestibules are fair game. The hard-coated aluminum dome won't degrade under UV or scratching from cleaning/maintenance.

Deployment Considerations:

• Panoramic distortion at frame edges: The 1.6mm fixed lens exhibits barrel distortion at extreme edges. For forensic facial recognition, position subjects toward the camera centerline. For overview surveillance (people counting, perimeter monitoring), edge distortion is negligible.
• IR falloff at distance and extreme angles: 15m range is nominal center-beam performance. Corners and edges of the panoramic FOV see reduced IR intensity. If you require uniform nighttime coverage across the entire 175° span, mount the camera at moderate height and angle to balance coverage.
• Fixed lens — no zoom capability: The 1.6mm lens is permanent. If future requirements demand closer inspection of a specific zone (like a transaction counter), you'll need a secondary fixed or PTZ camera. Plan mounting location with this limitation in mind.
• Analytics quality depends on scene complexity: AI object detection (person/vehicle/face classification) performs best on clear, well-lit subjects. Heavy occlusion (crowded checkout lines, stacked pallets) may produce false positives or missed detections. Test the camera in your target environment before committing to analytics-driven alerting.

The TNV-C8011RW excels in logistics, retail, and transportation hubs where single-mount, wide-angle overview is the primary goal. If your deployment requires forensic facial detail, multi-zone zoom capability, or 360° coverage, look to alternative form factors. But for reducing infrastructure cost and cabling complexity while maintaining solid recognition fidelity across one expansive space, this panoramic approach is hard to beat.
