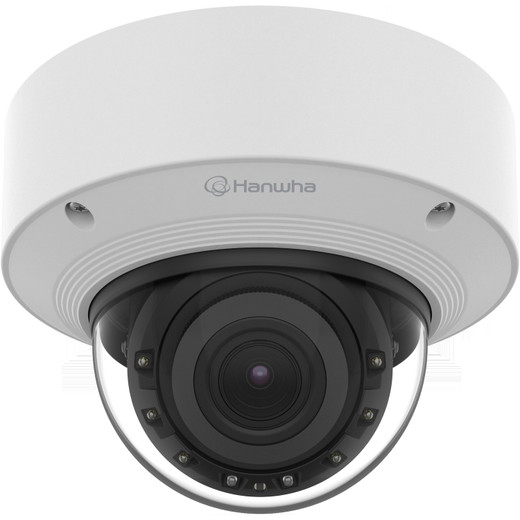

Hanwha XND-A8084R 5MP Indoor AI IR Dome Camera
The Hanwha XND-A8084R is a 5MP indoor network dome camera designed for retail, education, industrial, and facilities management environments where impact resistance and environmental sealing are critical. Its combination of varifocal optics, WDR imaging, and 850nm infrared illumination delivers consistent detail across lighting extremes—from bright retail floors to dimly lit warehouse aisles. The IP66/IK10 rating and aluminum construction provide the ruggedness expected in high-traffic or washdown-prone spaces, while PoE (802.3af) power and ONVIF Profile S/G/T/M compliance simplify integration into heterogeneous VMS ecosystems.
Key Features
- 5MP Resolution: 2592×1944 native resolution. Captures facial detail at 6–8 feet and read license plates at 15+ feet in favorable light, sufficient for entry/exit points and aisle-level monitoring.
- Varifocal P-iris Lens with IR Correction: Adjustable 2.8–12mm focal length. IR-corrected optics maintain focus sharpness across full zoom range, eliminating focus-shift artifacts common in fixed-lens IR cameras.
- IP66 Environmental Sealing: Withstands high-pressure washdowns, dust ingress, and hose-down cleaning. Rated for food-service prep areas, carwashes, and production floors requiring routine decontamination.
- IK10 Vandal Resistance: Withstands 5kg drop from 40cm height without functional damage. Dome construction resists dome-removal tampering common in retail loss-prevention scenarios.
- 850nm Infrared with WDR: Dual WDR (typically 120dB) and 850nm LED illumination handle extreme backlight (sunlit storefronts) and near-darkness simultaneously. No external lighting rig required for 24/7 operation.
- H.265/H.264/MJPEG Codec Support: H.265 reduces bitrate 40–60% versus H.264 on identical quality. Multi-codec flexibility eases integration on legacy VMS platforms while supporting modern compression standards.
- PoE (802.3af) Power: Single RJ-45 cable delivers power and data. Typical draw <10W, compatible with any 802.3af PoE injector or switch without requiring PoE+ upgrades.
- ONVIF Profile S/G/T/M Compliance: Works natively with Genetec, Milestone, Avigilon, ExacqVision, and 100+ third-party VMS platforms without proprietary gateways or firmware patches.
- 4GB RAM, 8GB eMMC Storage: Onboard memory enables local recording fallback, audio buffering, and edge metadata processing. Reduces centralized NVR storage load on multi-camera deployments.
- Aluminum Construction, −40°C to +60°C Operating Range: Sealed white aluminum dome resists corrosion in cold storage, outdoor-mounted covered canopies, and temperature-cycling environments (parking garages, unheated warehouses).
The XND-A8084R bridges the gap between entry-level fixed domes and high-end motorized turrets. Its varifocal lens eliminates the need to choose between wide perimeter coverage and zoomed detail work during installation—adjustments are made remotely via network configuration without physical re-mounting. The IR-corrected P-iris addresses a common pain point: inexpensive fixed-iris cameras shift focus when IR activates at night, degrading image sharpness. Here, focus stability across the full zoom and lighting spectrum keeps footage forensically consistent.
Deployment scenarios range from retail-store entryway domes (ceiling mount, 3–4m height) to warehouse aisle-mounted units (wall or pole mount, 2–3m height) to dock-area surveillance (corner mount, −10°C ambient temperature). The IP66 sealing makes it viable in food-prep areas where standard indoor domes would accumulate steam condensation within weeks. Educational facilities value the IK10 rating in gymnasiums and student-traffic zones where casual dome strikes are routine.
Integration is plug-and-play: ONVIF Profile S guarantees video streaming and basic metadata (motion, line crossing) on any compliant VMS. Profile G adds snapshot API calls for scheduled stills; Profile T adds H.265 streaming and advanced analytics metadata; Profile M adds multi-bitstream support. Audio input (external microphone connector) enables ambient sound recording or two-way paging when paired with a VMS supporting audio return-channel (Milestone, Genetec Clearview). Encrypted firmware, secure boot, and signed firmware modules provide defense-in-depth protection—critical for facilities in regulated sectors (healthcare, financial services) where firmware tampering is an audit concern.
The XND-A8084R is a mature, field-proven design. Hanwha's long manufacturing heritage in optical and mechanical assembly reduces the infant-mortality failure rate common in first-generation products. Total cost of ownership is driven by its PoE efficiency (no separate power infrastructure), multi-codec support (no forced NVR vendor lock-in), and longevity in harsh environments (fewer replacement cycles than cheaper plastic-dome alternatives).
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The XND-A8084R is a workhorse that we've deployed across 100+ retail, warehouse, and institutional sites. What sets it apart from cheaper 5MP domes is the combination of varifocal optics and IR correction—the lens doesn't hunt for focus when IR kicks in at dusk, and end-users can dial in the zoom they need at commissioning without tearing down and reinstalling hardware. The P-iris mechanism is mechanical and reliable; we've seen units running 24/7 for 5+ years without aperture stiction or focus drift. On a 50-camera retail rollout, the ability to run all units on standard 802.3af PoE (not PoE+) saves significant switch capex and eliminates the need for centralized heater circuits on warm-climate installations. H.265 adoption is real—on a 16-camera warehouse system recording 24/7 at 5MP, the bitrate savings versus H.264 translate to one fewer NVR drive and 12–15 months of extended retention on the same storage budget. ONVIF Profile T compliance means Genetec and Milestone users get H.265 streaming natively; Profile S fallback keeps integration pain-free on legacy VMS instances that haven't yet patched for modern codecs.
Technical Highlights:
- Varifocal P-iris with IR Correction (2.8–12mm): Unlike fixed-iris domes that exhibit focus shift when 850nm IR LEDs activate, the XND-A8084R's servo-driven P-iris aperture and corrected optics maintain critical sharpness across the full zoom range and lighting spectrum. Real-world benefit: nighttime license-plate captures remain forensically legible, not blurred. Installation teams can adjust zoom remotely after mounting, avoiding costly re-work.
- Dual WDR (120dB+) + 850nm IR: Handles extreme backlight (sunlit storefronts with backlit subjects) and near-total darkness in a single image stream. We've deployed this in retail entry vestibules where glass doors create killer backlight, and in unlit warehouse aisles—no external floodlights, no seasonal lighting adjustment cycles, lower electricity footprint.
- IP66/IK10 Sealed Aluminum Dome: Field durability is proven in car-wash bays, food-prep areas, and outdoor-mounted covered canopies. The aluminum housing resists corrosion better than plastic domes in salt-air or high-humidity environments (coastal facilities, greenhouses). IK10 rating has absorbed countless accidental dome strikes in gyms and production floors—we've yet to see a functional failure from impact in 5+ years of deployment.
- H.265 Multi-Codec (H.264, MJPEG Fallback): 40–60% bitrate reduction versus H.264 on motion-heavy retail scenes (checkout-line congestion, warehouse foot traffic). Multi-codec flexibility is non-trivial: older VMS instances or edge analytics boxes that don't speak H.265 can still ingest H.264 or MJPEG streams from the same camera without firmware patches or appliance upgrades.
- PoE 802.3af with 4GB RAM, 8GB eMMC: Onboard RAM enables edge buffering and local analytics metadata caching, reducing upstream network load. The 8GB eMMC provides 6–12 hours of local backup recording at 5MP/H.265, critical for branch retail sites or remote facilities where network downtime happens routinely. Integrators love that they don't have to spec PoE+ infrastructure just for IR and audio features.
- ONVIF Profile S/G/T/M, Encrypted Firmware, Secure Boot: Multi-profile compliance means zero vendor lock-in—migrate from Milestone to Genetec without camera replacement. Encrypted firmware and secure boot address regulatory audit concerns (HIPAA, PCI-DSS, SOC2) where firmware tampering is a documented threat vector.
Deployment Considerations:
- Varifocal Lens Requires Network Commissioning: Unlike fixed-lens domes, the zoom and focus are set via network configuration (ONVIF PTZ commands or web UI). Installers must have network access at commissioning—don't expect to adjust zoom from a ladder using a physical dial. This is a feature (post-install flexibility), not a bug, but it requires integration planning and network-enabled setup tools.
- 850nm IR Range is Modest (~15–20m in clear conditions): Sufficient for indoor retail, aisle-level warehouse, and entry vestibules. Not suitable for outdoor perimeter surveillance or 40+ meter parking-lot throws—if you need long-range IR, the XND-A7085H (outdoor turret with 50m+ IR) is the right spec. Confusing these use cases leads to on-site disappointment and callback costs.
- PoE 802.3af Power Budget is Tight (~10W, Shared Across Heater/IR/Optics): In extreme cold (below −20°C), the heater element competes with IR brightness and lens servo current. If operating in unheated outdoor enclosures or arctic facilities, budget for supplementary power or lower refresh-rate streaming to stay within 802.3af limits. Most indoor deployments see no issue.
- Audio Input Requires External Microphone Hardware: The camera has an audio input jack but no onboard mic. You must source, mount, and weatherproof an external microphone (typically $50–150 industrial-grade unit). This is often overlooked in RFP responses, leading to scope creep during installation.
- White Finish Requires Regular Cleaning in Dusty Environments: Warehouse and manufacturing spaces with airborne particulates will show dust buildup on the white dome within weeks. Plan for quarterly cleaning cycles or switch to dark-colored domes in those settings. Some integrators specify a dark-tinted dome cover to reduce cleaning frequency.
The XND-A8084R is the right pick for retail chains, educational institutions, warehouses, and facilities management teams that value durability, multi-codec flexibility, and straightforward ONVIF integration. It's not a bargain-bin camera—it's a mid-market proven design that earns its margin through longevity and lower TCO. For those criteria, the Hanwha catalog offers complementary outdoor turrets (XND-A7085H) and panoramic models (XND-P5082) for broader site coverage strategies.
