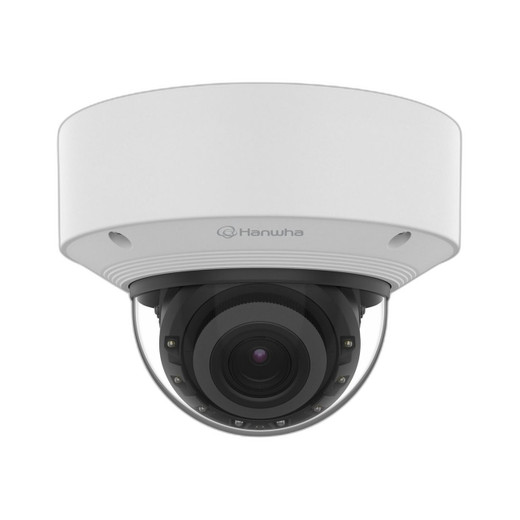

Hanwha XNV-A8084R 5MP Outdoor AI IR Dome Camera
The XNV-A8084R is a purpose-built outdoor surveillance dome for high-impact environments where environmental durability and edge-based intelligence are non-negotiable. Purpose-engineered for perimeter security, transportation hubs, loading docks, and critical infrastructure access points, this IP camera combines 5MP resolution with AI-powered analytics and extreme physical resilience in a single compact form factor.
Key Features
- 5MP Resolution (2592 x 1944) with 1/1.8" CMOS Sensor — Delivers the pixel density required for facial recognition and object identification at 30–50 meters. Larger sensor sizes reduce noise in low-light scenes, a critical factor when IR illumination is the primary light source during night operations.
- 3.2–10.2mm Motorized Varifocal Lens — Eliminates the need to physically adjust the camera post-installation. Wide-angle settings (3.2mm) capture broad entry points and perimeter zones; tele settings (10.2mm) focus on vehicle license plates, facial details, and corridor-specific activity. Reduces site visits and minimizes downtime during commissioning.
- 40-Meter IR Range with Built-In Infrared Illumination — Complete darkness operation without external lighting infrastructure. 40 meters covers typical perimeter fences, parking lot access points, and mid-range dock areas. Avoids the cost and complexity of external IR flood lights or supplemental lighting rigs.
- AI Object Detection, People Counting, Vehicle Counting, Heatmap Generation — On-camera analytics shift processing load from the NVR to the edge device, reducing server overhead and enabling real-time alerts without centralized processing. Object detection identifies humans and vehicles distinctly; people and vehicle counters feed occupancy dashboards and traffic flow analysis; heatmaps reveal high-activity zones for operational planning.
- 120dB Wide Dynamic Range (WDR) — Maintains shadow and highlight detail in backlit scenes—critical for outdoor perimeter monitoring where bright skies and dark building entrances coexist in the same frame. Prevents blown-out skies or crushed entry details that would otherwise obscure identifying information.
- IP66 and IK10+ Environmental Ratings — IP66 handles direct rain and dust ingress without protective housings. IK10+ withstands vandal impacts (up to 20 joules) without lens damage or housing compromise. Eliminates the need for cages, shields, or reinforced enclosures in high-risk sites.
- PoE (Class 3) with Ethernet, Wi-Fi, and USB Connectivity — Operates on standard 802.3af PoE without separate power supplies, simplifying installation and reducing power budget strain on your network infrastructure. Wi-Fi option supports temporary or mobile deployments where Ethernet isn't feasible.
- H.265 and H.264 Codec Support — H.265 reduces storage requirements roughly 40–60% compared to H.264 depending on scene complexity and bitrate—a real factor when recording 24/7 across multiple cameras. H.264 backward compatibility ensures integration with legacy NVR platforms that don't yet support H.265.
- HTTPS Encryption and ONVIF Compliance — Secure communication protects credentials and video streams from packet sniffing. ONVIF conformance ensures interoperability with third-party VMS platforms, avoiding vendor lock-in and enabling mixed-brand deployments.
- microSD Local Storage Option — Provides on-device backup during network interruptions or NVR failures. Supports investigation workflows when centralized recording is temporarily unavailable.
Integration and Deployment Context
The XNV-A8084R integrates into network video recorder architectures via standard Ethernet or Wi-Fi; ONVIF Profile S compliance ensures seamless compatibility with major VMS platforms. The motorized lens reduces commissioning time compared to fixed-lens alternatives, particularly when covering variable distances (e.g., fence lines at 20 meters, gate access at 50 meters). Edge-based AI analytics eliminate the need for server-side processing licenses, lowering total cost of ownership on large-scale deployments. For camera selection involving mixed indoor/outdoor environments, pair this model with indoor compact domes or recessed options in controlled areas.
When to Choose a Different Model
If full submersion or water jet operation (e.g., car wash, high-pressure spray environments) is required, specify an IP67 or IP68 variant from the XNV family. For fixed-lens simplicity or cost-sensitive perimeter applications where motorized zoom is unnecessary, consider fixed varifocal alternatives. If indoor-only deployments are your primary target, select a compact indoor dome with smaller form factor and lighter mounting requirements.
Frequently Asked Questions
Q: What is the maximum effective range for facial identification on the XNV-A8084R?
A: The 5MP sensor and 1/1.8" CMOS deliver reliable facial detail up to approximately 30–40 meters under good lighting. At maximum tele (10.2mm) with IR assist, effective range depends on ambient light; IR illumination at 40 meters provides recognizable face geometry but not high-confidence feature detail. For positive facial recognition beyond 40 meters, pair with a higher-megapixel model or increase camera density.
Q: Does the XNV-A8084R work with Milestone XProtect or other third-party VMS platforms?
A: Yes. ONVIF Profile S compliance ensures compatibility with Milestone, Genetec, March Networks, and other ONVIF-conformant management systems. Verify your VMS supports H.265 codec if you plan to use it; some legacy platforms require H.264.
Q: What is the power consumption of the XNV-A8084R?
A: The camera operates on standard 802.3af PoE (Class 3), drawing sufficient power for all features including IR illumination and motorized lens. Exact wattage is specified in the manufacturer datasheet; typical consumption is under 15W, meaning it won't exceed single-port PoE budgets on modern switches.
Q: Can I use the XNV-A8084R in submersion environments or prolonged water jet scenarios?
A: No. IP66 rating covers rain and dust but not full submersion or high-pressure spray. For car wash or marine environments requiring continuous water contact, specify an IP67 or IP68 rated camera.
Q: What storage capacity does the microSD card support?
A: The camera supports microSD cards; maximum capacity depends on the card manufacturer. Check compatibility with your microSD card specifications for retention time calculations based on your chosen resolution and codec.
Q: Is the XNV-A8084R compliant with NDAA Section 889 or similar procurement restrictions?
A: Hanwha is a South Korean manufacturer and does not carry NDAA compliance certifications. If your deployment requires NDAA Section 889 compliance or exclusion from restricted-source procurement lists, select cameras from approved U.S. or allied manufacturers as defined by your procurement policy.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The XNV-A8084R strikes a practical balance between resolution, durability, and edge intelligence. The 1/1.8" CMOS sensor gives you pixel density that matters at 30–50 meters—important when you're relying on the camera to capture details, not just motion. The IK10+ rating and IP66 seal mean you can deploy this in rough perimeter sites without cages or protective housings, which saves installation labor and keeps sightlines clear. The motorized varifocal lens is a genuine time-saver during commissioning; you won't be adjusting physical lens rings or swapping optics post-install.
Technical Highlights:
- 120dB WDR + 40m IR Range: The WDR holds detail in backlighting scenarios (bright sky, dark entry), while the 40-meter IR reach covers standard perimeter and mid-range access points without external lighting infrastructure. On longer perimeters (80+ meters), you'll need secondary cameras or supplemental IR light.
- H.265 Codec Support: H.265 compression cuts storage footprint roughly 40–60% versus H.264, a meaningful saving when you're recording 24/7 on multi-camera systems. Verify your NVR or VMS supports H.265 before relying on it; older platforms may require H.264 fallback.
- Edge AI Analytics (Object, People, Vehicle Counting, Heatmap): On-device processing eliminates the need for server-side analytics licenses. Feeds real-time alerts to operations dashboards and occupancy tracking without centralizing load on the NVR.
Deployment Considerations:
- Perimeter Density: At 40 meters, the XNV-A8084R covers a single fence line or access point effectively. For continuous perimeter monitoring of long boundaries, plan for overlapping cameras or secondary units.
- Motorized Lens Trade-off: Flexibility comes with motor wear over time. Avoid frequent re-focusing during operation; set the lens once and leave it. If your site requires frequent zoom adjustments, a fixed focal length may be more durable long-term.
- ONVIF Compatibility Check: Verify your VMS supports ONVIF Profile S and H.265 before ordering. Legacy platforms may force H.264 operation, reducing storage efficiency gains.
Deploy the XNV-A8084R where IK10+ vandal resistance and complete darkness IR operation are operational requirements—perimeter fence lines, gate access points, and outdoor loading docks. The combination of edge analytics and motorized zoom reduces post-install adjustment overhead on large rollouts, a real factor when scaling across warehouse or transportation hub sites.
