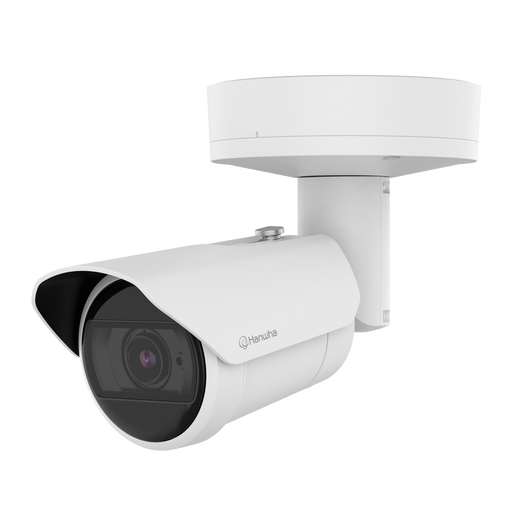

Hanwha XNO-A8084R 5MP Outdoor AI IR Bullet Camera

The Hanwha XNO-A8084R is a purpose-built outdoor surveillance bullet engineered for high-security perimeter, vehicle, and critical infrastructure deployments. It combines 5MP resolution (2592 × 1944 pixels) with integrated AI analytics, extreme weatherproofing, and motorized optics—eliminating the need for field refocus and reducing deployment labor.

Key Features

• 5MP Resolution (2592 × 1944): Captures sufficient detail for forensic review and mid-distance object classification. Balances image clarity against storage overhead—more granular than 2MP, lighter on bandwidth than 8MP when paired with H.265 encoding.
• Motorized Varifocal Lens (3.3–9.3 mm): Provides 99° to 31° horizontal field of view without manual adjustment. Eliminates repeat site visits for focus tuning, reducing total cost of ownership on large deployments. Remote zoom and focus via network interface.
• AI Analytics on Camera: Detects and classifies people, faces, vehicles, and license plates with attribute recognition. Processing happens locally—no separate edge device or cloud service required. Reduces false alerts compared to simple motion detection.
• Built-in IR Illumination (40-meter range): Integrated 850nm infrared extends usable coverage to roughly 130 feet in complete darkness. Adequate for typical perimeter fencing, parking lots, and mid-distance access points. Not a substitute for high-range spotlight IR on 200+ foot deployments.
• 120 dB Extreme WDR: Recovers detail in high-contrast scenes—bright windows against dark interiors, sunlit pavement against deep shadows. Critical for outdoor day/night transitions where standard cameras wash out or crush tones.
• IP66 & NEMA 4X Rated: Withstands direct rain and dust ingress. Suitable for exposed installations without conduit or protective shroud. IP66 does not guarantee full submersion—install above standing water.
• IK10 Vandal Resistance: Housing absorbs heavy physical impact (up to 50 joules). Common in high-traffic retail, transit, and industrial environments where theft or deliberate damage is a concern.
• H.265 + H.264 + MJPEG Compression: H.265 cuts storage and bandwidth roughly 40–60% versus H.264 at equivalent quality. Meaningful when running 24/7 recording across 10+ cameras. Fallback to H.264 for legacy NVR or VMS compatibility.
• PoE Class 3 (95W max): Single Ethernet cable delivers power and data. Does not require separate 12VDC power supply. Standard PoE+ (802.3at, 30W) switch ports may fall short; verify your switch supports High Power PoE or PoE++ for the motorized lens and IR illuminator.
• F1.3 Aperture + WiseNR II Noise Reduction: Low-light sensitivity without excessive grain. Gyro-based stabilization reduces vibration artifacts on fence-mounted or moving structures.
• Day/Night Switching: Automatic transition from color (day) to monochrome (night). Monochrome mode improves low-light sensitivity by ~30% but removes color information.
• microSD Card Slot: Local backup storage independent of network recorder. Useful for edge retention on disconnected sites or burst recording during critical events.
• HTTPS & ONVIF Compliance: Encrypted data transmission and platform-agnostic integration with network video recorders and VMS platforms (Milestone Xprotect, Axis Camera Station, etc.).

Integration & Compatibility

The XNO-A8084R streams ONVIF-compliant video, supporting both proprietary Hanwha surveillance systems and third-party NVRs. Wi-Fi connectivity (auxiliary to Ethernet) enables temporary wireless fallback or supplemental bandwidth, though primary operation over wired PoE is recommended for 24/7 reliability. Confirm your PoE switch supplies at least 95W per port or upgrade to PoE++ switches capable of Class 4+ power delivery. The motorized lens and IR draw the bulk of that budget.

When considering outdoor IP cameras, the XNO-A8084R's AI detection reduces manual review time compared to motion-only alternatives. License plate recognition works reliably at 15–25 feet with proper angle and lighting; expect variable accuracy beyond 40 feet.

Ideal Deployment Scenarios

• Perimeter & Fence-line Monitoring: IK10 vandal rating and IP66 durability suit exposed environments. 40m IR covers typical property boundaries.
• Parking Lot & Vehicle Tracking: 5MP + AI vehicle detection and license plate recognition. Motorized lens adjusts coverage from tight entry gate to wide lot sweep.
• Retail & Commercial Exterior: Weather resistance and daytime color, nighttime monochrome capture suit storefronts and loading docks.
• Critical Infrastructure: IK10 anti-tampering and AI analytics support unattended assets, substations, and access gates.
• Access Control Entry Points: Built-in face detection integrates with visitor logs and badge authentication systems.

Frequently Asked Questions

Q: Can I power the XNO-A8084R from a standard PoE injector or 802.3af switch port?

A: The XNO-A8084R requires PoE Class 3 (up to 95W). Standard 802.3af delivers only 15W and 802.3at (PoE+) provides 30W—both insufficient for the motorized lens and IR illuminator. You need a High Power PoE injector, PoE++ switch, or dedicated power supply rated for 95W minimum.

Q: What is the actual field of view with the motorized lens?

A: The 3.3–9.3 mm varifocal range yields 99° horizontal FOV at 3.3 mm (wide) and 31° at 9.3 mm (tight telephoto). A 99° wide shot covers roughly 300 feet at 150 feet distance; 31° tight shot is suited for license plate or face detail at 30–50 feet.

Q: How far does the IR reach, and can it illuminate a 200-foot perimeter?

A: The built-in IR ranges 40 meters (131 feet). Adequate for typical perimeter fencing and mid-distance monitoring. Beyond 150 feet, image quality drops significantly. For 200+ foot coverage, consider a separate IR spotlight or a higher-range thermal camera.

Q: Does the XNO-A8084R work with my existing Milestone Xprotect NVR?

A: Yes. The XNO-A8084R is ONVIF-compliant and supports standard video streaming protocols. Add it to Xprotect as an IP camera via ONVIF profile S or T. AI analytics run on-camera; the NVR stores and indexes the video stream. Verify your NVR version supports ONVIF if it's older than 5 years.

Q: What compression codec should I use to minimize storage?

A: H.265 is the most efficient, reducing storage roughly 40–60% versus H.264 at the same quality level. Use H.265 if your NVR and playback clients support it (most modern systems do). Fall back to H.264 if you have legacy recorders or third-party software that doesn't decode H.265.

Q: Is the XNO-A8084R suitable for direct exposure to salt spray or heavy industrial pollution?

A: IP66 protects against rain and dust but not chemical corrosion. Salt-spray and industrial-chemical environments may degrade optics and housing over time. If salt spray is a risk, mount the camera under a protective hood or in a slightly recessed location, and plan for more frequent lens cleaning.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNO-A8084R strikes a practical balance between AI capability and operational simplicity. The motorized varifocal lens eliminates repeated site visits for focus adjustment, reducing deployment labor and total cost of ownership. The 40-meter IR range—modest compared to some competitors—is adequate for typical perimeter and mid-distance monitoring scenarios up to roughly 130 feet. This is not a limitation; it's a realistic match for most commercial outdoor installations.

Technical Highlights:

• PoE Class 3 (95W) Power Budget: The motorized lens and IR illuminator consume the bulk of the draw. Verify your infrastructure before deployment—standard PoE+ (30W) switches will starve this camera. A single undersized port cascades into focus hunting, dim IR, or intermittent resets.
• H.265 Codec Efficiency: Deploying H.265 across 10+ cameras recording 24/7 shaves 40–60% off storage costs. On a 30-day retention policy for a 16-camera site, that's a meaningful reduction in hard drive count and power consumption.
• F1.3 Aperture + WiseNR II: Low-light performance without excessive noise is a strength in industrial and transit settings where ambient light is inconsistent. Gyro stabilization mitigates vibration artifacts common on fence-line or riser-mounted installations.
• IK10 Vandal Rating + IP66: This combination is the gold standard for exposed, high-traffic outdoor sites. Direct rain poses no risk; standing water or full submersion does. Install above flood-line or in a slightly recessed mounting to extend service life.

Deployment Considerations:

• Power infrastructure is non-negotiable. Budget for PoE++ switches or High Power injectors upfront. Cutting corners here will cause focus and IR performance issues in the field.
• The 40-meter IR is sufficient for typical property perimeters and parking lots but not for expansive grounds or 200+ foot deployments. Pair with external IR spotlights for extended coverage or consider a thermal variant for long-range intrusion detection.
• AI license plate recognition works reliably at 15–25 feet with proper angle. Beyond 40 feet, license plate legibility degrades—plan your mounting height and angle accordingly.
• H.265 playback compatibility varies; confirm your NVR, VMS, and client software support H.265 decoding before rolling it out fleet-wide.

The XNO-A8084R is a strong choice for warehouse perimeters, retail exteriors, parking lot entry/exit, and critical infrastructure access gates where AI object detection, motorized flexibility, and weather resistance are non-negotiable. It will not replace high-range thermal or high-speed PTZ for expansive grounds or extended surveillance distances. Size your PoE infrastructure accordingly and you'll have a reliable, low-maintenance outdoor platform.

Key Specifications:
Color: White
